Products description

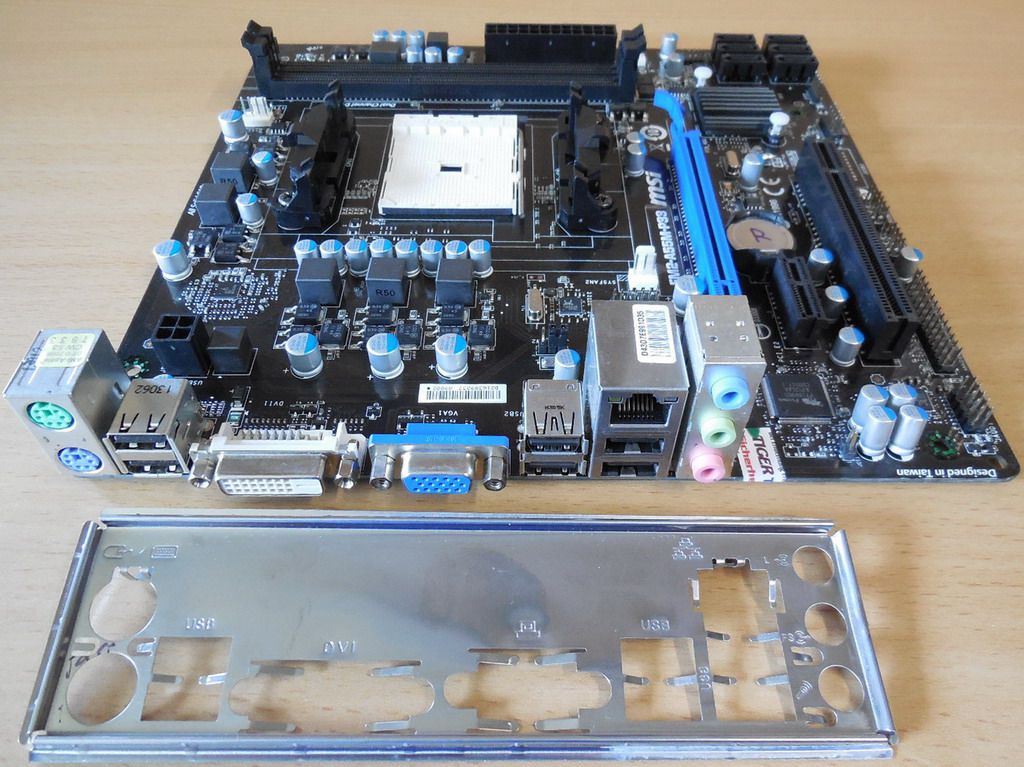

MSI FM2-A55M-P33 MS-7721 Ver 3.2 Mainboard + Blende AMD A55 Sockel FM2 DDR3 VGA DVI
Technische Daten
Prozessor / CPU
AMD A10 / A8 / A6 / A4-series for FM2 package
Please refer to CPU Support list on the MSI Website for compatible CPU; the above description is for reference only.
Chipsatz
AMD A55 Chipset
Arbeitsspeicher
Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866/2133* (*OC) DRAM, 16GB Max.
Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Erweiterungsteckplätze
1 x PCI
1 x PCIe 2.0 x1
1 x PCIe 2.0 x16
Speichersystem
6 x SATA 3Gb/s ports by AMD® A55
SATA1~6 ports support storage and data transfers at up to 3Gb/s and RAID 0 / 1 / 10 / JBOD modes
LAN
Realtek® 8111E Gigabit LAN Controller
Supports 10Mb/s, 100Mb/s and 1000Mb/s Data Transfer Rate
Audio
Realtek® ALC887 8-Kanal High Definition Audio CODEC
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
USB
10 x USB 2.0 ports (6 an der Gehäuserückseite, 4 intern)
Anschlüsse (Rückseite)
1 x PS/2 Tastatur
1 x PS/2 Maus
6 x USB 2.0
1 x D-Sub
1 x DVI-D (supporting Dual-link DVI)
3 x Audio-Anschlüsse
1 x LAN (RJ45) Schnittstelle
This platform supports dual-display function (DVI+VGA)
The graphic output can only work with CPUs with GPUs core inside
Interne Anschlüsse
1 x 24-Pin ATX Anschluss
1 x 4-pin ATX 12V Power connector
1 x Prozessorlüfteranschluss (4-pin)
1 x Systemlüfteranschluss (3-pin)
1 x Systemlüfteranschluss (4-pin)
6 x SATA 3Gb/s-Schnittstellen
1 x TPM Module connector
1 x Parallel port connector
1 x COM port connector
2 x USB 2.0-Anschlüsse unterstützen zusätzlich 4 USB 2.0-Schnittstellen
1 x Front Audio panel connector
1 x System panel connector
1 x Chassis Intrusion connector
1 x JSPI1 connector
1 x USB Power Jumper
1 x Clear CMOS Jumper
Dimension & Mounting
micro-ATX Formfaktor ca. 22.6 cm x 21.6 cm; 6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
