Products description

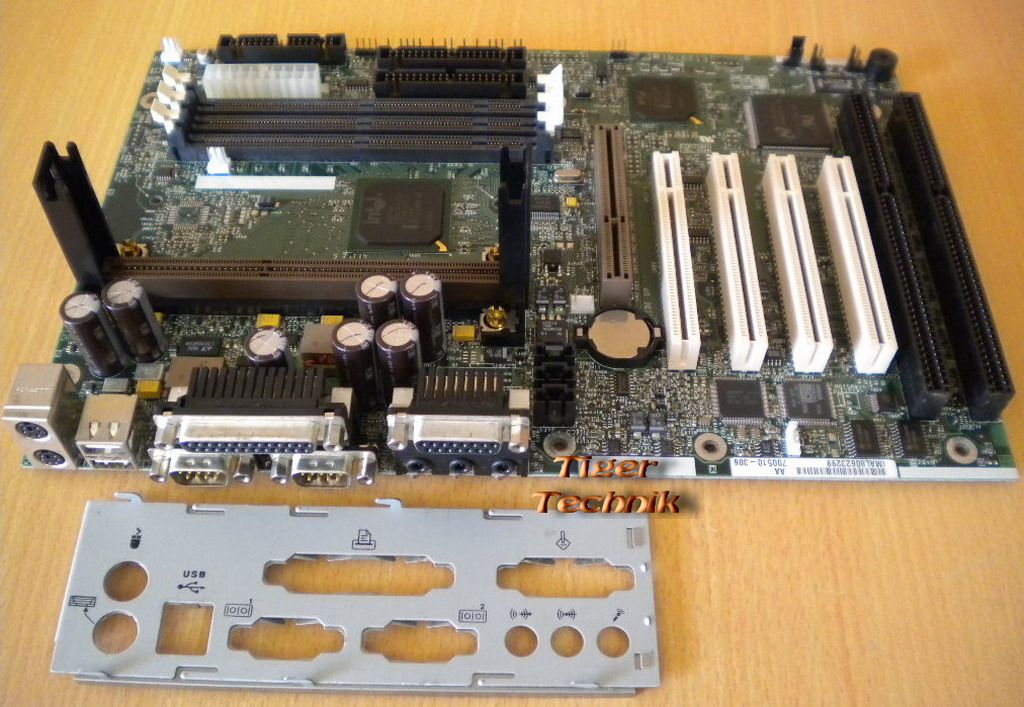

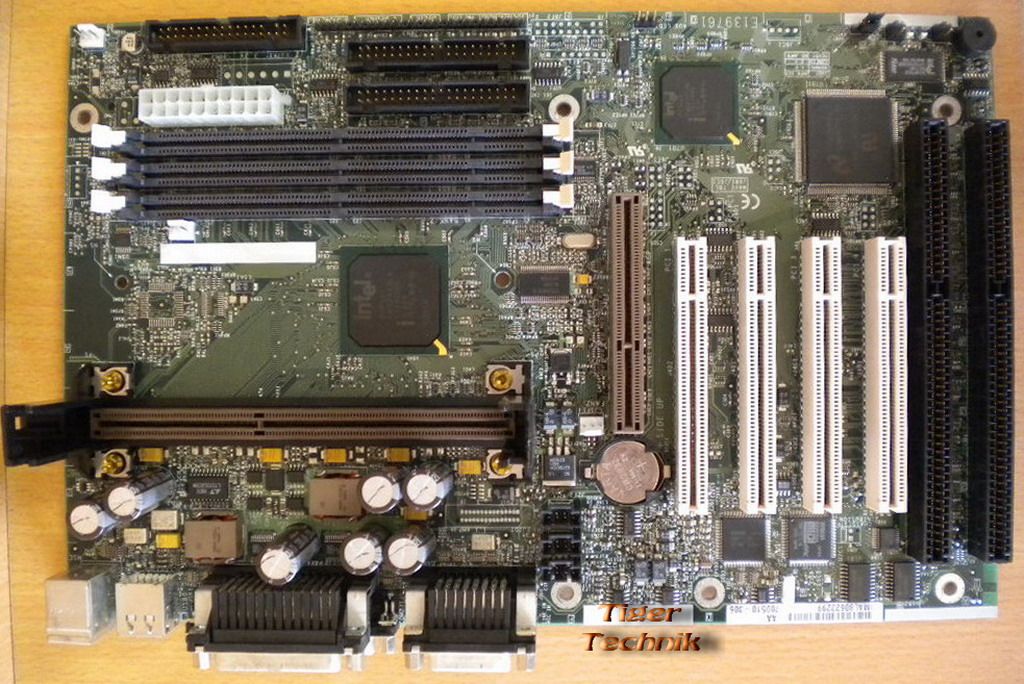

Dell 700510-306 PB 673633-003 Mainboard + Blende
Technische Daten
Form factor
• ATX form factor of 12 x 7.75 inches
Processor
• Single Pentium II processor
• 66 MHz bus speed
• Supports all Pentium II processor speeds, voltages, and bus frequencies
• 512 KB second-level cache on the substrate in the Single Edge Contact (S.E.C.) cartridge
• Slot 1 connector
Main memory
• Three 168-pin DIMM sockets
• Supports up to 384 MB of synchronous DRAM (SDRAM) memory
• ECC or non-ECC memory
Chipset
Intel 440LX AGPset and PCI/IDE Interface
• Intel 82443LX PCI/A.G.P. controller (PAC)
Integrated PCI bus mastering controller
Integrated Accelerated Graphics Port (A.G.P.) controller
• Intel 82371AB PCI/ISA/IDE Xcelerator (PIIX4)
Supports up to four IDE drives or devices
Multifunction PCI-to-ISA bridge
USB and DMA controllers
Two fast IDE interfaces
Power management logic
Real-time clock
I/O features
• National PC97307 Super I/O controller
Integrates standard I/O functions: floppy-drive interface, one multimode parallel port, two FIFO serial ports, keyboard and mouse controller, IrDA†-compatible interface
• Two Universal Serial Bus (USB) interfaces
Five usable expansion slots:
• One ISA slot
• Three PCI slots
• One shared PCI/ISA slot
Other features
• Intel/Phoenix BIOS
• Onboard A.G.P. connector
• Plug and Play compatible
• Single-jumper configuration
• Advanced Power Management (APM)
• Wake on Ring header
The following are manufacturing options:
• Audio subsystem Yamaha
Yamaha OPL3-SA codec audio component
Yamaha OPL4-ML wavetable synthesizer component
Back panel audio connectors: Line In, Line Out, Mic In
MIDI game port
Line In connector
CD-ROM audio connector
• Management extension hardware
• Wake on LAN† header
• Chassis security header
• Telephony connector
• SCSI hard disk LED header
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
