Products description

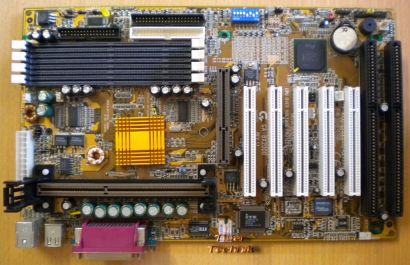

Gigabyte GA-BX2000 Rev 1.1 Mainboard + Blende
Technische Daten
Prozessor
Intel® Pentium® II / III and Celeron™ Processor 233 to 550 MHz
Slot 1 for future Processor support
66/75*/83*/100/112*/124*/133* MHz System Bus
Auto Detect CPU Voltage
Clock multiplier 3.0/3.5 ...... /9.5
Chipsatz
Intel® 440 BX AGPset
iTE 8671 I/Oset
Winbond 83782 Health chip
Arbeitsspeicher
8MB to 1GB DRAM size
4 x 100MHz 168-pin 3.3v DIMM sockets support
Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
Supports ECC Type DIMM Module (72bits)
Erweiterungssteckplätze
1 x AGP Slot Supports 66/133 MHz speeds
5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
2 x ISA Slot
I/O
2 x Ultra DMA 33 Bus Master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
2 x USB ports on board
IrDA TX / RX Header ready
H/W Überwachung
Flexible Temperature sensor under processor Heatsink Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
System Health status detect & report by BIOS, LDCM®, SIV.
Hardware detect +/- 5v, +/-12v, CPU Voltage & CMOS battery Status
BIOS
Includes DualBIOS™ Technology; 2Mbit Flash RAM
AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & report system health status
Form Factor
ATX , 4 layer PCB (30.7*19.2cm)
Andere Funktionen
Suspend-To-RAM (STR)
Includes Wake-On-LAN Header (WOL) & SB-LINK™ connector
On board PC speaker; Supports Internal / External modem wake on
3 Fan Power & Speed Detection Connectors; Case open Detection
Poly fuse for keyboard overcurrent protection
Stromversorgung
ATX Power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
Power-off by Windows 98 Shut down & Switch
AC Recovery ON/OFF control
Stop CPU Fan during entering suspend mode
3 Level ACPI LED Support
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
