Products description

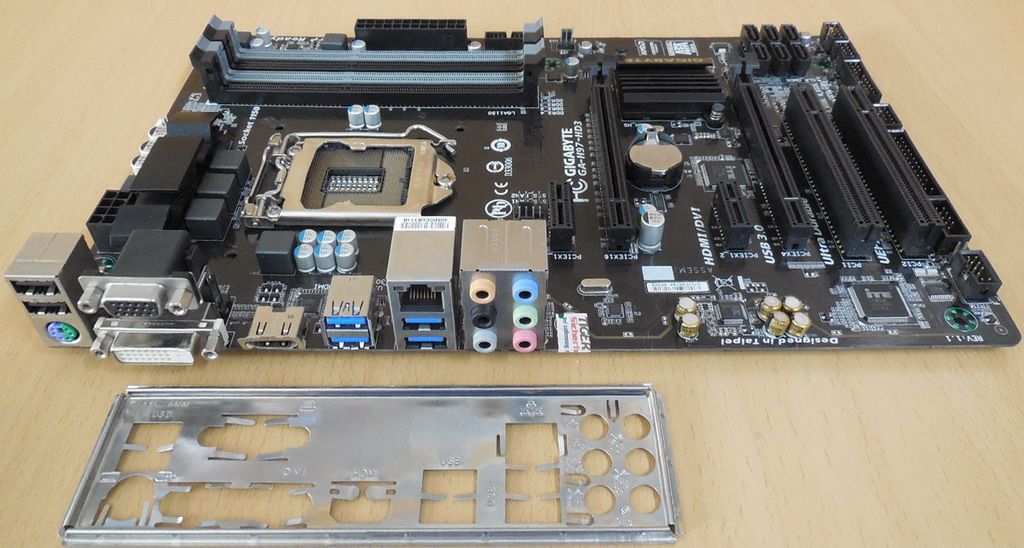

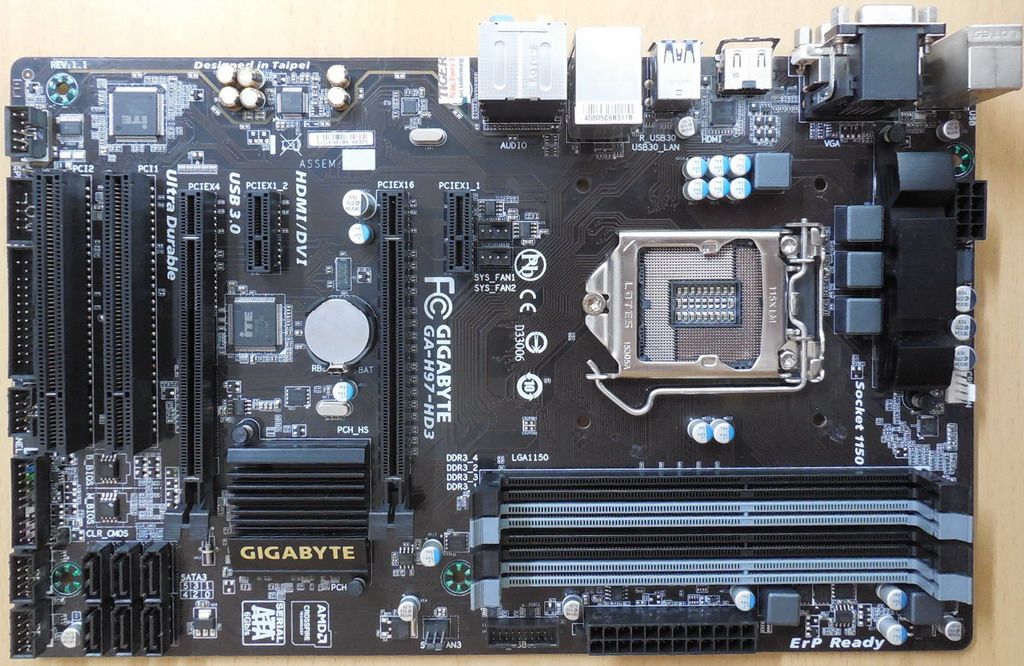

Gigabyte GA-H97-HD3 Rev 1.1 Mainboard + Blende Intel H97 Sockel 1150 SATA III USB3.0 DDR3
Technische Daten
Prozessor
Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipsatz
Intel® H97 Express Chipset
Arbeitsspeicher
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR3 1600 / 1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Onboard Grafik
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz (does not support D-Sub connection by adapter.)
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
*Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 3.0 standard)
1 x PCI Express x16 slot, running at x4 (conforms to PCI Express 2.0 standard)
2 x PCI Express x1 slots (conforms to PCI Express 2.0 standard)
2 x PCI slots
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4.
Multi-Graphics Technology
Support for 2-Way AMD CrossFire™ Technology
Storage Interface
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x 4-Pin CPU fan header
2 x 4-Pin System fan headers
1 x 3-Pin System fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x LPT parallel port header
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O
iTE® I/O Controller Chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Einzigartige Funktionen
Support for APP Center (may differ by motherboard); @BIOS; EasyTune; EZ Setup; Fast Boot; ON/OFF Charge; Smart TimeLock; Smart Recovery 2; System Information Viewer; USB Blocker; Support for Q-Flash; Support for Smart Switch; Support for Xpress Install
Betriebssystem
Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 19.0cm
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
