Products description

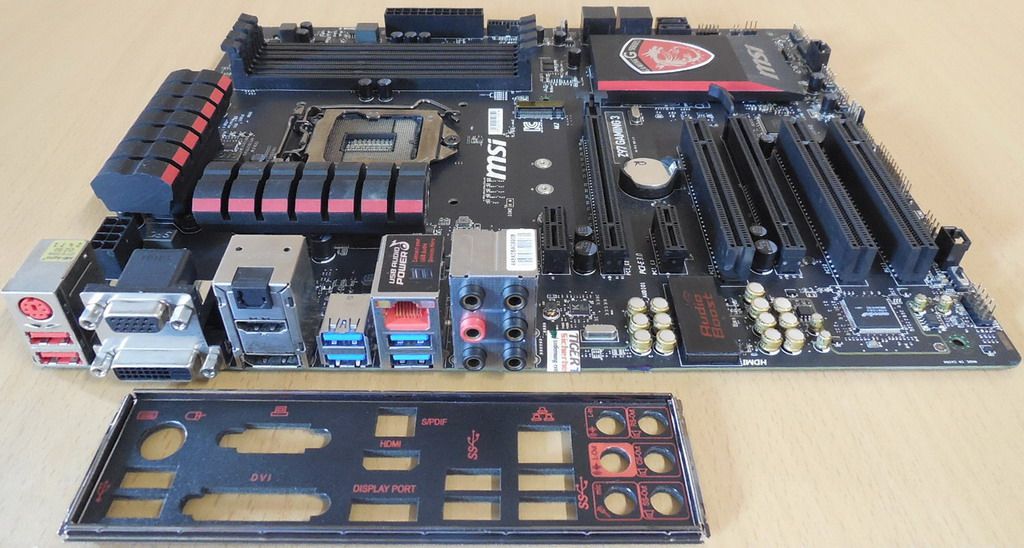

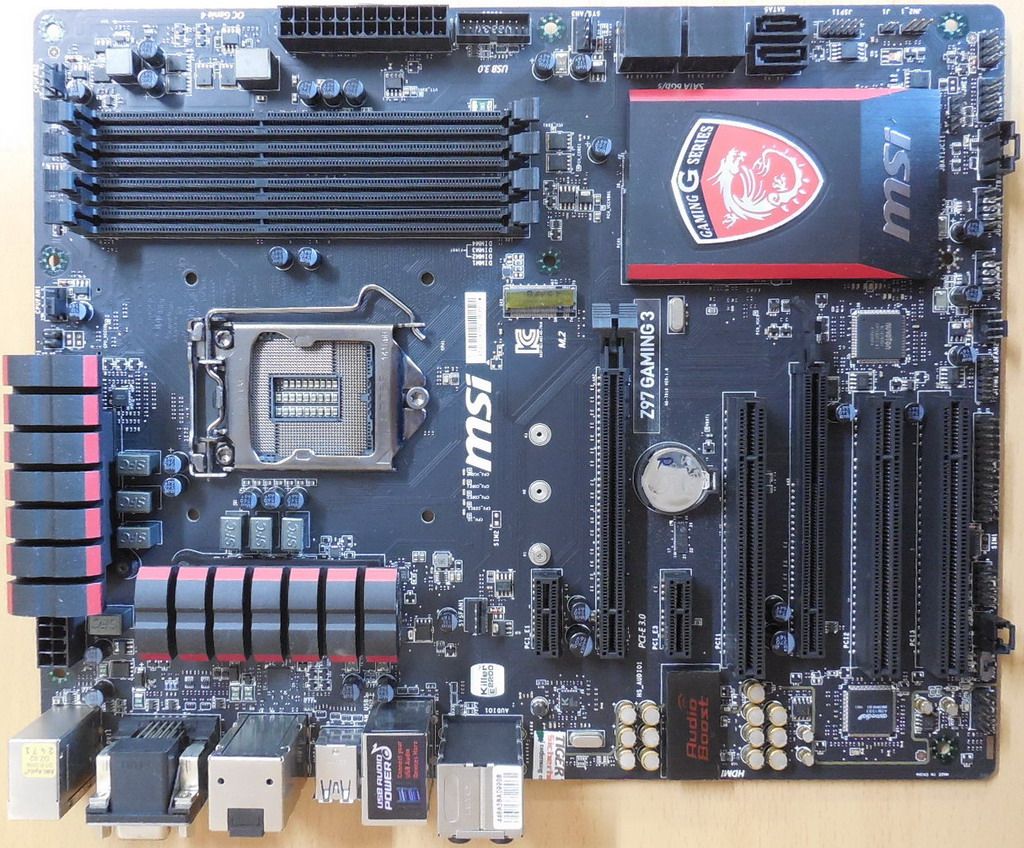

MSI Z97 Gaming 3 MS-7918 Ver 1.0 Mainboard + Blende Intel Sockel 1150 m.2
Technische Daten
Prozessor
Supports 4th Generation Intel® Core™ i3 / i5 / i7 Processors, Intel® Pentium® and Celeron® Processors for Socket LGA1150
Please refer to the MSI Website for CPU Support List
Chipsatz
Intel® Z97 Express Chipset
Arbeitsspeicher
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066 MHz memory modules
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC, un-buffered memory
Please refer to the MSI Website for Memory Qualified Vendor List
Audio
Realtek® ALC1150 codec
7.1-channel High Definition Audio
Supports S/PDIF output
LAN
Qualcomm® Atheros Killer E2205 LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCIe 3.0 x16 slot (PCI_E2 @x16)
1 x PCIe 2.0 x16 slot (PCI_E4 @x4)
2 x PCIe 2.0 x1 slots (will be unavailable when installing an expansion card in the PCI_E4 slot)
3 x PCI slots
Multi-Graphics Technology
Supports 2-Way AMD CrossFire™ Technology (Windows 7 / 8 / 8.1)
Storage Interface
6 x SATA 6Gb/s ports (SATA1~6)
1 x M.2 port (SATA5 and SATA6 will be unavailable when installing a module in the M.2 port)
M.2 port supports M.2 SATA 6Gb/s module
M.2 port supports M.2 PCIe module up to 10Gb/s speed (only supports UEFI option ROM, NOT support legacy option ROM)
M.2 port supports 4.2cm/ 6cm/ 8cm length module
Supports RAID 0, RAID1, RAID 5 and RAID 10 (M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.)
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology and Intel® Smart Connect Technology (only with Intel Core processors on Windows 7 / 8 / 8.1)
USB
6 USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 connector
6 x SATA 6Gb/s connectors
2 x 4-Pin CPU fan connectors
3 x 4-Pin system fan connectors
1 x JFP1 connector
1 x JFP2 connector
1 x Front Panel Audio connector
1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x Serial port connector
1 x Parallel port connector
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) connector
1 x JSPI1 connector
1 x J1 connector
1 x JM2_1 connector
1 x JTBT1 connector
1 x Chassis Intrusion connector
1 x Direct audio power connector
1 x Audio power switch
Rückseite I/O Panel
1 x PS/2 keyboard/mouse combo port
1 x Optical S/PDIF Out connector
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port, supporting a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,1920x1200@60Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,1920x1200@60Hz
4 x USB 3.0 ports (blau)
2 x USB 2.0 ports (rot)
1 x LAN RJ-45 port
6 x OFC Audio jacks
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension & Mounting
12 in. x 9.6 in. (30.5 cm x 24.4 cm); ATX Form Factor; 9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
