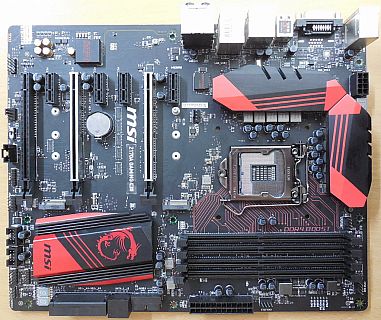

MSI Z170A GAMING M5 MS-7977 Ver 1.1 Mainboard + Blende Intel Z170 Sockel 1151 DDR4 PCIe USB3.1
Technische Daten
CPU
Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset
Intel® Z170 Chipset
Main Memory
4 x DDR4 memory slots, support up to 64GB non-ECC, un-buffered memory
Supports DDR4 3600(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2600(OC) / 2400 / 2133 MHz
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Please refer to the MSI Website for more information on compatible memory
Slots
3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/ x8/x1 modes)
4 x PCIe 3.0 x1 slots
Multi-GPU
Supports 3-Way AMD® CrossFire™ Technology
Supports 2-Way NVIDIA® SLI™ Technology
Onboard Graphics
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz (6th Gen CPU), 2560x1600@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Storage
6 x SATA 6Gb/s ports (4 ports reserved for SATA Express port, M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs. Please refer to page 34 of the manual for M.2 slots with examples of various combination possibilities.)
2 x M.2 slots
Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card
2 x SATAe ports (PCIe 3.0 x2, SATAe port is backward compatible with SATA.)
Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID1 for M.2 PCIe storage devices (M.2 PCIe RAID volume can be created with UEFI BIOS)
USB
by ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
by Intel® Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
Audio
Realtek® ALC1150 7.1-Channel High Definition Audio Codec
Supports S/PDIF output
LAN
1 x Killer™ E2400 Gigabit LAN controller
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x SATAe connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x 4-pin CPU fan connector
1 x 2-Digit Debug Code LED
3 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x Slow mode switch
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x JTBT1 connector
1 x JSPI1 connector
Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo port
2 x USB 2.0 Type-A ports
1 x DVI-D port
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
4 x USB 3.1 Gen1 Type-A ports
1 x HDMI™ port
1 x LAN (RJ45) port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connector
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting
9 mounting holes
Lieferumfang

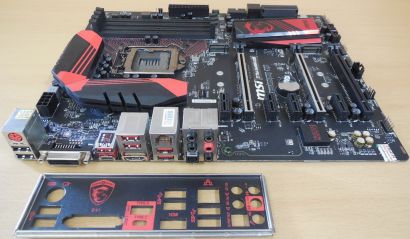

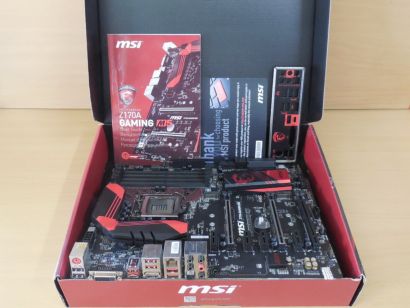

Das Mainboard inkl. Blende und Handbuch in OVP * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
