Gigabyte GA-Z68XP-UD3P Rev 1.0 Mainboard Intel Z68 Sockel 1155 DDR3 PCIe HDMI USB3.0
Technische Daten
Prozessor
Support for Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
*Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.
Chipsatz
Intel® Z68 Express Chipset
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
*Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Grafik
Integrated Graphics Processor with 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater; S/PDIF Out
LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (PCIEX16)
*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
*The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3 x PCI Express x1 slots
2 x PCI slots
All PCI Express slots conform to PCI Express 2.0 standard.
Multi-Graphics Technology
Support for AMD CrossFireX™/NVIDIA SLI technology
*The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX™/NVIDIA SLI is enabled
Storage Interface
by Chipset:
2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
*When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
by Marvell 88SE9172 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1
USB
by Chipset: Up to 14 USB 2.0/1.1 ports (8 on the back panel, 6 via the USB brackets connected to the internal USB headers)
2 x Etron EJ168 chips: Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)
IEEE 1394
by VIA VT6308 chip: Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x 4-Pin CPU Fan Header
1 x 3-Pin System Fan Header
1 x 4-Pin System Fan Header
1 x 3-Pin Power Fan Header
1 x Front Panel Header
1 x Front Panel Audio Header
1 x S/PDIF Out Header
3 x USB 2.0/1.1 Headers
1 x USB 3.0/2.0 Header
1 x IEEE 1394a Header
1 x Serial Port Header
1 x clearing CMOS jumper
1 x Trusted Platform Module (TPM) Header
Rückseite I/O Panel
1 x PS/2 keyboard/mouse port
1 x Optical S/PDIF Out connector
1 x IEEE 1394 port
1 x HDMI port
8 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O
iTE IT8728 chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Available functions in EasyTune may differ by motherboard model; Dynamic Energy Saver™ 2; Smart 6™; Auto Green; eXtreme Hard Drive (X.H.D) ; ON/OFF Charge; Cloud OC; 3TB+ Unlock; TouchBIOS; Q-Share
Betriebssystem
Support for Microsoft® Windows® 8/7/Vista/XP
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

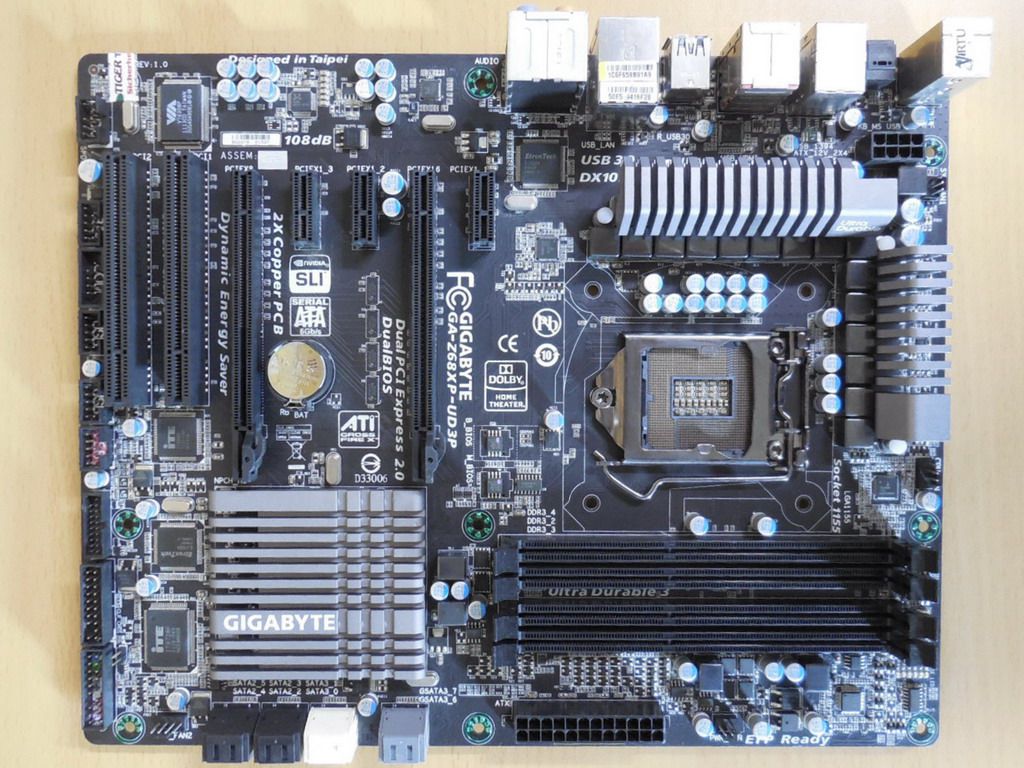

Abbildung ähnlich
