Products description

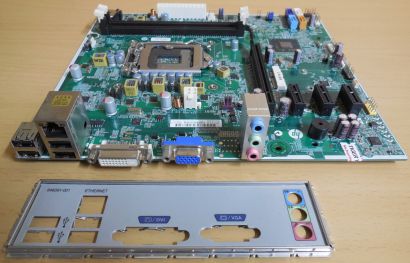

HP Pro 3500 MT H-Cupertino-H61-µATX:3.10 Mainboard + Blende 696234-001 Rev. 0K Sockel 1155
Technische Daten
Hersteller Foxconn für HP (Hewlett Packard)
Model H-Cupertino-H61-uATX Rev 3.10 AS# 696234-001 Rev. 0K SP# 701413-001
Geeignet für HP Pro 3500 MT oder baugleich
CPU-Unterstützung Core i3-2xxx/T; Core i3-2xxx; Core i5-2xxx; Core i7-2xxx mit max. 65W TDP
Sockel Intel 1155
Chipset Intel H61
FSB 5 GT/s (DMI bus)
RAM 2x 240-pin DDR3 DIMM Sockets (1.5V), Single Channel memory architecture; DDR3 1333(PC3-10600)/1066(PC3-8500) SDRAM, non-ECC unbuffered; max. 8 GB Hauptspeicher
Video Intel Graphics Media Accelerator HD Integrated graphics; Use of both the DVI and the VGA ports at the same time is supported. Either integrated graphics or the PCI Express x16 slot are usable at one time; they are not usable concurrently.
LAN Realtek RTL8171E GbE 10/100/1000 Mb/s Netzwerkverbindung
Sound Realtek ALC656 High Definition 5.1 channel Audio Codec, Audio jack sensing
USB max. 10x USB2.0 (4 extern, 6 intern)
Erweiterungssteckplätze 1x PCIe Mini Card x1; 3x PCIe x1; 1x PCIe x16
Intern Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA2 (3GBit/s) Ports
1 x 4-pin CPU FAN Connector
1 x 3-pin System FAN Connector
1 x BIOS Recovery Connector
1 x One touch reset Connector
1 x One touch recovery Connector
1 x Hood Sense Connector
1 x Flash Override Jumper
1 x CMOS Jumper
1 x Password Jumper
1 x Audio Front Panel Connector
3 x USB2.0 Connectoren (F_USB1 + F_USB2 + F_USB3)
1 x Buzzer
1 x mini LED Connector
1 x mini LED Connector
1 x LPC Debug Connector
1 x SPDIF Out Connector
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Processor Power Supply Connector
Externe Anschlüsse 1x VGA Sub-D; 1x DVI-D, 1x LAN RJ-45, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Microphone
Form Factor uATX 24.4 cm (9.6 in) x 22.0 cm (8.7 in)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
