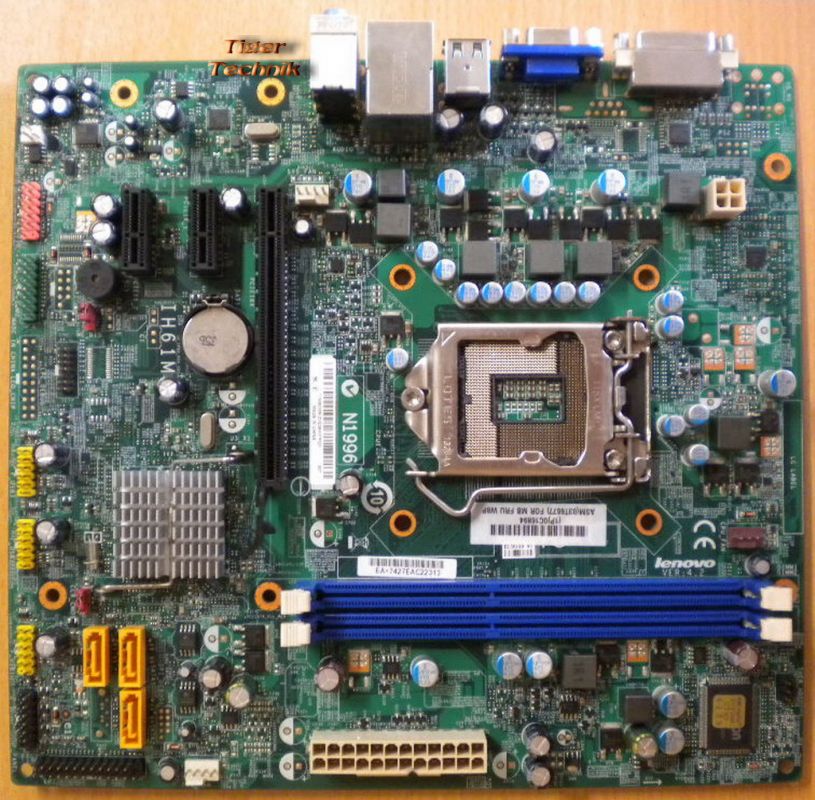

Lenovo 03T6677 IH61M Ver 4.2 Mainboard + Blende Sockel 1155 PCIe SATA DDR3* m615

Lenovo Part 03T6677 IH61M Ver 4.2 Mainboard + Blende

Sockel 1155 PCIe SATA DDR3

Technische Daten

CPU

Intel® Core i3-2100T Processor (3.1 GHz, 3MB Cache)

Intel® Core i5-2500T Processor (2.3GHz, 6MB Cache)

Intel® Core i5-2390T Processor (2.7GHz, 3MB Cache)

Intel® Pentium Processor G850 (2.9 GHz, 3M Cache)

Intel® Pentium Processor G840 (2.8 GHz, 3M Cache)

Intel® Pentium Processor G620 (2.6 GHz, 3M Cache)

3MB to 8MB cache, processor dependent

Chipset

Main Memory

Supports 1GB, 2GB, 3GB, 4GB, 8GB memory

Slots

• One full height PCI Express x 16 slot

• Two full height PCI Express x 16 slot

On-Board SATA

• Serial ATA/ATA II controller integrated

- Up to 1.5Gb/sec transfer rate.

- Up to 3Gb/sec transfer rate.

- Can connect up to 3 Serial ATA drives.

Video

Integrated Graphics Adapter (Intel HD Graphics 2000)

Audio

Integrated Audio

ALC662 chipset

LAN

Realtek RTL8111E Ethernet Controller

10Mbps, 100Mbps, 1000Mbps Data Rates Supported

RJ45 External Connector Type

Power management

Advanced Configuration and Power Interface (ACPI) support

Internal I/O Connectors

- ATX 24-Pin power connector

- 4-pin ATX 12V power connector

- CPU / Power /System fan connectors

- Clear CMOS jumper

- Serial port connector (COM2)

- Parallel port connector (LPT)

- 3 x USB 2.0 connector support additional 6 ports

- Front panel audio connector

- Front panel connectors

- 3 x Serial ATA device connectors

Back Panel I/O Ports

- 1 x DVI

- 1 x VGA (Sub-D)

- 1 x Audio I/O (3 in 1)

- 4 x USB 2.0

- 1 x RJ45 LAN jack

All systems conforms to the following industry standards:

ACPI v3.0, DMI v2.0, IEEE 802.3, JEDEC 240-pin DIMM memory, SmBios v2.6, PCI v2.3, PCIe v1.0, Serial ATA II, PXE v2.1, USB v2.0, AMT7.1

Dimension

Tower (3x3) with Intel H61 Chipset

Lieferumfang

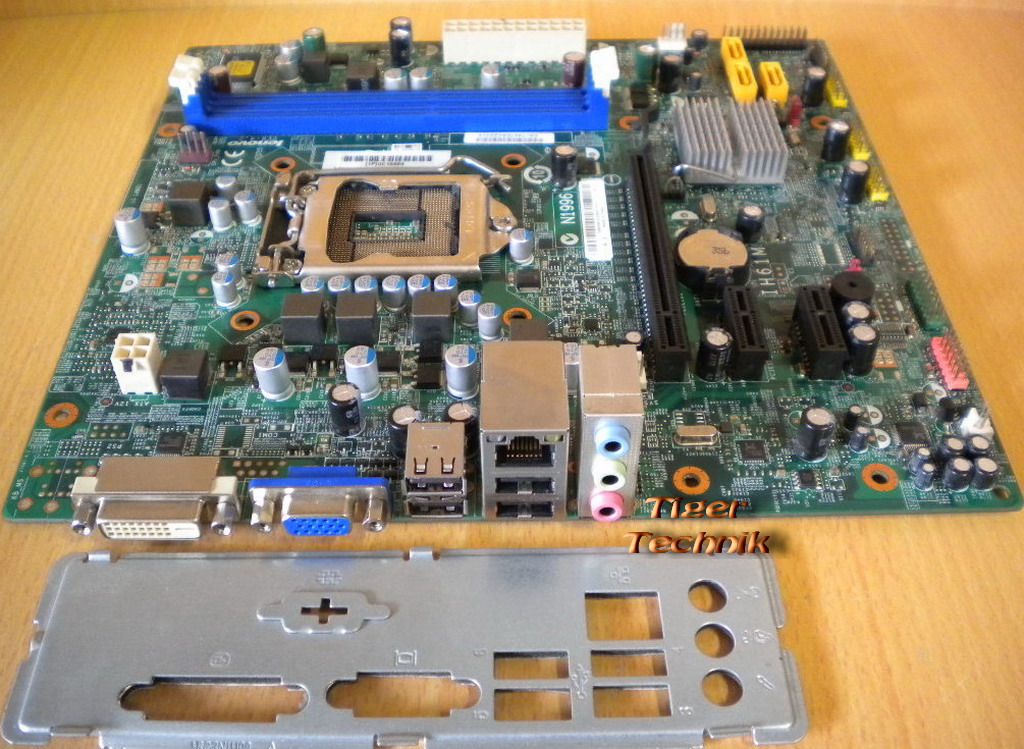

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
