Products description

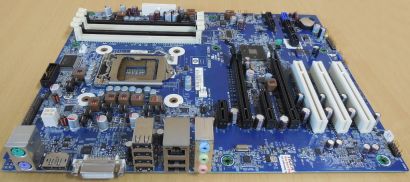

HP 506285-001 503397-001 FMB-0901 Rev 1.00 Mainboard Intel 3450 Sockel 1156 DDR3
Technische Daten
Hersteller HP
SP 506285-001
AS 503397-001
Model FMB-0901 Rev 1.00
CPU-Unterstützung
Intel® Xeon® Quad-Core Processor X3470 / X3460 / X3450 / X3440 / X3430
Intel® Core™ i5-670 Processor / i5-660 / i5-650 Processor
Intel® Core™ i3-540 Processor / i3-530 Processor
Intel® Pentium® Dual-Core G6950 Processor
Intel® Celeron® Dual-Core G1101 Processor
(For details on supported processors please refer to the HP Website)
Sockel Intel® 1156
Chipsatz Intel® 3450
Memory 4 x 240-Pin DDR3 1.5V Steckplätze für ungepufferte ECC/non-ECC 1333(PC3-10600) MHz DIMM Module; Single-Channel und Dual-Channel Support; 64-Bit, max. 16 GB Hauptspeicher
Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
LAN Intel® 82578 DM Gigabit Ethernet Controller with 10/100/1000 MBit/s
Audio Realtek® ALC 262, 4-channel High Definition Audio
Erweiterungssteckplätze 1 x PCIe x16; 1 x PCIe x16@x4; 1 x PCIe x4@x1; 1 x PCIe x1; 3 x PCI
USB 13 x USB2.0 (6 x Rear Panel; 7 x via Header)
Intern Echtzeituhr/Kalender mit Batteriepufferung
1 x Clear CMOS Switch
6 x SATA2 Ports (bis zu 3GBit/s; RAID 0/1/5/10 supported; 1 x e-SATA capable)
1 x 4-Pin CPU FAN Connector
2 x 4-Pin Chassis FAN Connectors
4 x USB2.0 Connector für insgesamt 7 weitere USB Ports z.B. via Blende
1 x 20-Pin ATX Power Connector
1 x 4-Pin CPU 12V Connector
1 x Front Panel Connector
1 x Audio Front Panel Connector
1 x 2-Pin Speaker Connector
1 x Parallel port Connector
1 x Seriell port Connector
1 x Hood Lock Connector
1 x Hood Sense Connector
Externe Anschlüsse 1 x DVI-I; 1 x DisplayPort; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 6 x USB2.0, 1 x LAN, 1 x Line-In, 1 x Line-Out, 1 x Mic
Formfaktor ATX; ca. 312 x 251 mm
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
