Products description
ECS Elitegroup P6VAP-A+ Rev. 1.1
Mainboard AGP PCI 2x Seriell + Blende
Technische Daten:
PROCESSORS:
FC-PGA Pentium®III up to 850MHz(100MHz FSB) and up to 1GHz(133MHz FSB)
Celeron™ PPGA up to 533MHz / FC-PGA up to 800MHz
Cyrix III up to 550MHz(100MHz FSB) and up to 600MHz(133MHz FSB)
CHIPSET:
VIA® VT82C694X (NB) & VT82C596B (SB)
Support AGP 2.0 specification (4X)
Super I/O - W83977EF
System Hardware Monitor: GL520SM
CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip
MEMORY:
Three 168-pin DIMM Sockets for 3.3V SDRAM (Ready for PC100, PC133)
Maximum: 1.5GB
SYSTEM BIOS:
Award 2MB Flash EEPROM
Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
Full Support for ACPI revision 1.0 specification
I/O INTERFACE:
Supports Plug and Play function
PS/2 keyboard and PS/2 mouse connectors
Dual USB Ports
One - EPP/ECP mode parallel port
Two - 16550 high-speed serial I/O port
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector:
ports, Headers and Others:
SPDIF In/Out header for digital audio interface (Optional)
IrDA Cable header
Header for Modem DAA module
Green, HDD, power indicator LED headers
CPU and Case Fan headers
LAN Card Wake Up/Internal Modem Ring Wake-Up headers
RTC & BATTERY
VIA® VT82C596B included 256 bytes of CMOS SRAM
With CMOS SRAM hardware clear jumper
EXPANSION SLOTS:
4 PCI slots, 1 AGP slot
FORM FACTOR
ATX (304mm*200mm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

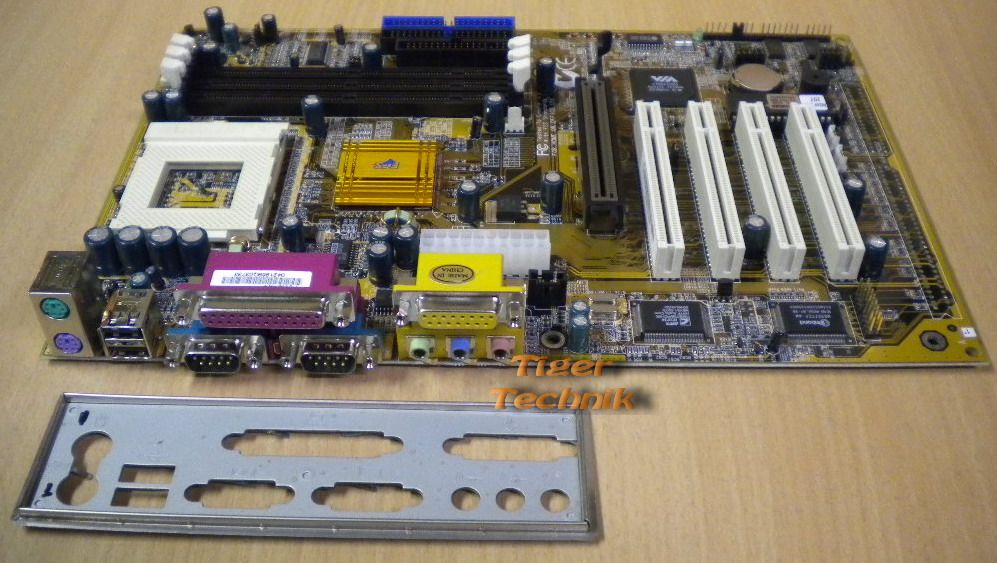

Abbildung ähnlich
