Products description

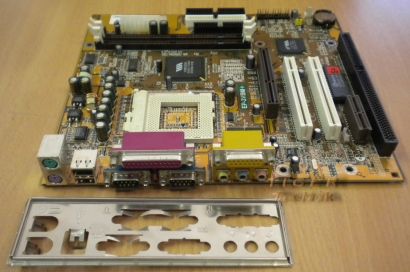

Epox EP-3VBM+ Rev 1.5 Mainboard + Blende
Sockel 370 ISA AGP PCI SDRAM Audio
Technische Daten
CPU
EP-3VBM+ is based on the Socket 370 Processors including PCGA & FCPGA operating at 500 ~700MHz.
FSB133 CPUs like Cyrix supported. Please refer to CPU Support List.
Chipset
VIA Apollo Pro 133 PCIset.
Winbond Super Multi I/O Controller.
Main Memory
2 x DIMM Slots for SDRAM PC66/PC100/PC133; max. 512MB supported
EP-3VBM+ will support Error Checking and Correcting (ECC) when usingb parity SDRAM memory modules. This will detect multiple bit errors and correct 1-bit memory errors.
Expansion Slots
1 x ISA
1 x AGP 1x/2x
1 x AMR slot
2 x PCI (32-bit); supports (2) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI card(s).
Storage
IDE
2 x independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices.
Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary IDE interfaces.•
Floppy
1 x Floppy port
Supporting two drives of any industry standard capacity including 2.88MB and LS/120 as well as 1.44MB and lower capacity types
Note: Japanese “Floppy 3 mode” is also supported•
Onchip AC-97 Audio.
Built-In Via VT1611A
Supports game/MIDI port.
Rear Ports
1 x Parallel port (EPP, ECP)
2 x Serial ports (16550 Fast UART)
2 x USB
1 x PS/2 mouse
1 x PS/2 keyboard
1 x Game-Midi-Port
Audio Ports: Mic; Line-In; Line-Out
Internal Ports
Built-in WOL (Wake-up On Lan) Connector
CD1/AUX1 Connectors
CPU/Chassis Fan Connectors
Front Panel Connector
CMOS Jumper
20-pin ATX Power Supply Connector
Bios
Award PnP BIOS. Flash upgradeable.
Dimension
Micro ATX form factor. Ca. 24cm x 22cm.
Other
EP-3VBM+ utilizes a Lithium battery which provides environmental protection and longer battery life.•
Software power-down when using Windows® 95/98.
Supports ring-in feature (remote power-on through external modem, allows system to be turned on remotely).
Resume by Alarm - Allows your system to turn on at a preselected time.
Power Loss Recovery - In the event of a power outtage your system will automatically turn itself back on without user intervention.•
Supports CPU Hardware sleep and SMM (System Management Mode).
Keyboard Power On (KBPO) - use keyboard to power on system.
Supports exclusive USDM (Unified System Diagnostic Manager) under Win9x/NT4 - monitor in Windows system temperatures, voltages, etc.
Hardware monitoring functions provided by VIA VT82C686A chipset.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
