Products description

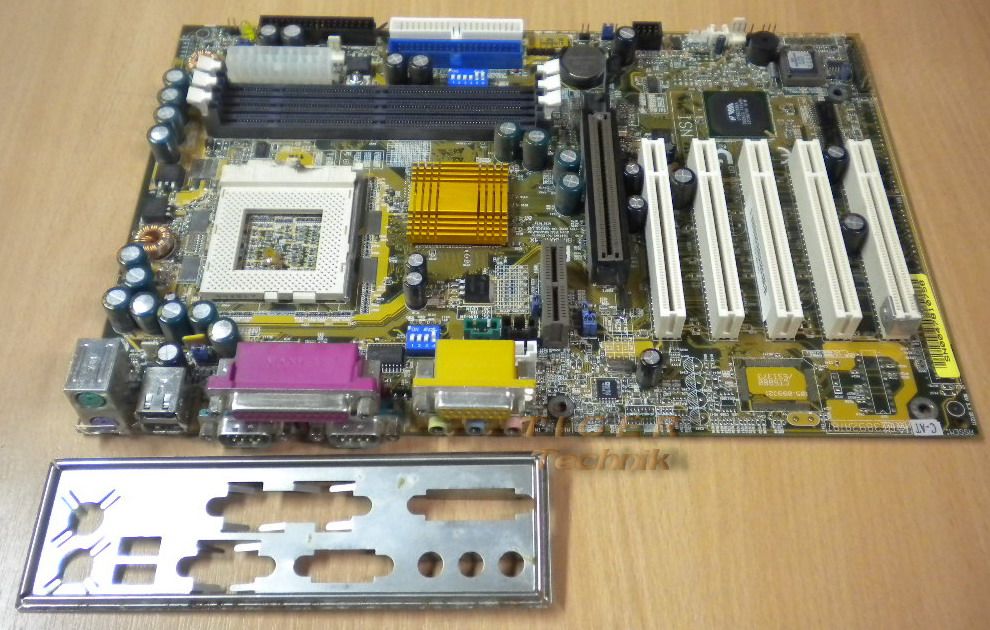

Gigabyte GA-6VX7-4X Rev. 3.2 Mainboard
Sockel 370 AGP PCI + Blende
Technische Daten:
CPU Support:
Intel Pentium III (Coppermine)
Intel Celeron (Coppermine)
VIA C3 (Samuel 2)
VIA Cyrix III (Samuel)
Chipset:
VIA Apollo Pro 133A (VT82C694X) / VT82C686A
NB/SB interconnection via PCI with 133 MB/s
Supports FSB 66/100/133 (66/100/133 MHz SDR)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 1.1)
Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)
Supports PCI v2.2
Supports IDE/PATA with up to UDMA66
Supports hardware monitoring and Super I/O
Memory:
3 168-Pin DIMM sockets supporting SDRAM / VCM-SDRAM
Supports up to 3 DIMMs PC100/133
Supports up to 512 MiB DIMMs
Supports max. 1.5 GiB RAM
Supports ECC
Audio:
VT82C686A integrated VIA AC'97 audio controller
Analog Devices AD1881A SoundMAX AC'97 audio codec
AC'97 2.1 compliant
Internal I/O:
1 AGP
5 PCI
1 ISA
1 AMR
2 PATA/IDE
1 Floppy port
1 USB 1.1 header
1 WOL header
1 WOR header
1 IrDA TX/RX header
AUX-IN, CD-IN, MDM-IN
Back Panel I/O:
PS/2 keyboard
PS/2 mouse
2 USB 1.1 ports
2 RS-232 ports (COM)
1 parallel port (LPT)
1 game port
Audio connectors (line-out, line-in, mic-in)
BIOS:
2MBit Flash EEPROM (PLCC32)
AMIBIOS
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
Miscellaneous:
ATX form factor
20 pin ATX power connector
VIA VT82C686A southbridge integrated hardware monitoring and Super I/O
ICS 9248DF-39 clock generator (PLL)
On-board PC speaker
3 3-pin FAN headers
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
