Products description

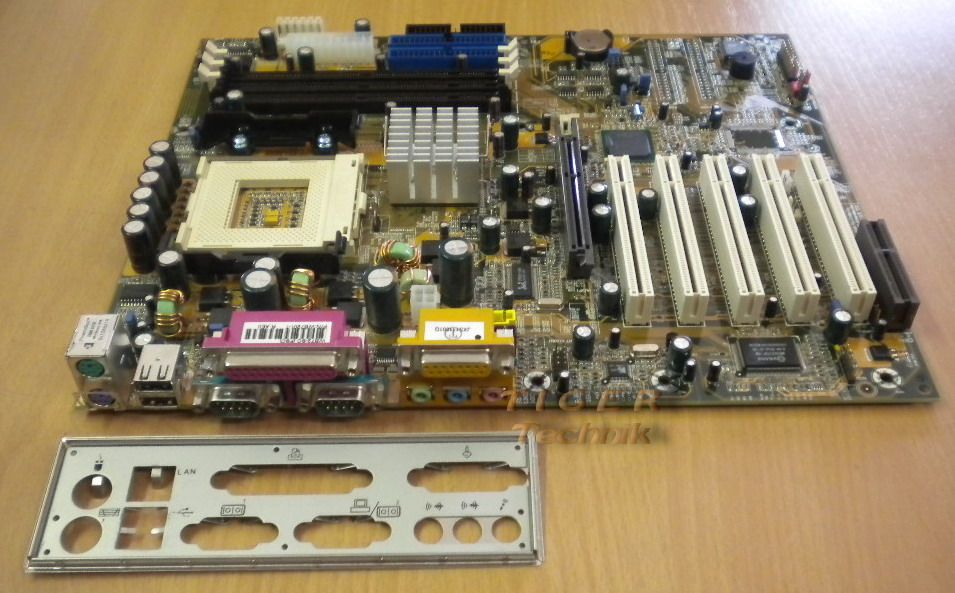

DFI WB72-SC rev. A1 Mainboard mit Blende
Technische Daten:
Chipset
Intel 845 / ICH2
CPU Socket
Socket 423
CPU Supported
Intel Pentium 4 processor (Supports 400MHz system data bus)
Memory
3 x SDRAM DIMM sockets
max. 3GB
Support PC133 SDRAM and ECC
PCI IDE
PIO mode 4 EIDE channels up to 4 IDE devices
UltraDMA/100 transfer rate up to 100MB/sec
Super I/O
2 x NS16C550A compatible UARTs
1 x SPP/ECP/EPP parallel port
External Connectors
2 x USB, 2 x DB-9, 1 x DB-25, 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x game/MIDI, 3 x Audio jacks
Internal Connectors
1 x connector for 2 additional external USB, 1x IrDA, 2 x IDE, 1x Floppy, 3 x ATX power, 3 x fan, 1 x WOL,1 x WOR, 2 x internal audio connectors
Power Management
ACPI and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Hardware Monitor
System, processor temperature, voltage and fan speed
Expansion Slots
1 AGP slot (Supports 1.5V AGP 4x)
5 PCI slots
1 CNR slot
Audio On Board
AC`97 Audio codec
Other features
Suspend to RAM
BIOS
Award / 2Mbit
Form Factors
ATX, 4 layers
30.5 cm x 24.4 cm
12.05 inch. x 9.6 inch.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
