Products description

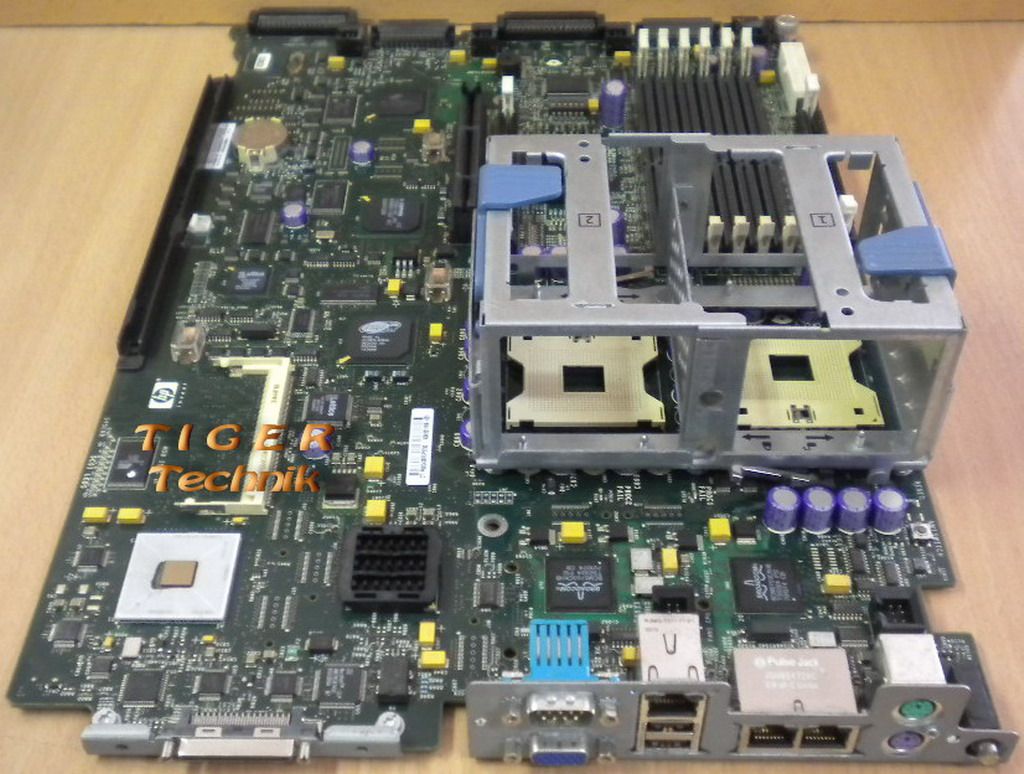

HP Compaq ProLiant DL380 G3 System Mainboard
SP: 289554-001 AS: 011656-001 Rev: A8
Technische Daten
Hersteller: HP/Compaq
Compatible Systems: ProLiant DL380 oder baugleich
Sockel: 2x Intel Socket 604
Mögliche Prozessoren (basierend auf der jeweiligen Ausführung):
Intel Xeon Processor 3.2 GHz/533MHz - 512KB/2MB
Intel Xeon Processor 3.2 GHz/533 MHz - 512KB/1MB
Intel Xeon Processor 3.06 GHz/533 MHz - 512KB/1MB
Intel Xeon Processor 2.8 GHz/533MHz - 512KB/1MB
Intel Xeon Processor 3.06 GHz/533MHz - 512KB
Intel Xeon Processor 2.8 GHz/400MHz - 512KB
Intel Xeon Processor 2.4 GHz/400MHz - 512KB
Cache Memory
2-MB Level 3 cache (NOTE: Included with some 3.2 GHz models.)
1-MB Level 3 cache (NOTE: Included with some 2.8 GHz, 3.2 GHz or 3.06 GHz models.)
512-KB Level 2 cache (NOTE: Included with all models.)
Upgradability: Upgradable to dual processing
Chipset: ServerWorks GC -LE Chipset
Memory: 6x DDR266 Steckplätze
Standard: 1GB of 2-way interleaved PC2100 DDR SDRAM running at up to 266MHz with Advanced ECC and Online Spare capabilities
Maximum: 6GB on 400MHz Front Side Bus Models
LAN: Two NC7781 PCI-X Gigabit NICs (embedded)
Storage Controller: Smart Array 5i Plus Controller (integrated on system board)
Maximum Internal Storage: 1.80 TB (6 x 300 GB Ultra320 1")
Interfaces: 1x Serial; 1x PS/2 (Mouse); 1x PS/2 Keyboard; 1x VGA (Sub-D); 1x External SCSI (VHDCI); 3x Network RJ-45 (1x for iLO); 2x USB
VGA: Integrated ATI Rage XL Video Controller with 8-MB SDRAM Video Memory
Formfaktor: Rack (2U), (3.5-inch)
Industry Standard Compliance: ACPI 1.0b Compliant; PCI 2.2 Compliant; WOL Support; Microsoft® Logo certifications; USB 1.1
Manageability: Insight Manager 7; HP Systems Insight Manager; Redundant ROM; Remote Flash ROM; Management Agent; Automatic Server Recovery (ASR); Integrated Management Log; Drive Parameter Tracking (with Smart Array Controllers); Dynamic Sector Repairing (with Smart Array Controllers); Hot Spare Boot
System Fans: 5 fans ship standard. 8 total supported internally for full redundancy
OS Support: Microsoft Windows NT® Server, Windows 2000, Novell NetWare, Caldera OpenUNIX 8, LINUX (Red Hat, SuSE)
Weitere Produktinformation http://h18000.www1.hp.com/products/quicKspecs/11473_div/11473_div.HTML
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
