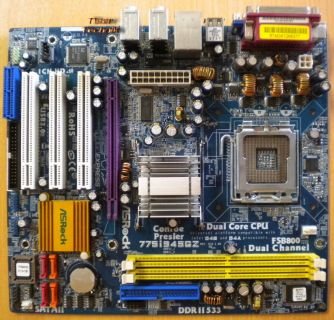

ASRock 775i945GZ Rev 1.03 Mainboard +Blende Sockel 775 PCIe VGA LAN SATA* m634

ASRock 775i945GZ Rev 1.03 Mainboard + Blende

Sockel 775 PCIe VGA LAN SATA

Technische Daten

CPU

- LGA 775 for Intel® Core™ 2 Duo* / Pentium® D / Pentium® 4 / Celeron® D processors
- FSB 800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*This motherboard supports FSB800-CPU. If you plan to adopt Core™ 2 Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX processors.

Chipset

- Northbridge: Intel® 945GZ
- Southbridge: Intel® ICH7

Memory

- Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 533 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB

BIOS

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support

Graphics

- Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB

Audio

- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN

- Realtek PCI LAN 8101L
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE

Slots

- 3 x PCI slots
- 1 x AGI Express slot (PCI Express x4)
- 1 x HDMR slot

Connector

- 4 x SATA2 3.0 Gb/s connectors (No Support for RAID and Hot Plug functions)
- 1 x ATA100 IDE connector (support 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM header
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O

HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: VGA
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

OS

- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
