Products description

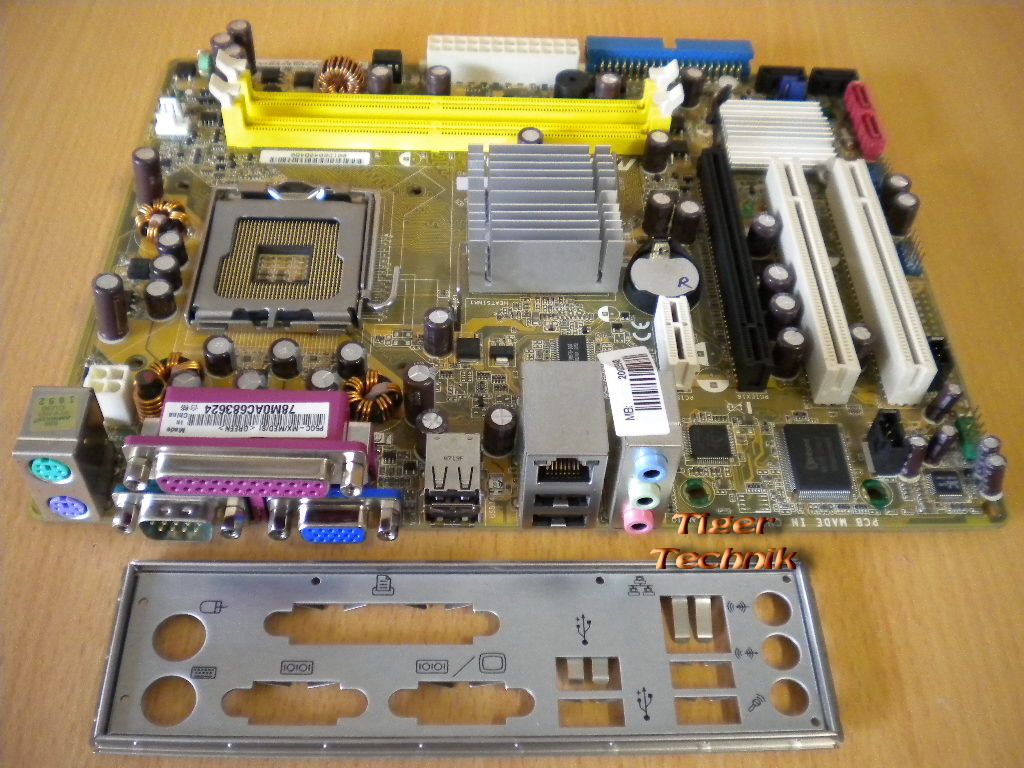

ASUS P5GC-MX/S i945GC Rev 3.04G Mainboard + Blende
CPU
Intel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready
Chipset
Intel 945GC
Front Side Bus
800/533 MHz
Memory
2 x DIMM, Max. 2 GB, DDR2 533/400 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI 2.2
VGA
Intel Graphics Media Accelerator 950
Supports RGB with max. resolution 2560x1600 @60Hz Max. Vertical Refresh Rate 1920x1440 @85Hz
Storage
Southbridge
1x UltraDMA 100/66/33
4x SATA 3 Gb/s ports
LAN
PCIe 100/10 LAN controller
Audio
Realtek ALC883 6 -Channel High-Definition Audio CODEC
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x LAN(RJ45) port
4 x USB 2.0/1.1
6- Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
CD/AUX audio in
System Panel Connector
Form Factor
uATX Form Factor
9.6 inch x7.2 inch ( 24.5cm x18.3cm )
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
