Products description

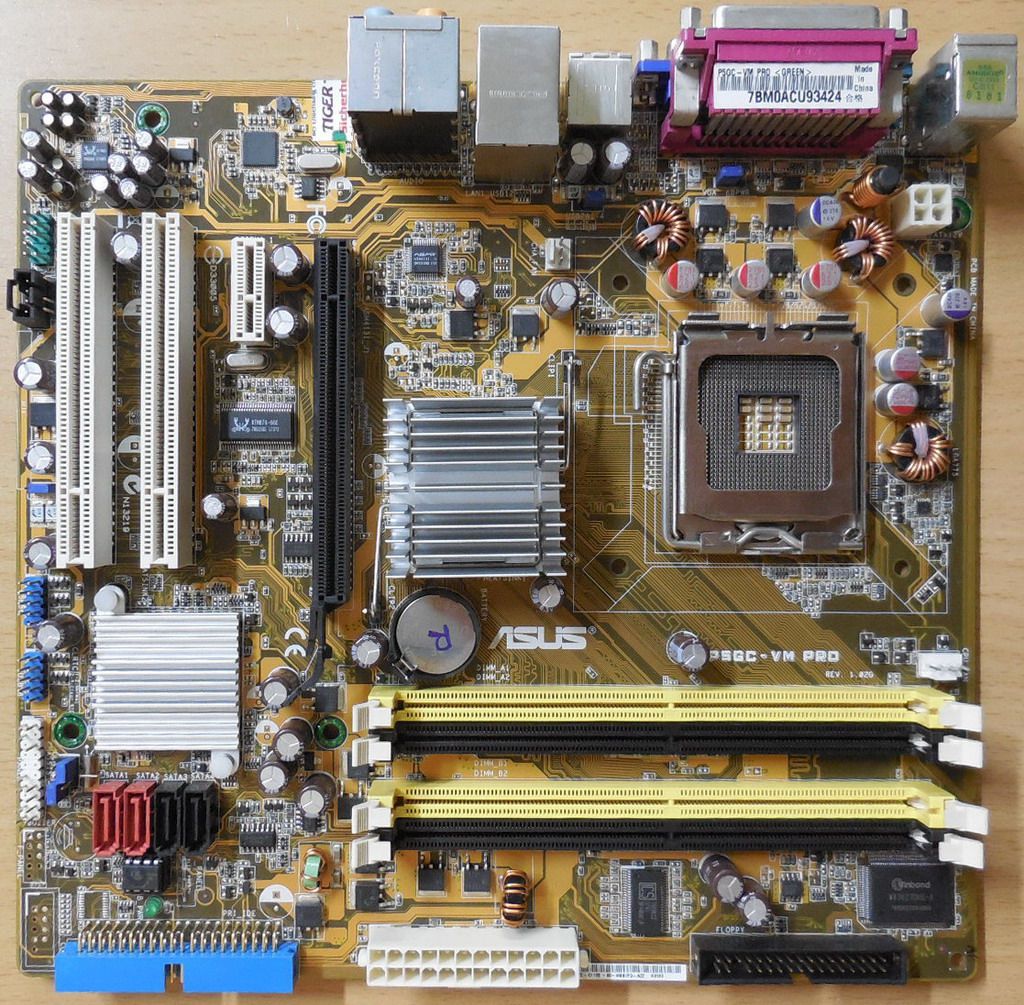

ASUS P5GC-VM Pro Rev 1.02G Mainboard + Blende Intel Sockel 775 VGA LAN Audio
Technische Daten
CPU
LGA775 socket for Intel® Core™2 EE / Core™2 Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready
*Refer to the Asus Website for Intel CPU support list
Chipset
Intel® 945GC / ICH7
Front Side Bus (FSB)
1333(OC) / 1066 / 800 / 533 MHz
Memory
4 x DIMM, max. 4GB, DDR2 667/533 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
*Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)
*When installing two DDR2 DIMM modules for single channel configuration, install only single-sided memory modules.
**When installing four DDR2 DIMM modules, install only single-sided memory modules.
***When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion slots
1 x PCI-E x16
1 x PCI-E x1
2 x PCI
Storage
1 x UltraDMA 100
4 x Serial ATA 3Gb/s
VGA
Intel Graphics Media Accelerator 950
Max. resolution: 2048x1536X32bpp
Splendid Video Enhancement Technology Support
Audio
Realtek ALC883 8-CH High-Definition Audio CODEC
LAN
Realtek RTL8111C 10/100/1000Mbps PCIe Gigabit Ethernet Controller
USB
8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special features
ASUS MyLogo
ASUS CrashFree BIOS 2
ASUS EZ Flash
ASUS Q-Fan
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x LAN RJ-45 port
8-Channel Audio I/O
Internal I/O
4 x SATA connectors
1 x IDE connector
1 x FDD connector
2 x USB 2.0 connectors for 4 additional USB ports
1 x Chassis Intrusion Connector
1 x CD Audio connector
1 x S/PDIF-Out connector
1 x Front Audio Panel connector (AAFP)
1 x Front System Panel connector
1 x KB_PW Jumper
1 x USBPW1-4 Jumper
1 x USBPW56 Jumper
1 x 4-Pin CPU fan connector
1 x 3-Pin Chassis fan connector
1 x CMOS Jumper
4-pin CPU 12V power connector
20-pin ATX Power connector
BIOS features
8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4
Manageability
WOL, PXE, RPL, WOR by Ring, PME Wake Up
Form Factor
uATX Form Factor, 9.6"x 8.95" (24.4cm x 22.7cm)
Lieferumfang

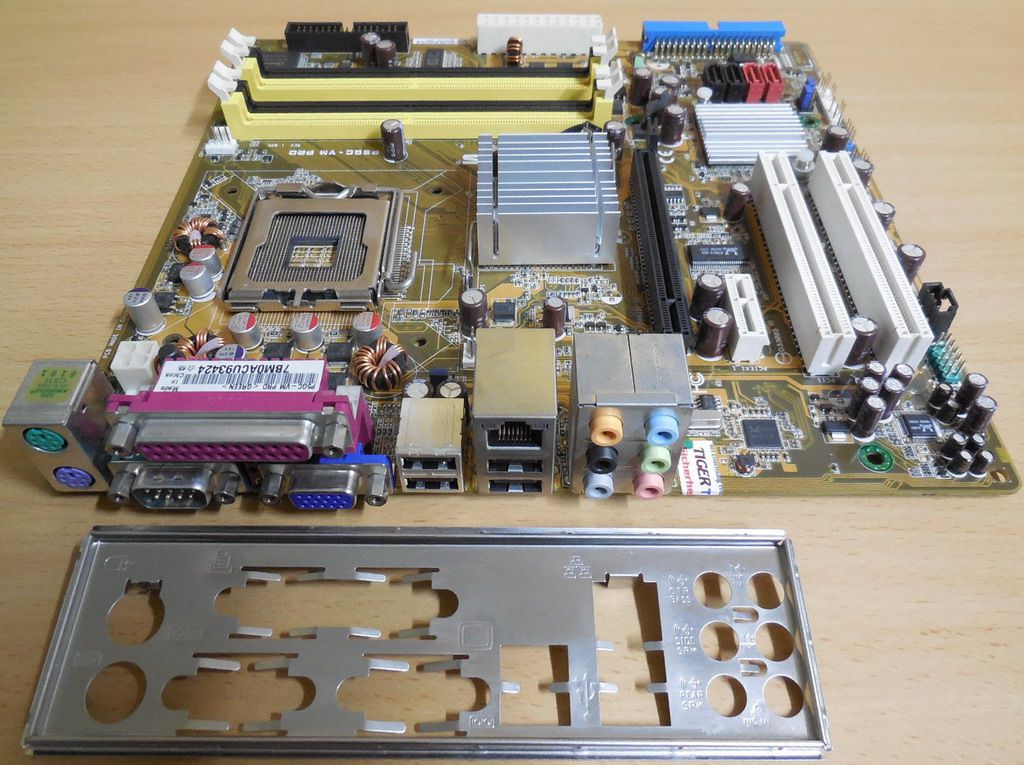

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
