Products description

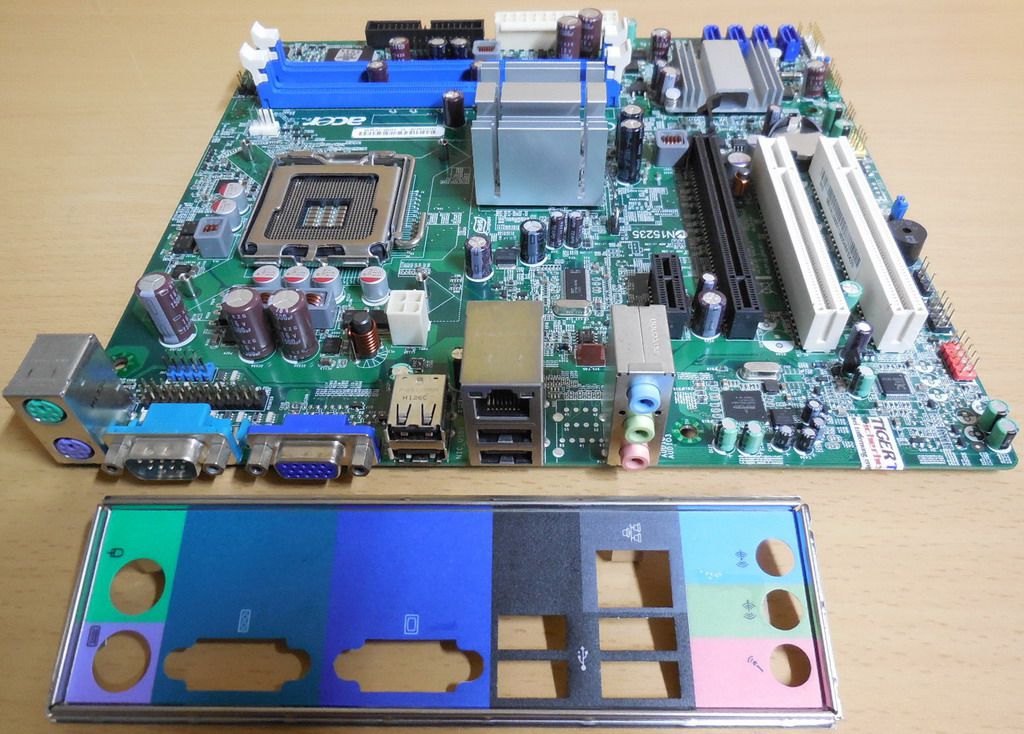

Acer Veriton M275 Mainboard + Blende Foxconn G41M07-1.0-6KSH Sockel 775 VGA
Technische Daten
CPU/Processor
Supports Intel® Core™2 Quad / Intel® Core™2 Duo / Intel® Pentium® Dual-Core / Intel® Pentium® / Intel® Celeron® processors in the LGA775 package
FSB
1333/1066/800 MHz
Chipset
Intel G41 Northbridge + Intel ICH7 Southbridge
Memory
2 x DDR3 1066(PC3-8500) DIMM Steckplätze für non-ECC unbuffered DIMMs; Max. 4GB; Dual Channel unterstützt
VGA
Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500)
Intel® Dynamic Video Memory Technology 5.0 (Intel® DVMT 5.0) support
Steckplätze
1x PCI Express® x16 Slot, 1x PCI Express® x1 Slot, 2x PCI Slot
Onboard Audio
Realtek ALC662-VC HD 5.1-channel Audio
Onboard LAN
Realtek 8111DL Gigabit Ethernet LAN 10/100/1000 Mbits
Storage
4 x SATA II 3Gb/s connectors for up to 4 SATA devices
USB
8 x USB2.0/1.1 (Rear 4 ports, Intern 2 headers for additional 4 ports)
Buzzer
1 x onboard buzzer
Back panel I/O
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x VGA Sub-D
1 x Seriell RS232 COM port
4 x USB2.0 ports
1 x RJ-45 networking port (LAN)
1 x 5.1-channel Audio ports: Line-In (light blue); Line-Out (lime); Microphone (pink)
Internal connectors
4 x Serial ATA connectors
1 x Floppy Disk Drive connector
1 x COM2 connector
1 x LPT Printer connector
1 x CPU fan connector (4-pin)
1 x System fan connector (3-pin)
1 x Front Audio connector
1 x Front Panel connector
1 x SPDIF-Out connector
2 x USB connectors supporting 2.0 ports for up to 4 additional ports
1 x SPI connector
1 x TPM connector
1 x Internal Speaker connector
1 x CMOS Jumper
1 x ATX 24-pin power connector
1 x ATX 4-pin +12v power connector
Bios
8MB AMI Kernel with eMachines
Form factor
Micro ATX size; ca. 244mm x 225mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
