Products description

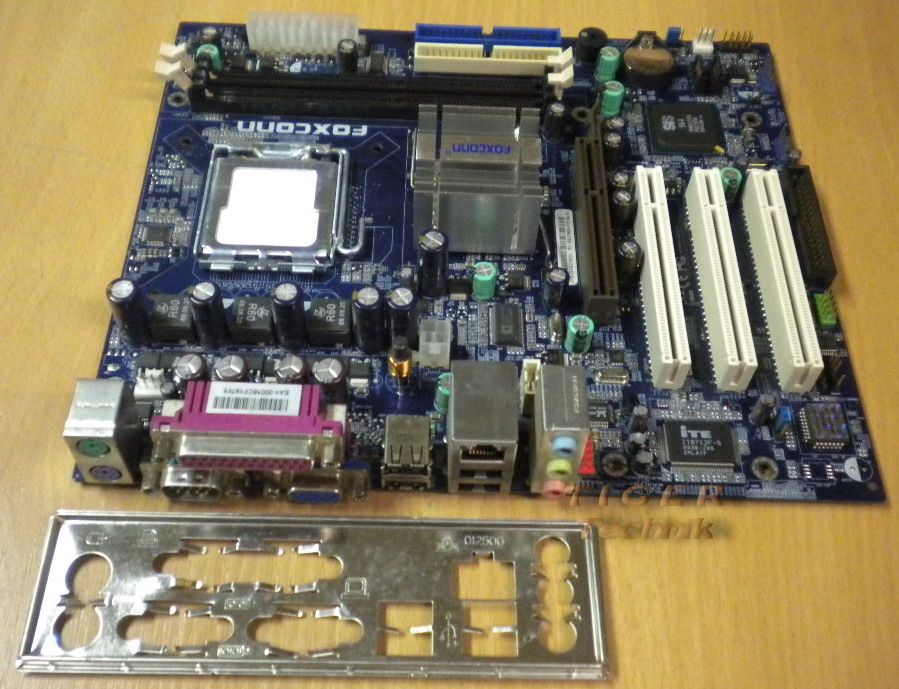

Foxconn 661M08-FX-6LS Mainboard + Blende
Technische Daten:
CPU
Socket 775
533/800 MHz Front Side Bus (FSB)
Supported Processors:
Intel Pentium 4 Extreme Edition Processor with 800 MHz system bus
Intel Pentium 4 Processor with 533/800 MHz system bus
Intel Celeron D Processor with 533 MHz system bus
Chipset
SiS 661FX + 964 chipset
Memory
2x DDR RAM (DDR266/333/400)
Supports up to 2 GB
Video
Integrated SiS Mirage Graphics
Audio
Integrated AC'97 audio
LAN
Integrated 10/100 LAN
Storage
2x UDMA/33/66/100 IDE controllers
1x floppy disk controller
2x Serial ATA ports
Expansion Slots:
1x AGP slot slot
3x PCI slots
I/O Ports:
2x PS/2 ports
1x 9-pin serial port
1x 15-pin VGA
1x 25-pin parallel port
4x USB2.0 ports + 2x USB2.0 ports via optional header
1x RJ-45 Ethernet jack
Line-in, microphone, and line-out jacks
Form Factor
mATX
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
