Products description

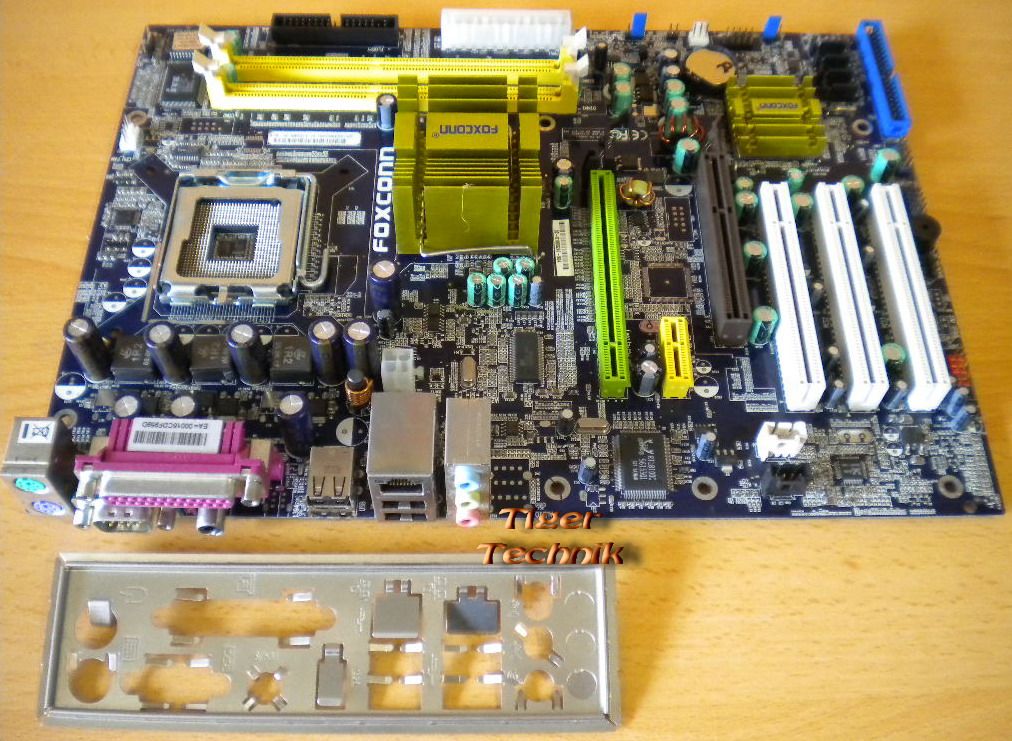

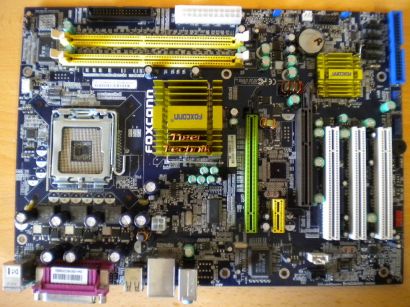

Foxconn PC 915A05-PL-6LS Mainboard
915PL7AE-S + Blende
Technische Daten:
Processor
Support socket T, Intel® Pentium® 4 processors
Chipset
Intel® 915PL + Intel® ICH6
Front Side Bus
800 MHz FSB
Memory
Support Max. 2GB, Dual Channel 400MHz / 333MHz DDR SDRAM
VGA on Die
N/A
Expansion Slots
1 x PCIe x 16, 1 x FGE 8X, 1 x PCIe x 1, 3 x PCI
IDE
ATA 100 x1
Serial ATA(SATA)/RAID
Support 4 Serial ATA 150 drives
Audio
Realtek ALC655; 5.1 channel audio
LAN
RTL8100C, 10/100 M LAN
IEEE1394
N/A
Back Panel I/O Ports
1 x PS/2 mouse
1 x RJ45
1 x PS/2 keyboard
1 set 5.1 channel Audio jack
1 x parallel
4 x USB 2.0
1 x COM1
1 x coax. S/PDIF out
Internal I/O Connectors
2 x USB 2.0 headers
1 x S/PDIF out header (reserve)
1 x buzzer
1 x CD-IN header
1 x IrDA header
1 x AUX IN header (reserve)
1 x Front Audio
1 x COM2 (reserve)
1 x Speaker heade
BIOS Features
4Mb flash ROM, Award BIOS, PnP1.0a, DMI 2.0, WfM 2.0, SMBIOS 2.3, ACPI 1.0b
Standards/Manageability
PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features
STR (Suspend-to-RAM), STD (Suspend-to-Disk), Super Recovery, SuperBoot, Super BIOS-Protect, BIOS SuperSpeed
Form Factor
ATX (12” x 8.6)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
