Products description

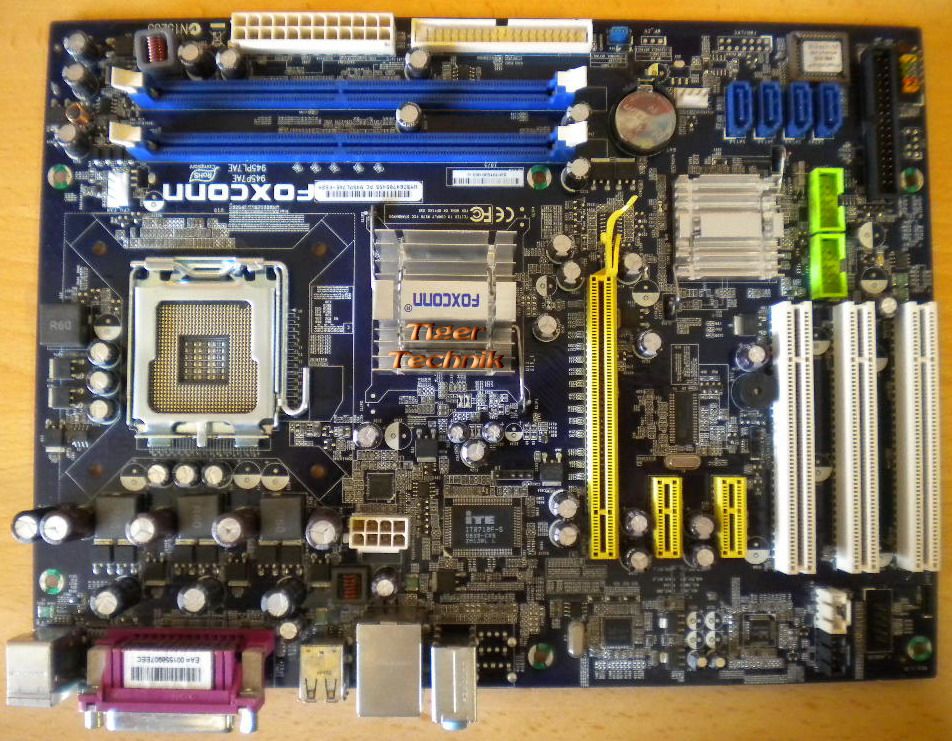

Foxconn PC 945PL7AE-KS2H Mainboard
D45P7AE D45PL7AE Sockel 775
Technische Daten:
Processor
Intel® Core™ 2 Duo(E4xxx), Pentium 4, Pentium 4PXE, Pentium D, Celeron D, Socket T (LGA775)
Chipset
Intel® 945PL + ICH7
Front Side Bus
533 / 800 MHz FSB
Memory
Dual channel DDR2 400 / 533 x 2 DIMMs, Max 2GB
VGA on Die
N/A
Expansion Slots
1 x PCIe x16, 2 x PCIe x1, 3 x PCI
IDE
1 x ATA 100
Serial ATA(SATA)/RAID
SATA II x 4
Audio
5.1 channel, Realtek ALC 653 AC’97
LAN
PCIe GbE LAN, Realtek 8111B
IEEE1394
N/A
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x parallel
1 x COM1
4 x USB 2.0
1 x RJ45
1 set 5.1 channel Audio jacks (3 jacks)
1 x Coax S/PDIF
Internal I/O Connectors
ATX 24-Pin power connector
8-pin ATX 12V power connector
CPU / System / NB FAN connectors
CD-in connector
One ATA connector
One IRDA
One buzzer connector
Front panel connector
2 x USB 2.0 connector support additional 4 ports
4 x Serial ATAII connectors
One Speaker
One SPDIF out header
One Front Audio Header
One Floppy connector
BIOS Features
FWH 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3
Standards/Manageability
PCI 2.3, USB2.0, DMI 2.0, WfM2.0
Special Features
SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, Ratio Free, BIOS Q.B.U
Form Factor
ATX (11.6” x 8.6”)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

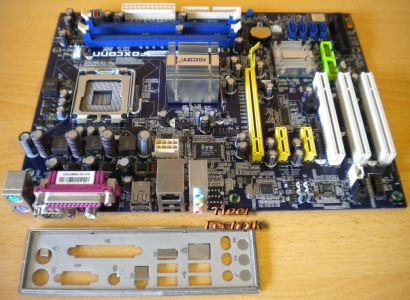

Abbildung ähnlich
