Products description

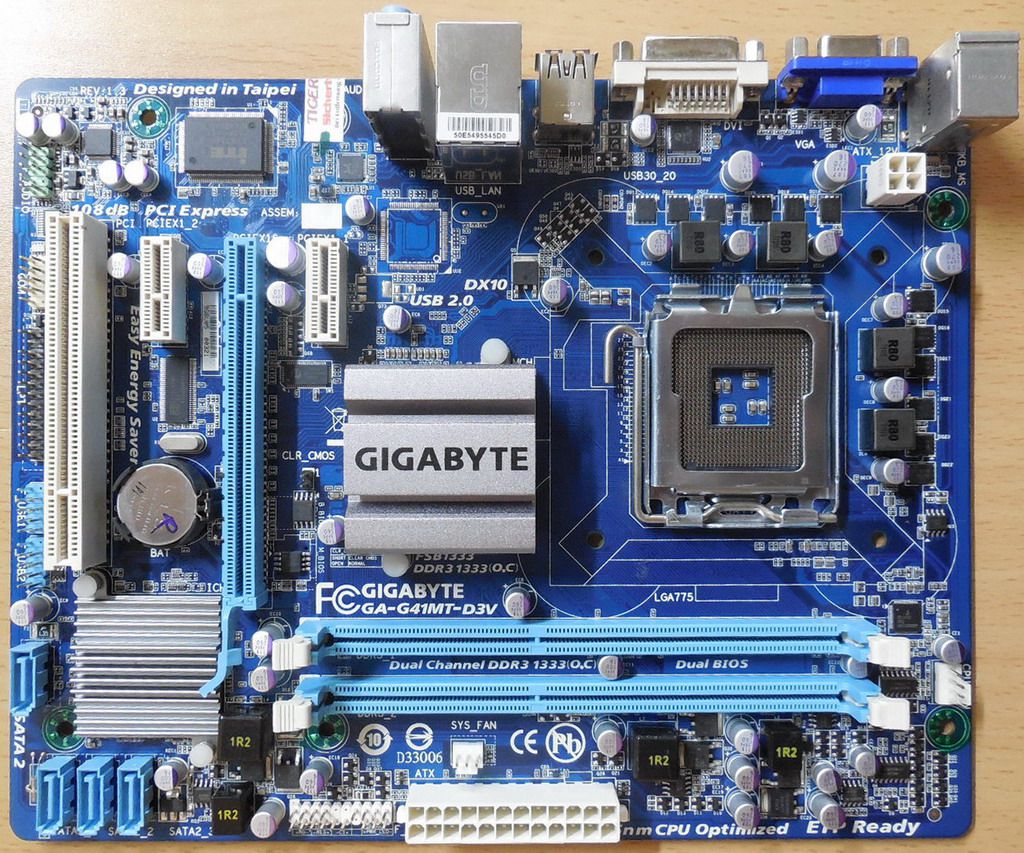

Gigabyte GA-G41MT-D3V Rev 1.3 Mainboard + Blende Sockel 775 DDR3 PCIe GBLAN
Technische Daten
Prozessor
Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
L2 cache varies with CPU
(Go to GIGABYTE's website for the latest CPU support list.)
Front Side Bus
1333(O.C.)/1066/800 MHz FSB
Chipsatz
North Bridge: Intel® G41 Express Chipset
South Bridge: Intel® ICH7
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
Dual channel memory architecture
Support for DDR3 1333(O.C.)1066/800 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Grafik
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
1 x PCI slot
Storage Interface
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O
iTE IT8718
H/W Überwachung
System voltage detection
CPU temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Xpress BIOS Rescue; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for EasyTune (Available functions in EasyTune may differ by motherboard model.); Support for Easy Energy Saver (Due to the hardware limitation, you must install the Intel® Core™ 2 Extreme/ Core™ 2 Quad/ Core™ 2 Duo/Pentium Dual-Core/Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver.); Support for Smart Recovery; Support for ON/OFF Charge; Support for Q-Share
Betriebssystem
Support for Microsoft® Windows® 7/Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 19.4cm
Lieferumfang

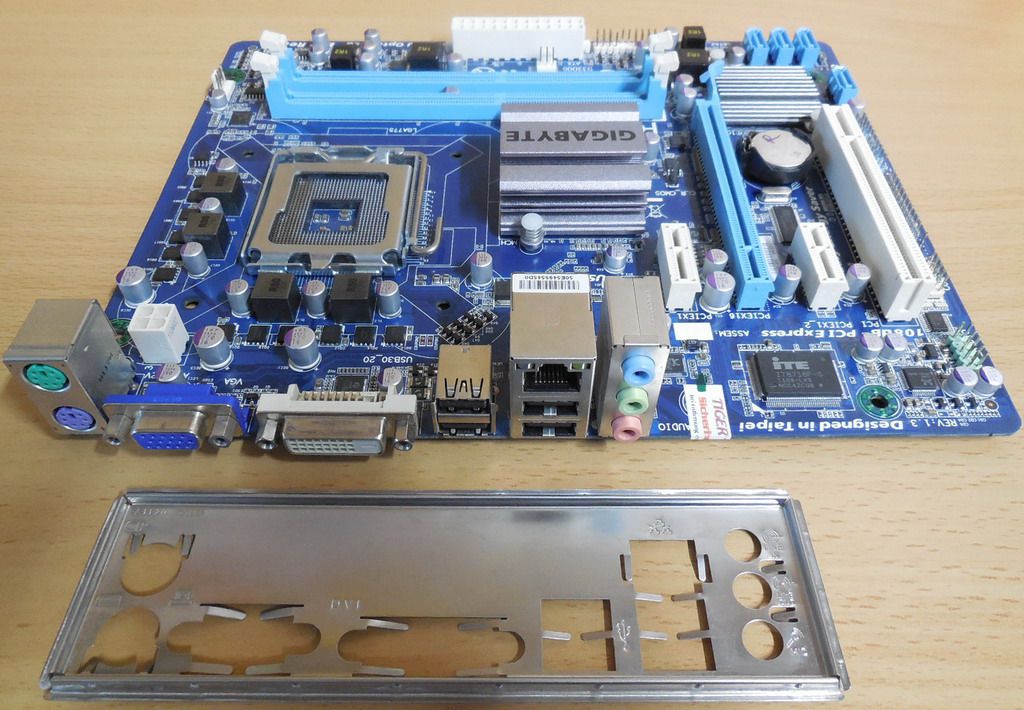

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
