Products description

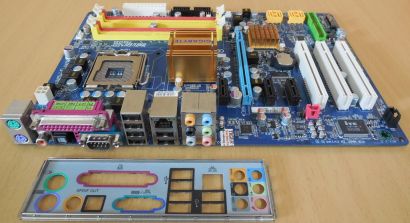

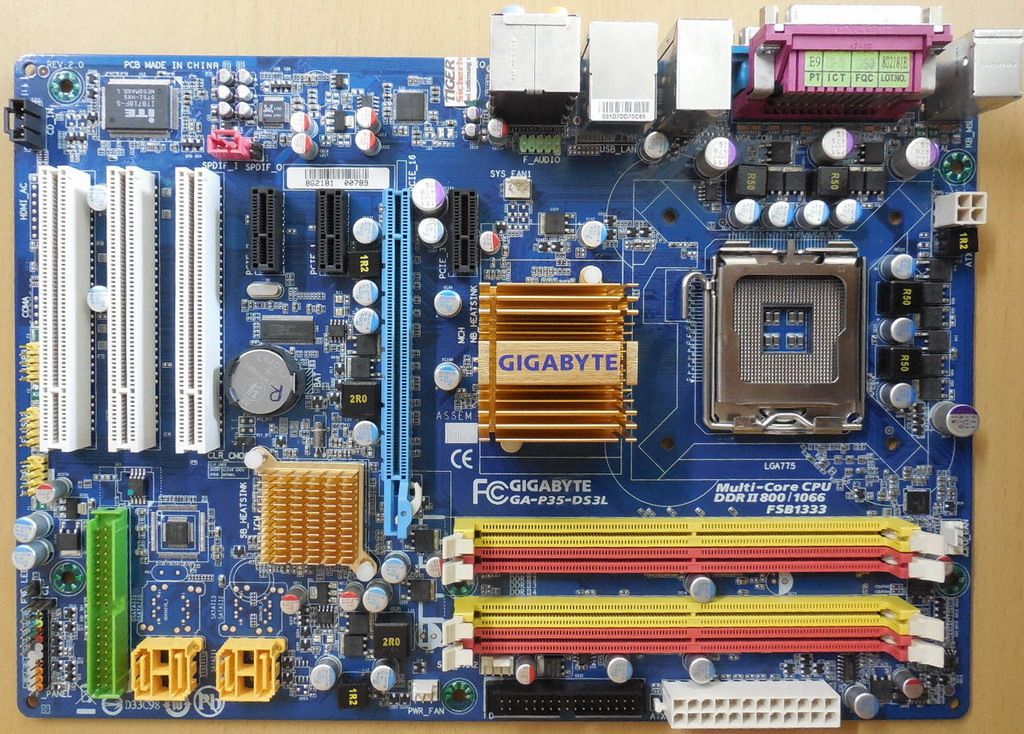

Gigabyte GA-P35-DS3L Rev 2.0 Mainboard + Blende Intel P35 Sockel 775 DDR2 PCIe SATA
Technische Daten
Prozessor
Supports Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme / Intel® Pentium® D processors
Supports FSB 1333/1066/800MHz
Chipsatz
Intel® P35 Express Chipset Northbridge + Intel® ICH9 Southbridge
Gigabit Lan Controller
8 Channels ALC888 Audio controller
Arbeitsspeicher
Supports DDR2 1066*/800/667 memory
Dual Channel architecture supports up to 8GB by 4 DIMM slots
*Please refer "Memory Support List" for memory support information
Erweiterungssteckplätze
1 x PCI Express X16 slot
3 x PCI Express X1 slots
3 x PCI slots
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x Floppy Disk Drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x 4-pin CPU fan header
1 x 4-pin system fan header
1 x 3-pin system fan header
1 x 3-pin power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers (supports 6 ports)
1 x Chassis Intrusion header
1 x Power LED header
1 x Clear CMOS Jumper
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
6 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x parallel port
1 x serial port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
Andere Funktionen
Ultra Durable 2 Motherboard
Over-clocking Enhanced
BIOS
Supports Virtual DualBIOS
1 x 8 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Einzigartige Funktionen
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU fan speed control
Form Factor
ATX form factor; ca. 305 x 210mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
