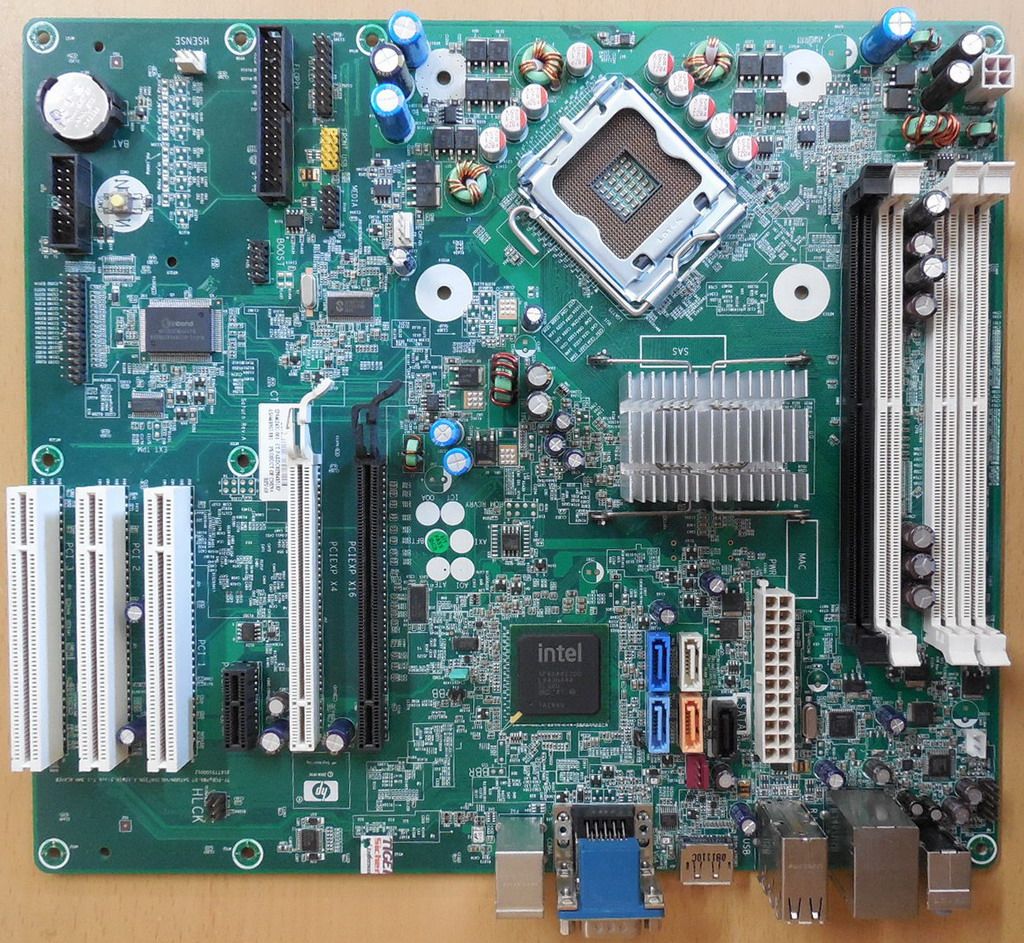

HP Saturn Rev A 462431-001 460963-001 Mainboard +Blende Sockel 775 CMT* m1164

HP Saturn Rev. A 462431-001 460963-001 Mainboard + Blende Sockel 775 DC7900 CMT

Technische Daten

Hersteller       HP

Model       Saturn Rev A

P/N       462431-001 / 460963-001 Rev 0F

CPU-Unterstützung

Intel® Core™ 2 Quad (Q8200; Q9400; Q9550; Q9650)

Intel® Core™ 2 Duo (E7200; E7300; E8300; E8400; E8500; E8600)

Intel® Pentium®-Dual-Core (E2200; E2220; E5200)

Intel® Celeron®-Dual-Core (E1200; E1400)

Intel® Celeron® 440

Sockel       Intel LGA 775

Chipsatz       Intel® Q45 Express

RAM       4 x Dimms für DDR2 PC2-6400 800MHz non-ECC Arbeitsspeicher; max. 16GB

VGA       Intel Graphics Media Accelerator 4500 with DirectX 10 integriert

LAN       Intel 82567LM Gigabit LAN 10/100/1000Mbits

Audio       Integriert HD audio with AD1884A codec (all ports are stereo)

Microphone and Headphone front ports, Line-out and Line-In rear ports*

Multistreaming capable*

*Rear audio input ports are re-taskable as Line-in or Microphone-in. External speakers must be powered externally. Multistreaming can be enabled in the ADI control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different audio applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a communications application while the rear jacks are being used with external speakers and a multimedia application.

Erweiterungssteckplätze       1 x PCI-E x16; 1 x PCI-E x16@4x; 1 x PCI-E x1; 3 x PCI

Intern       Echtzeituhr/Kalender mit Batteriepufferung

4 x SATA2 Ports (bis zu 3GBit/s) für bis zu vier SATA Geräte

1 x eSATA Port

1 x Floppy FDD Connector

1 x Boost Connector

2 x 4-pin Chassis FAN Connectors

1 x HLCK Connector

1 x HSense Connector

1 x COM B Connector

1 x Parallel Connector

1 x PSWD Jumper

1 x FDO Jumper

1 x BB Jumper

1 x Media Card Connector

1 x Front USB2.0 Connector

1 x Front Panel Connector

1 x Front Audio Connector

1 x SPKR Connector

1 x 24-pin Power Connector

1 x 4-pin 12V CPU Power Supply Connector

Externe Anschlüsse       1 x VGA Sub-D; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Seriell, 1 x Displayport, 1 x RJ45 GB LAN, 6 x USB2.0, 2 x Audio Klinke Anschlüsse

Formfaktor       HP DC7900 Convertible Minitower; ca. 305 x 268 mm

Lieferumfang

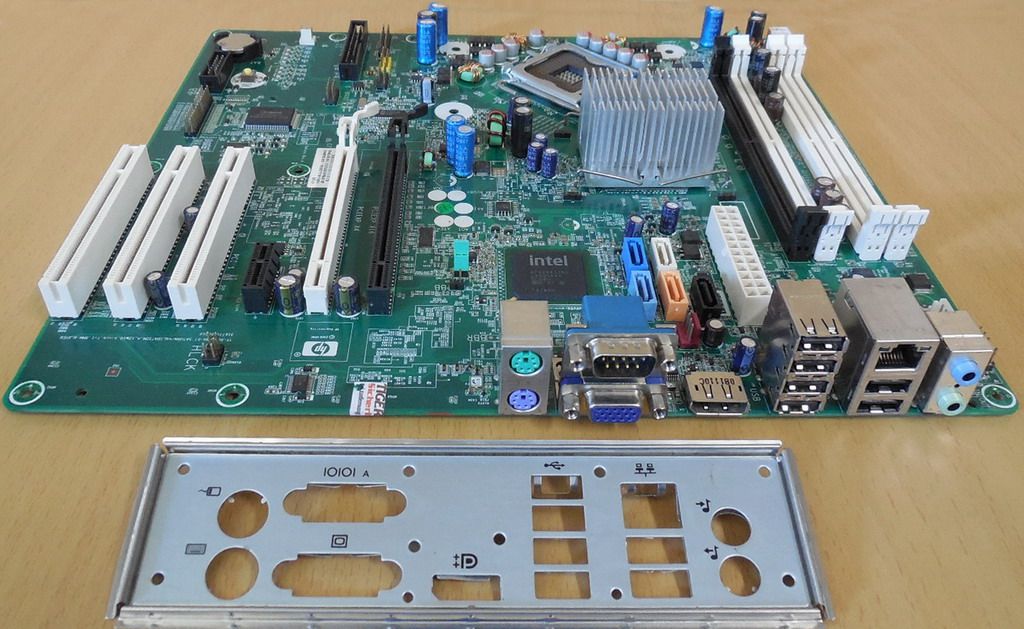

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
