Products description

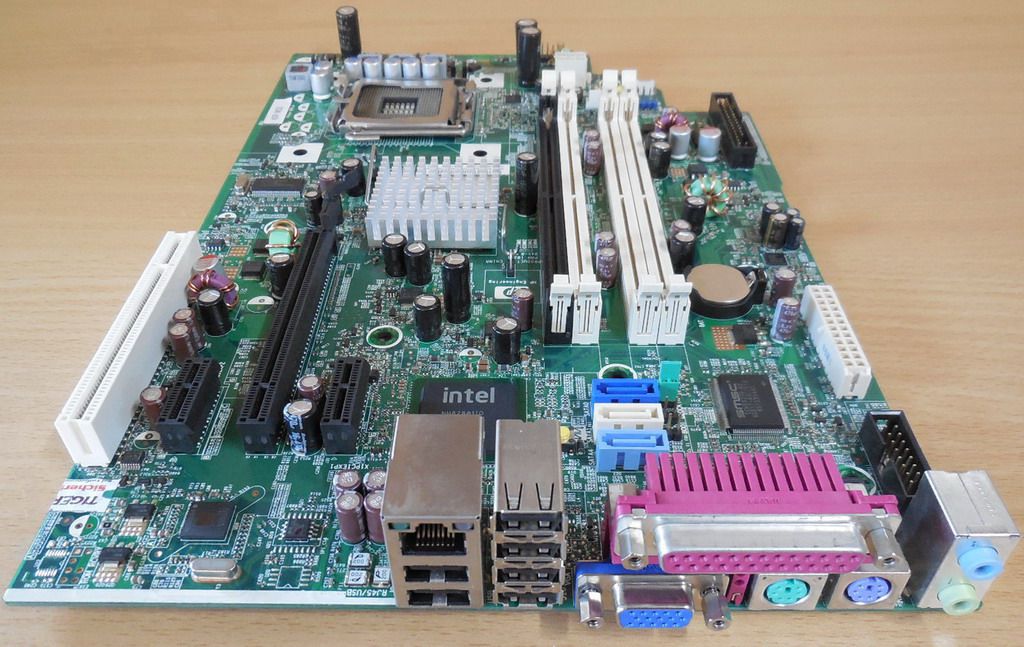

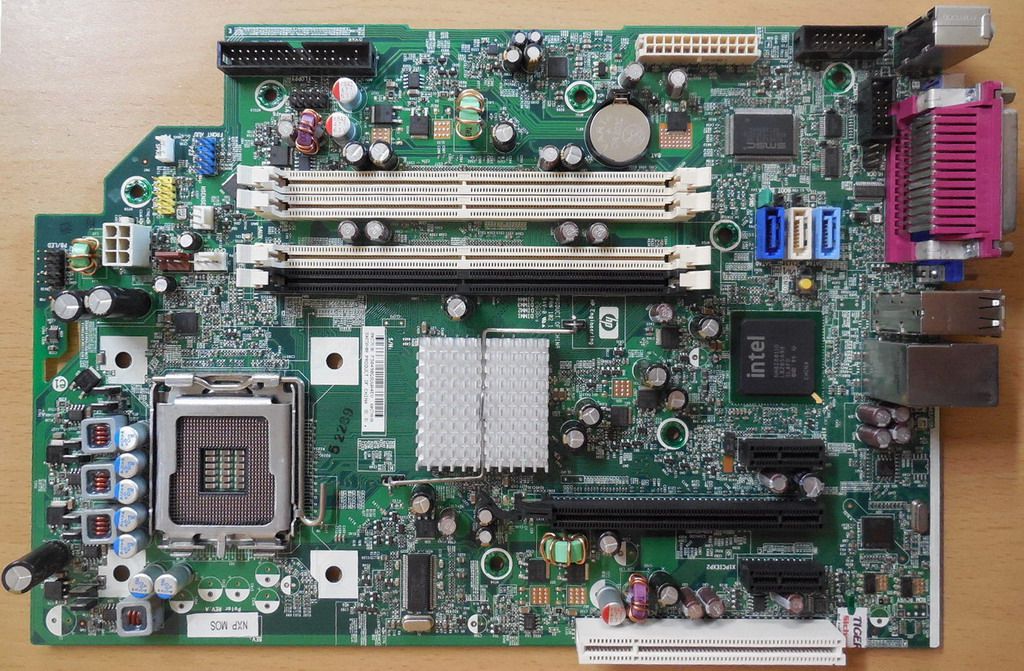

HP dc7800 SFF Mainboard Polar Rev A 437793-001 437348-001 Rev 0C Intel Sockel 775 Q35
Technische Daten
Hersteller HP (Hewlett Packard)
Model Polar Rev A SP# 437793-001 AS# 437348-001 DG# 437349-000 Rev. 0C
Geeignet für HP dc7800 SFF oder baugleich
CPU-Unterstützung Intel® Core™ 2 Quad; Intel Core™ 2 Duo; Intel Pentium® Dual-Core; Intel Celeron®
Sockel Intel LGA 775
FSB 800 / 1066 / 1333 MHz
RAM 4 x 240-pin DDR2 DIMM Sockets (1.8V), Dual Channel memory architecture; DDR2 667MHz(PC2-5300) / 800MHz(PC2-6400); non-ECC unbuffered; max. 8 GB Hauptspeicher
Video Intel Graphics Media Accelerator 3100
LAN Intel® 82566DM GbE 10/100/1000 Mb/s Netzwerkverbindung
Sound ADI1884 High Definition Audio Codec
Erweiterungssteckplätze 1x PCI; 2x PCIe x1; 1x PCIe x16
Intern Echtzeituhr/Kalender mit Batteriepufferung
3 x SATA2 (3GBit/s) Ports
1 x Floppy Drive Connector
1 x 4-pin CPU FAN Connector
1 x 4-pin Chassis FAN Connector
1 x Boot Block Connector
1 x FDO Connector
1 x Password Jumper
1 x Clear CMOS Switch
1 x H_LOCK Connector
1 x COM A Connector
1 x Second Serial Connector
1 x Media reader/ReadyBoost connector
1 x Front Panel Connector
1 x Front USB Connector
1 x Speaker Connector
1 x H_Sense Connector
1 x Front Audio Connector
1 x 24-pin Main Power Connector
1 x 6-pin Processor Power Supply Connector
Externe Anschlüsse 1 x VGA Sub-D; 1 x PS/2 Keyboard; 1 x PS/2 Mouse; 1 x Parallel, 1 x LAN RJ-45, 6 x USB2.0, 1 x Line-In, 1 x Line-Out
Form Factor dc7800 SFF oder baugleich
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
