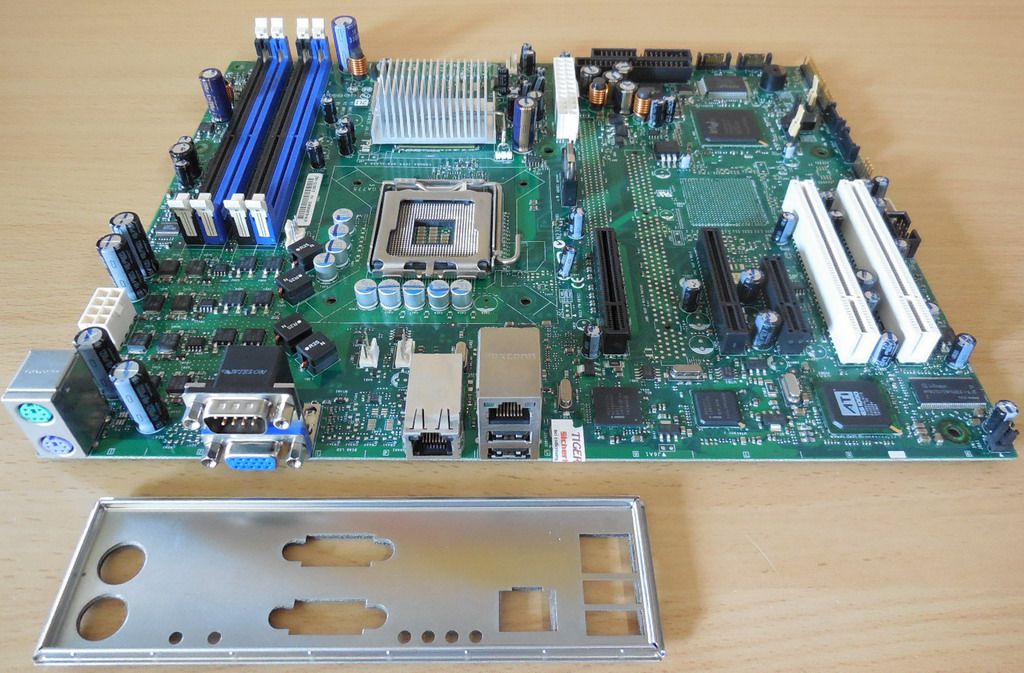

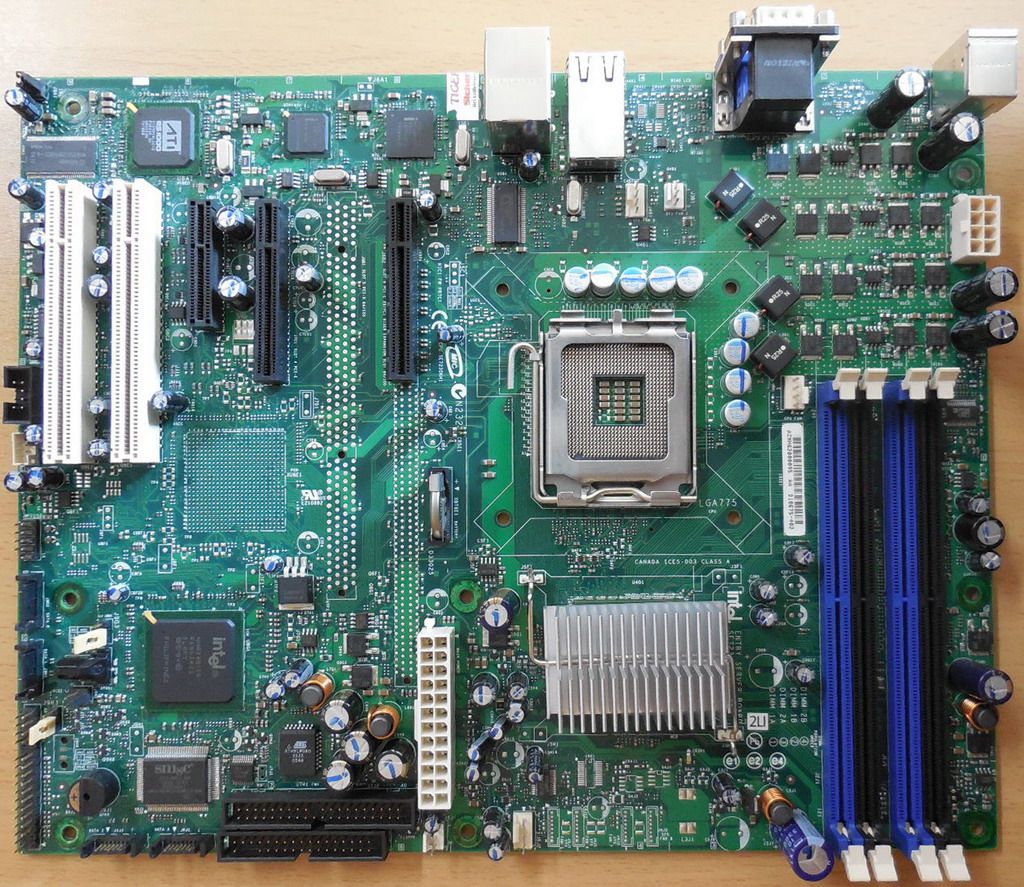

Intel Entry Server Board SE7230NH1-E Mainboard + Blende Sockel 775 Dual GBLAN VGA
Technische Daten
Hersteller: Intel
Model: SE7230NH1-E
CPU-Unterstützung:
Supports Pentium® processor Extreme Edition, Pentium® D, Pentium® 4 and Celeron® D processors in the Intel® LGA775 package
Supports Intel® Dual Core Architecture
Supports Hyper-Threading Technology
Supports Intel® Extended Memory System 64 Technology (Intel® EM64T)
Sockel: Intel 775
Chipsatz: Intel® E7230 Chipset components
Intel® E7230 MCH Memory Controller Hub
Intel® ICH7R I/O Controller
12-deep In-order Queue
RAM:
Four DIMM sockets supporting 400/533/667MHz DDR2 DIMMs
Data bandwidth per channel of 4.2GB/s or 8.4GB/s in dual channel when using DDR2 667MHz
Support for up to two DDR2 channels for a total of four DIMMs (2 DIMMs / Channel) providing up to 8GB max memory capacity; Support for 256MB, 512MB, 1GB and 2GB DRAM modules
VGA: The Intel® Entry Server Board SE7230NH1-E includes an integrated stand-alone ATI ES1000 graphics engine that supports standard SVGA drivers with analog display capabilities. The graphics subsystem has 16 MB of dedicated memory to support the onboard video controller. The baseboard provides a standard 15-pin VGA connector at the rear of the system, in the standard ATX I/O opening area. The video controller is disabled by default in BIOS Setup when an off-board video adapter is detected in either the PCI-E or PCI slots.
LAN: 2 x Gigabit LAN; NIC1 by Intel 82573E/V; NIC2 by Intel 82541PI
Erweiterungssteckplätze: 1x PCI-E x8; 1x PCI-E x4 (mech. x8), 1x PCI-E x1 (mech. x4); 2x PCI (32Bit, 33MHz, 3.3V)
Intern: Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA2 Ports (bis zu 3GBit/s) für bis zu vier SATA Geräte
1 x IDE Connector for up to 2 ATA-100 devices
1 x Floppy port Connector
1 x 4-pin CPU FAN Connector
2 x 3-pin SYS FAN Connectors (SYS1+SYS3)
2 x 4-pin SYS FAN Connectors (SYS2+SYS4)
1 x USB-Anschluss Connector für 2 weitere USB2.0 Ports z.B. via Blende
1 x 24-pin Power Connector
1 x 8-pin 12V Processor Supply Connector
1 x Buzzer
1 x RMC Connector
1 x HSPP Connector
1 x Front Panel Connector
1x CMOS Jumper
Externe Anschlüsse: 1x VGA Sub-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Seriell, 2x GB LAN, 2x USB2.0
Hardware Monitoring by SMsC* LP47M182NR
Formfaktor: ATX ca. 305 x 245 mm
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
