Products description

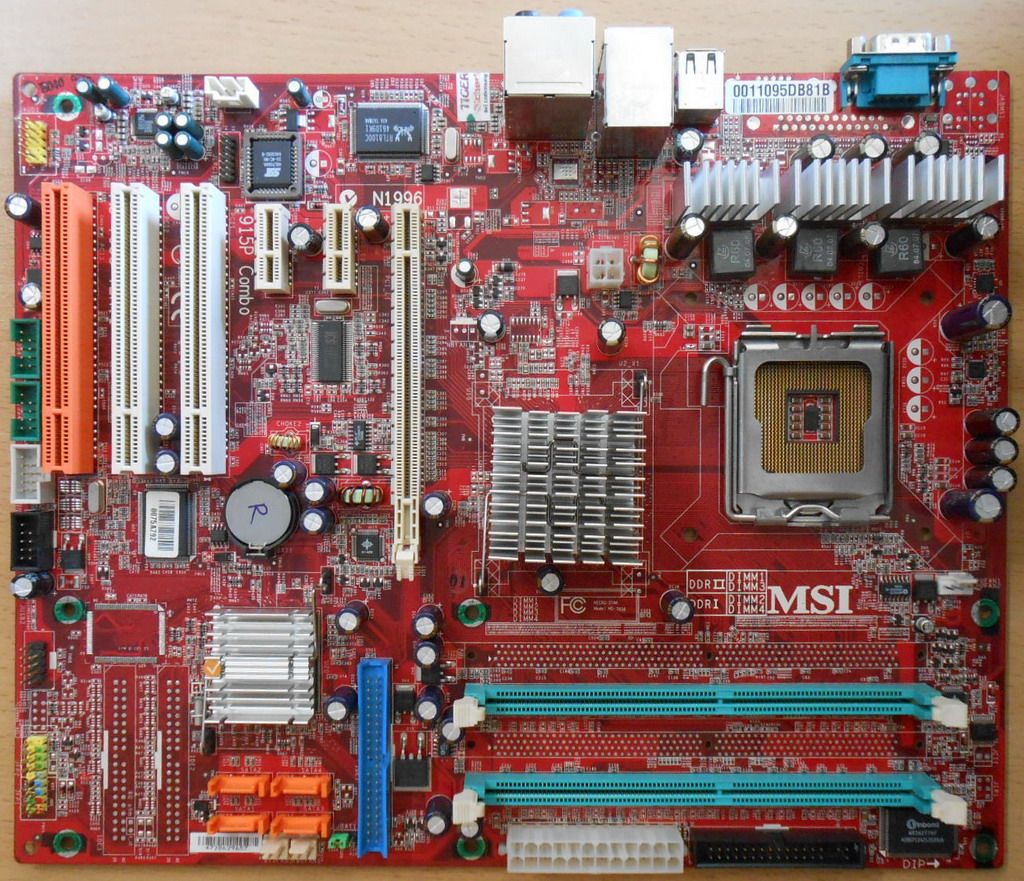

MSI MS-7058 Ver:1 915P Combo Mainboard + Blende Sockel 775 PCIe SATA FSC-OEM
Technische Daten
CPU
Supports Intel® Pentium 4 Prescott LGA775 processors in LGA775 package
Supports up to Pentium 4 3XX, 5XX & 7XX sequence processor or higher speed
Supports Intel Hyper-Threading Technology
Chipset
Intel® 915P chipset
- Supports FSB 533/800MHz.
- Supports PCI Express x16 interface
Intel® ICH6 chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports
- 4 x Serial ATA ports with transfer rate up to 1.5Gb/s
- 1 x channel Ultra ATA 100 bus Master IDE controller
- PCI Master v2.3, I/O APIC
- ACPI 2.0 Compliant
Main Memory
Supports two DDR1 SDRAM
Supports up to 2GB memory size
Supports Dual channel DDR1 memory architecture
Slots
1 x PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)
2 x PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant)
3 x 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE & SATA
One Ultra DMA 66/100 IDE controllers integrated in ICH6
- Supports PIO, Bus Master operation modes. Can connect up to Two Ultra ATA drives
Serial ATA 150 controller integrated in ICH6
- Up to 150MB/sec transfer speed. Can connect up to four Serial ATA devices
On-Board Peripherals include
1 x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x serial port
3 x IEEE1394 Firewire header for optional IEEE1394 ports
1 x Front Audio header
1 x Line-In / Line-Out / MIC-In / Rear Speaker Out / Center-Subwoofer Speaker Out / SPDIF-Out optical and coaxial audio port
8 x USB2.0 ports (4 x Rear/ 4 x Front via two USB2.0 header onboard)
1 x RJ-45 LAN jack
1 x CPU Fan connector
1 x System Fan connector
1 x Power Fan connector
Audio
Azalia link controller integrated in Intel® ICH6 chipset
8-channel audio codec CMedia CMI9880L
- Compliance with Azalia 1.X Spec
- Supports Multi-Streaming function
- Supports Universal Audio Jack (only Front Audio Jack)
LAN
Realtek® 8100C Integrated 10/100Mb/s Fast Ethernet MAC and PHY in one chip
- Compliance with PCI 2.2. Supports ACPI Power Management.
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Mounting and Dimension
ATX Form Factor; 30.5 cm (L) x 24.4 cm (W)
9 mounting holes
Lieferumfang

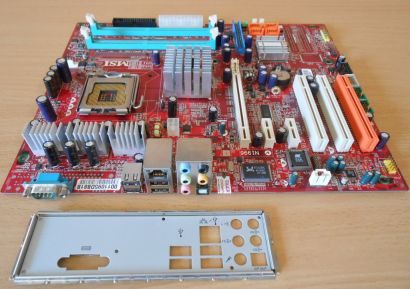

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
