Products description

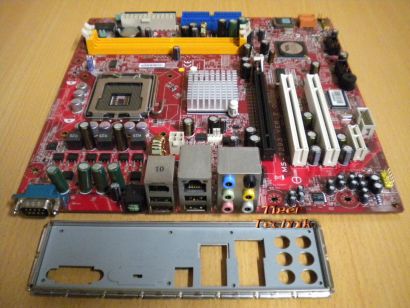

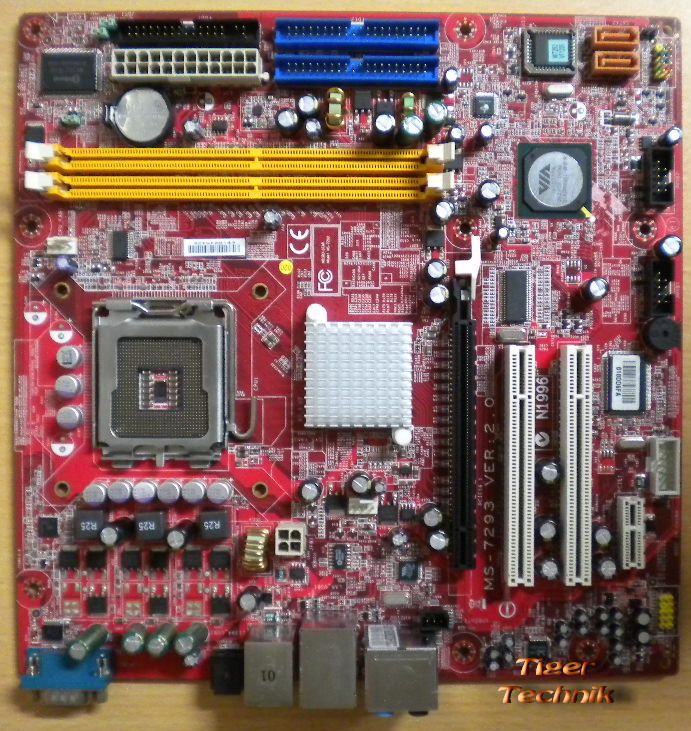

MSI MS-7293 VER 2.0 Mainboard mit Blende
Processor Support
- Supports Intel® Pentium 4, Pentium D, Celeron D and intel® CoreTM 2 Duo processors in the LGA775 package.
- Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control.
- Supports EIST Technology
- Supports Hyper-Threading (HT) Technology
- Supports Intel Dual Core Technology
Supported FSB
- 533/800/1066 MHz
Chipset
- North Bridge: VIA®
PT890
- South Bridge: VIA®
8237A
Memory Support
- DDRII 400/533 SDRAM (2GB Max)
- 2 DDRII DIMMs (240pin / 1.8V)
LAN
- Supports LAN 10/100 Fast Ethermet by VIA® VT6103L
IEEE 1394
- Chip integrated by VIA VT6308
Audio
- Chip integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.x HD audio.
IDE
- 2 ports (4 IDE channels).
- Supports Ultra DMA 33/66/100/133 mode
- Supports PIO, Bus Master operation mode
SATA
- 2 SATA ports
- Supports 2 SATA devices.
- Supports storage and data transfers at up to 150 MB/s
Floppy
- 1 floppy port
- Supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
Backpanel
- 1 serial port (COM1)
- 1 IEEE 1394 port
- 4 USB 2.0 Ports
- 1 LAN jack
- 6 flexible audio jacks
- 1 SPDIF Out connector
On-Board Pinheaders
- 1 front Audio pinheader
- 1 SPDIF-out pinheader
- 1 IEEE 1394 pinheaders
- 2 USB 2.0 pinheaders
- 1 front panel pinheader (JFP1)
Slots
- 1 PCI Express x16 slot
- 1 PCI Express x1 slot
- 2 PCI slots.
- Support 3.3V/ 5V PCI bus Interface
Form Factor
- Micro-ATX (24.4cm X 24.4cm)
Mounting
- 8 mounting holes
Lieferumfang
MSI MS-7293 Mainboard + Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
