Products description

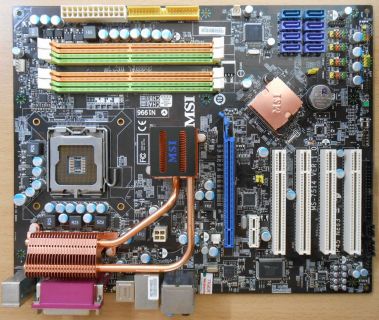

MSI P45 Neo3-FR MS-7514 Ver 1.0 Mainboard + Blende Intel P45 Sockel 775 DDR2 8x SATA IDE PCIe
Technische Daten
CPU
Supports Intel® Core 2 Extreme / Core 2 Quad / Core 2 Duo based processors in LGA775 package
Supports Intel® Yorkfield, Wolfdale in the LGA775 package
Supports FSB 1600* (OC)/1333/1066/800 MHz
Please refer to CPU Support List for compatible CPU; the above description is for reference only
Chipset
Intel® P45 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz
Intel® ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports
- 6 x SATAII ports with transfer rate up to 3Gb/s
- PCI Master v2.3, I/O APIC
- ACPI 2.0 compliant
- Serial ATA RAID 0/1/5/10 (ICH10R)
- Integrated AHCI controller
Main Memory
Supports 4 unbuffered DIMM of 1.8 Volt DDR2 667/800/1066* (OC) SDRAM, 16GB Max.
(To support 16GB max, please check the criteria at Intel website)
Slots
1 x PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant)
1 x PCI Express x1 slot (Supports PCI Express Bus specification v1.0a compliant)
4 x 32-bit v2.3 master PCI bus slots (Supports 3.3v/5v PCI bus interface)
On-Board IDE/SATA
1 x Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363 (Supports PIO, Bus Master operation modes. Can connect up to two Ultra ATA drives)
SATAII controller integrated in ICH10R + JMicron® 363 chipset (Up to 3Gb/s transfer speed)
Supports 6 x SATAII ports by ICH10R (Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R SATA1~6)
Supports 2 x SATAII ports by JMicron 363 (Supports SATA RAID 0/1/JBOD by JMicron 363 SATA7~8)
Realtek® ALC888 Audio Chipset integrated
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
Meet Microsoft Vista Premium specs
LAN
Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C
Internal I/O Connectors
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
1 x 4-pin CPU FAN connector
2 x 3-pin System FAN connectors
1 x CD-in connector
1 x Front panel audio connector
1 x Front panel connector
1 x Speaker / Front LED connector
1 x Chassis intrusion connector
4 x USB 2.0 connectors
1 x Floppy disk drive connector
8 x Serial ATA II connectors
1 x ATA133 connector
1 x SPDIF-Out connector
1 x Clear CMOS Jumper
2 x HW-OC FSB jumpers
1 x TPM module connector
1 x JSPI1 connector
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel port
1 x Serial port
4 x USB 2.0 ports
1 x RJ45 LAN jack
1 x 6 in 1 audio jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
30.5cm(L) x 24.5cm(W); ATX Form Factor
Mounting
9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
