Products description

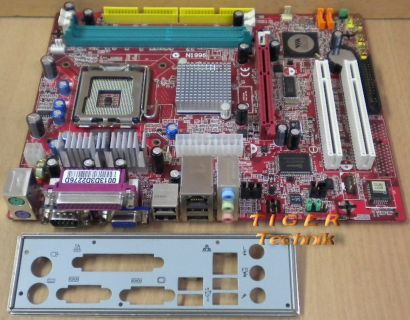

MSI PM8M2-V MS-7071 Ver1 Mainboard + Blende
Sockel 775 DDR AGP VGA LAN Audio
Technische Daten
CPU
Supports Intel Pentium 4 Prescott processor (LGA775) in LGA775 package
Supports up to 3.4GHz, FSB@800/533MHz
(For the latest information about CPU, please visit our Web site at http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
VIA P4M800 chipset
64 bit P4 processor FSB I/F (800MHz)
64 bit DDR SDRAM memory I/F (333/400MHz)
32 bit AGP I/F (66MHz) for 8x/4x mode
Supports 8X V-Link
VIA VT8237R chipset
Integrated Hardware Sound Blaster/Direct Sound AC97 audio
Ultra DMA 66/100/133 master mode PCI EIDE controller
Supports USB 2.0 up to 8 ports
ACPI & PC2001 compliant enhanced power management
Main Memory
Supports four memory banks using two 184-pin DDR DIMMs
Supports up to 2GB DDR333/400 SDRAMs
Supports 2.6v DDR SDRAM
(For the updated supporting memory modules, please visit our Web site at http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
1 x AGP (Accelerated Graphics Port) 3.0 8X slot
2 x PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)
Onboard IDE
An IDE controller integrated in the VIA VT8237R chipset providing IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. Can connect up to four IDE devices
On-Board Peripherals
1 x floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x Serial port (COM A)
1 x Parallel port supports SPP/EPP/ECP mode
8 x USB 2.0 ports (Rear x4 / Front x4)
Audio ports in vertical
1 x RJ45 LAN jack
1 x COM B pin header
2 x SATA 150
Audio
AC97 link controller integrated in VT8237R
Realtek ALC655 6-Channel software audio codec
Compliant with AC97 v2.2 spec.
LAN
Realtek 8201CL
Integrated Fast Ethernet PHY
Supports 10MB/s, 100MB/s
Compliant with PCI 2.2
Supports ACPI Power Management
BIOS
The mainboard BIOS provides Plug & Play BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
Dimension
Micro-ATX Form Factor: 245mm x 190mm
Mounting
6 standard mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
