Produktbeschreibung

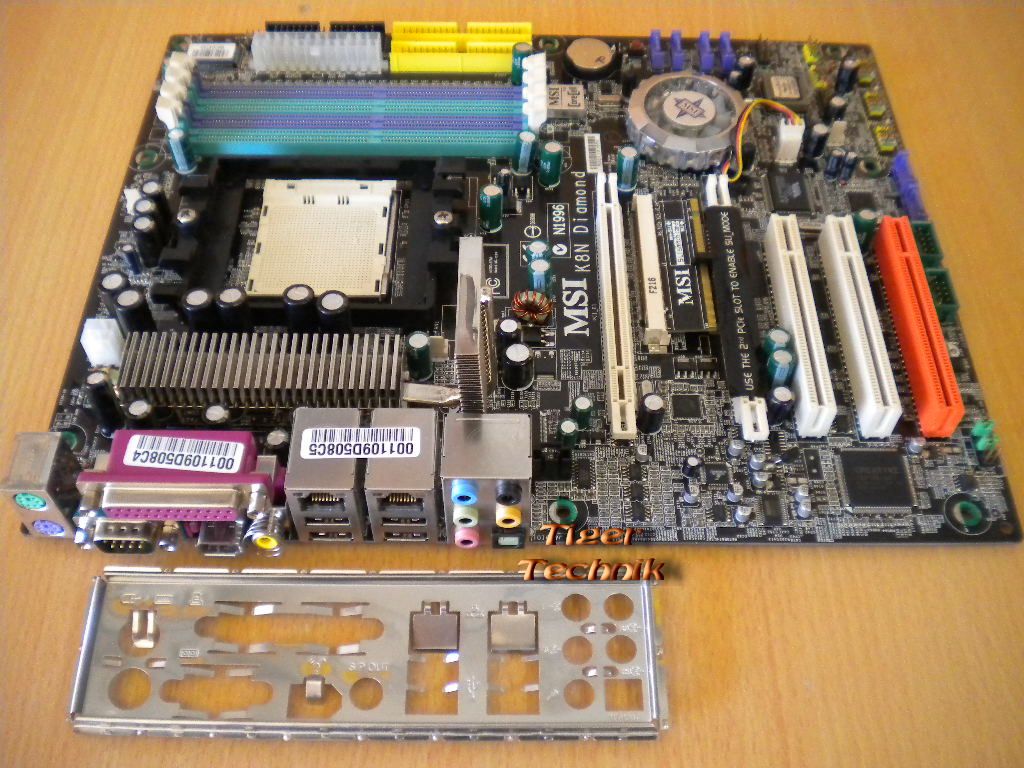

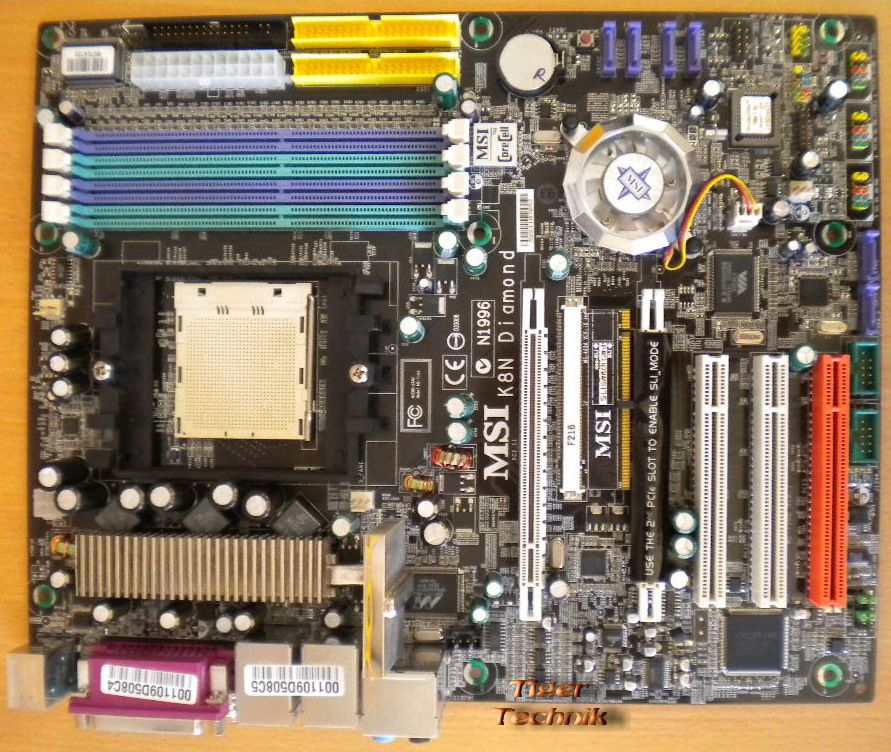

MSI K8N Diamond MS-7100 Ver1 Mainboard + Blende
Technische Daten
CPU
Supports Socket-939 for AMD K8 Athlon 64 FX / Athlon 64 (Socket939) processor
Supports up to 4000+ Athlon FX55 , or higher CPU
(For the latest information about CPU, please visit http://www.msi.com.tw/program/
products/mainboard/mbd/pro_mbd_cpu_support.php)
Chipset
nVIDIA nForce4 SLI
- HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU
- HyperTransport supporting speed up to 1GHz (2000MT/s)
- Supports 2 PCI Express x16/ x1 interface
- Two independent SATA controllers
- Dual Fast ATA-133 IDE controllers
- IEEE802.3 nVIDIA MAC for 1000BASE-T
Main Memory
Supports dual channel, eight memory banks DDR 266/333/400, using four 184-pin DDR DIMMs
Supports a maximum memory size up to 4GB
Supports 2.5v DDR SDRAM DIMM
(For the updated supporting memory modules, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_trp_list.php.)
Slots
2x PCI Express x16 slots (supports PCI Express Bus specification v1.0a compliant)
2nd PCI Express x16 slot (PCI_E3) is compatible with PCI Express x1
Three 32-bit Master PCI Bus slots, includes one orange slot which is reserved as a communication slot.
Support 3.3V/5V PCI bus Interface
On-Board IDE
An IDE controller on the nVIDIA® nForce4 SLI chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes.
Can connect up to 4 IDE devices.
On-Board SATA
NV RAID supports 4 SATA II ports (SATA1-4). Transfer rate is up to 300 MB/s.
Supports RAID 0, 0+1 and JBOD mode.
Silicon Image’s SATA RAID supports another 2 SATA II ports (SATA5/6). Transfer
rate is up to 300 MB/s. Supports RAID 0 & 1 mode.
USB Interface
10 USB ports
- Controlled by nForce4 SLI chipset
- 4 ports in the rear I/O, 6 ports via the external bracket
Dual LAN
Supports dual LAN jacks
- 1st LAN supports 10/100/1000 Fast Ethernet by nForce4 SLI
- 2nd PCI Express LAN supports 10/100/1000 Fast Ethernet by Marvell 88E8053
IEEE 1394
Supports up to three 1394 ports (rear panel x 1, pinheader x 2). Transfer rate is up to 400Mbps
Audio
Power by Creative Sound Bluster 24 bits H/W audio
- 24-bit / 96~192 KHz audio quality
- Up to 100 db SNR clarity
- 7.1 Channel output supported, Dolby Digital decoder
- Supports S/PDIF digital interface
- PCI 2.3 Specification compliant
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port (COM1)
- 1 parallel port supporting SPP/EPP/ECP mode
- 1 Audio jack(5-in-1), coaxial/fiber SPDIF out
- 1 D-Bracket 2 pinheader
- 1 CD-In pinheader
- 3 IEEE 1394 (Rear * 1 / Front * 2)
- 10 USB1.1/2.0 ports (Rear * 4 / Front * 6)
- 1 IrDA pinheader
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD.
Dimension
ATX Form Factor (30.4 cm X 24.4 cm)
Mounting
9 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * 2x Orig. MSI IDE ATA133 Kabel + 2x Orig. MSI SATA Kabel * gebraucht *
Abbildung ähnlich
