MSI MS-7093 Ver 1.0 RS480M2 Mainboard +Blende Sockel 939 PCIe DDR LAN VGA* m875

MSI MS-7093 Ver 1.0 RS480M2 Mainboard + Blende Sockel 939 PCIe DDR LAN VGA

Technische Daten

CPU

Supports 64-bit AMD® Athlon 64 and Athlon 64 FX processor (Socket 939)

Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU

(For the latest information about CPU, please visit the MSI Website)

Chipset

ATI® RS480/RX480 Chipset

- HyperTransportTM connection to AMD K8 Athlon64 processor

- 8 or 16 bit control/address/data transfer both directions

- 1000/800/600/400/200 MHz “Double Data Rate” operation both direction

- Compliant with PCI Express 1.0a specifications (one x16 graphics interface, which can be divided into two smaller links for use by other devices)

- Graphic integrated (RS480)

ATI® SB400 Chipset

- Supports dual channel native SATA controller up to 150MB/s with RAID 0 or 1

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI & PC2001 compliant enhanced power management

- Supports USB2.0 up to 8 ports

Main Memory

Supports dual channel, eight memory banks DDR 333/400, using four 184-pin DDRDIMMs

Supports a maximum memory size up to 4GB without ECC

Supports 2.5v DDR SDRAM DIMM

(For the latest information about RAM, please visit the MSI Website)

Slots

1 x PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

3 x 32-bit Master 3.3V/5V PCI Bus slots

Onboard IDE

An IDE controller on the ATI® SB400 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes. Can connect up to 4 IDE devices.

Onboard Serial ATA

4 x SATA ports with up to 150MB/s transfer rate

USB2.0 Interface

8 x USB2.0 ports (4 ports in the rear I/O, 4 ports via the external bracket)

LAN

Realtek® 8100C 10/100 LAN chip

- Integrated Fast Ethernet MAC and PHY in one chip

- Supports 10Mb/s and 100Mb/s

- Compliance with PCI v2.2

- Supports ACPI Power Management

IEEE 1394

VIA® 6307 IEEE 1394 controller: Transfer rate is up to 400Mbps

Supports up to two 1394 ports (1 x rear panel, 1 x pinheader)

Audio

RealTek ALC658C 6-channel software audio codec

- Compliance with AC97 v2.3 Spec.

- Meets PC2001 audio performance requirement.

Internal I/O Connectors

1 x Floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

1 x 3-pin CPU FAN connector

1 x 3-pin SYS FAN connector

1 x Serial Port COM1 connector

2 x IDE ports support up to 4 IDE devices

4 x Serial ATA ports up to 4 SATA devices

1 x 24-pin ATX Power connector

1 x 4-pin CPU Power connector

1 x Front Panel connector

1 x Front Audio connector

1 x AUX connector

1 x CD-In connector

1 x IEEE1394 Firewire connector

2 x USB2.0 connector for up to 4 ports

Back Panel I/O Ports

1 x Parallel port (supporting SPP/EPP/ECP mode)

1 x PS/2 keyboard

1 x PS/2 mouse

1 x IEEE1394 Port

3 in 1 audio jack (Line-In/Line-Out/MIC)

4 x USB 2.0 ports

1 x RJ45 LAN jack

1 x Sub-D VGA port

1 x Composite TV-Out connector

1 x S-Video connector

1 x SPDIF-Out connector

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Supports boot from LAN, USB Device 1.1 & 2.0, and SATA HDD.

Dimension

Micro-ATX Form Factor: 24.4cm X 24.4cm

Mounting

8 mounting holes

Lieferumfang

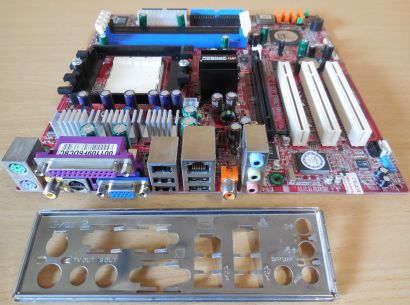

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
