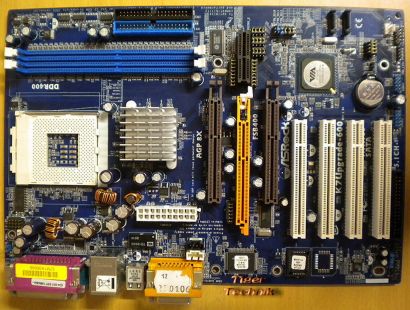

ASRock K7Upgrade-600 Rev 1.04 Mainboard + Blende Sockel A 462 AGP 8X SATA* m549

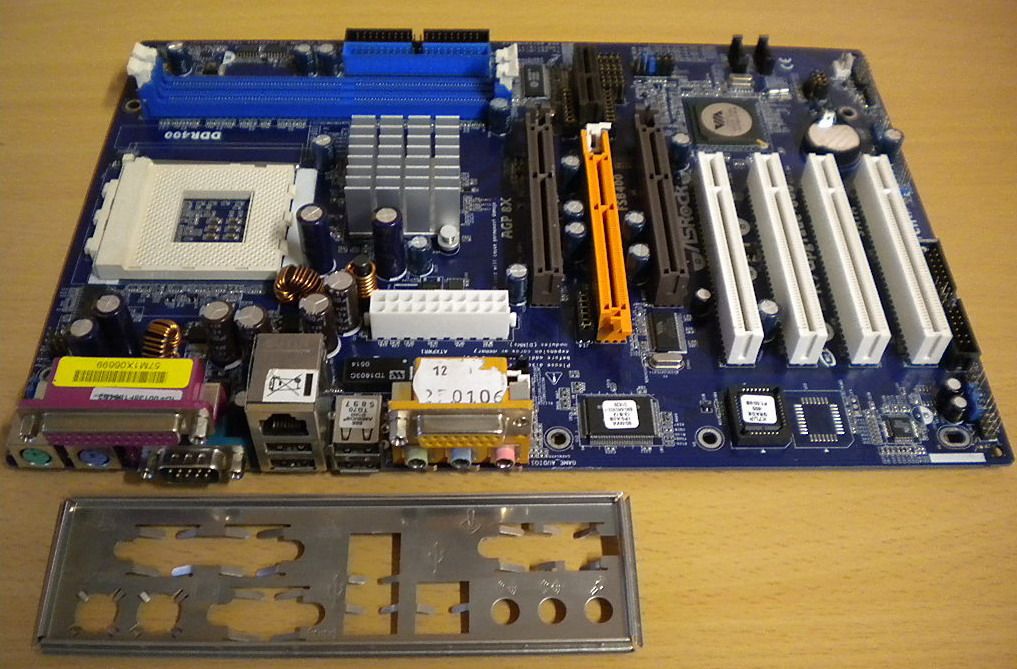

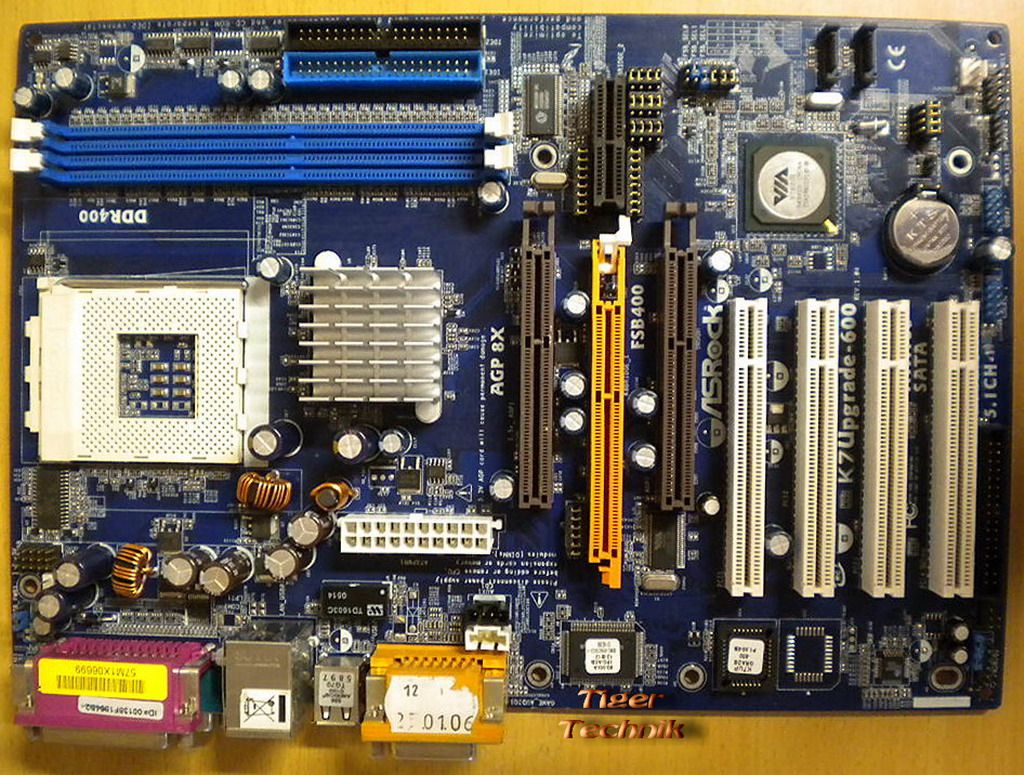

ASRock K7Upgrade-600 Rev 1.04 Mainboard + Blende

mit Future CPU Port für CPU Upgrade-Karte auf Sockel 754 K8(nicht im Lieferumfang). Bei Einbau bitte AGP Ports beachten!

Technische Daten

CPU

- Socket A (462) for AMD Athlon XP/Athlon/Duron/Sempron processor

- FSB 400/333/266 MHz

Chipset

- Northbridge: VIA® KT600

- Southbridge: VIA® 8237

Memory

- Supports DDR400/333/266 non-ECC, un-buffered memory

- DIMM slots: 2

- Max. capacity of system memory: 2GB

BIOS

- 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

- CMedia CMI9761A 6 channel AC'97 audio codec

LAN

- VIA® 6103 10/100 Ethernet LAN PHY

- 802.3u, WOL supported

- Supports PXE

Slots

- ASRock K8 Bridge Port (Orange-colored): Flexible Socket754 upgrade interface for ASRock 754Bridge card

- AGP1: AGP8X slot for socketA(462)

- AGP2: AGP8X slot for socket754

- 4 x PCI slots( PCI 2.3 compliance)

Connector

- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin +12V ATX power connector

- Power/ IDE LED connector

- CD/AUX audio in header

- Front panel audio connector

- 2 x USB 2.0 port pin header

Rear Panel I/O

ASRock I/O

- 4 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x Serial port (COM1)

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x Audio ports ( Line In/Out, Mic In)

- 1 x Game/MIDI port

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless control

- CPU Multiplier

- CPU Vcore Adjustment

- ASRock U-COP

- Boot Failure Guard (B.F.G)

Form Factor

- ATX, 305mm x 208mm

OS

- Microsoft® Windows® 98SE/ME/2000/XP compliant

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
