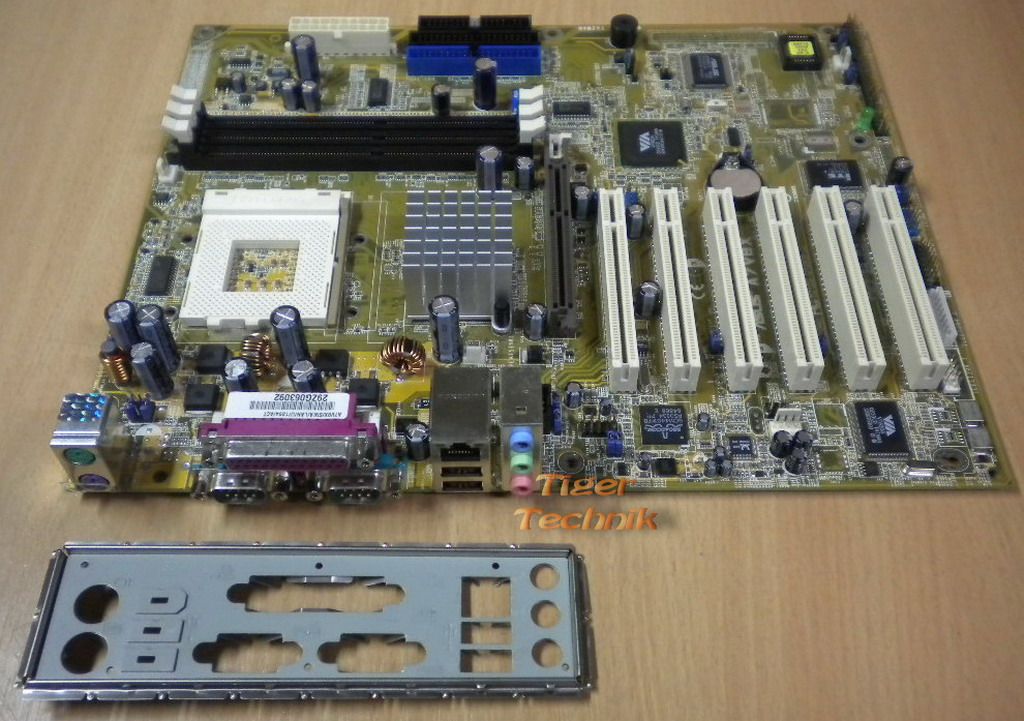

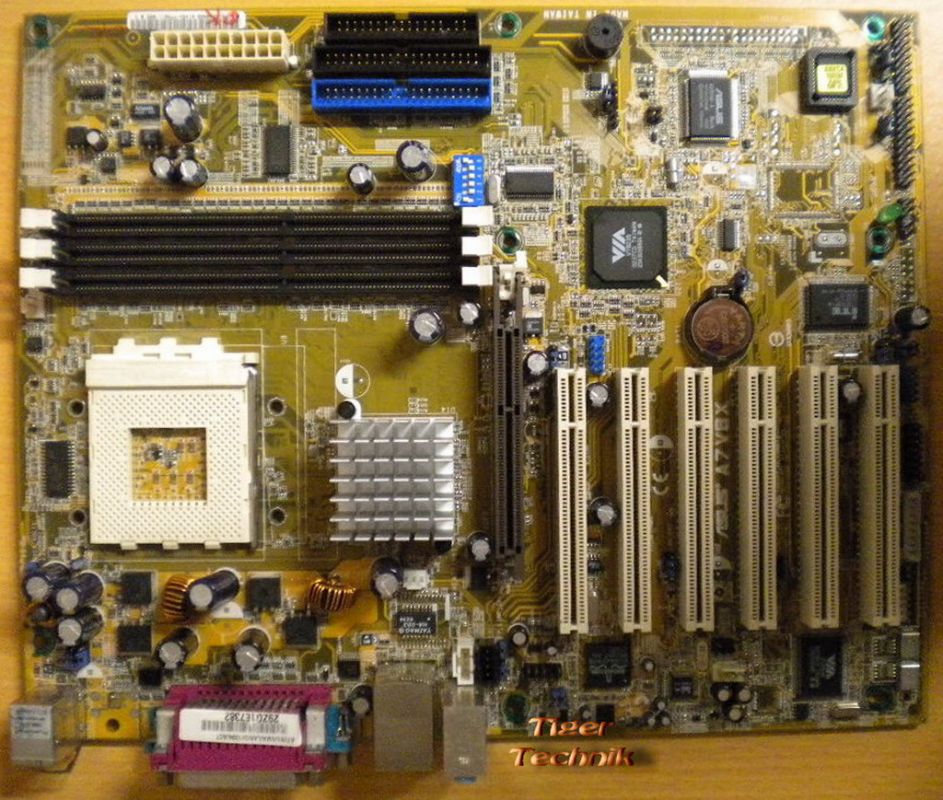

Asus A7V8X rev. 1.02 Actebis-OEM mit Blende
Auch passend für Vobis, 4MBO oder weitere PC´s mit dem Asus A7V8X Mainboard!
Technische Daten
CPU
Socket A for AMD Thoroughbred Athlon™ XP/Athlon™ / Duron™
600 MHz - 2.4GHz+
Chipset
North Bridge: VIA KT400
South Bridge: VIA VT8235
Front Side Bus
333 / 266 / 200 MHz
Memory
3 x 184-pin DIMM Sockets
Max. 3 GB unbuffered PC2100/PC1600 non-ECC DDR RAM Memory
(Note: PC2700 max. 2 DIMM support only. PC3200 max. 1 DIMM support only)
Expansion Slots
1 x AGP 8X
6 x PCI
IDE
2 x UltraDMA 133/100/66/33
Audio
Realtek® 6-channel CODEC
LAN
1 Ports
Broadcom 10/100 Mbps Ethernet controller
Special Features
Power Loss Restart
Q-Fan Technology
STR (Suspend-to-RAM)
C.O.P. (CPU Overheating Protection)
CPU Throttle
Back Panel I/O Ports
1 x Parallel
2 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O
2 x USB 2.0
1 x RJ45 LAN Port
Internal I/O Connectors
2 x USB 2.0 connector support additional 2 USB 2.0 ports
CPU/Chassis FAN connectors
Game Connector
20 pin ATX power connector
IDE LED connector, power LED connector
WOR, WOL, Chassis Intrusion, SM Bus, SIR
Headphone (optional)
Front MIC
CD/AUX/Modem audio in
Front Panel Audio connector (optional)
BIOS
4Mb Flash ROM, Award BIOS, TCAV, PnP
Industrial Standard
PCI 2.2, USB 2.0
Manageability
WfM2.0, DMI 2.0, Chassis Intrusion
Form Factor
ATX Form Factor
12" x 9.6" (30.5cm x 24.5cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
