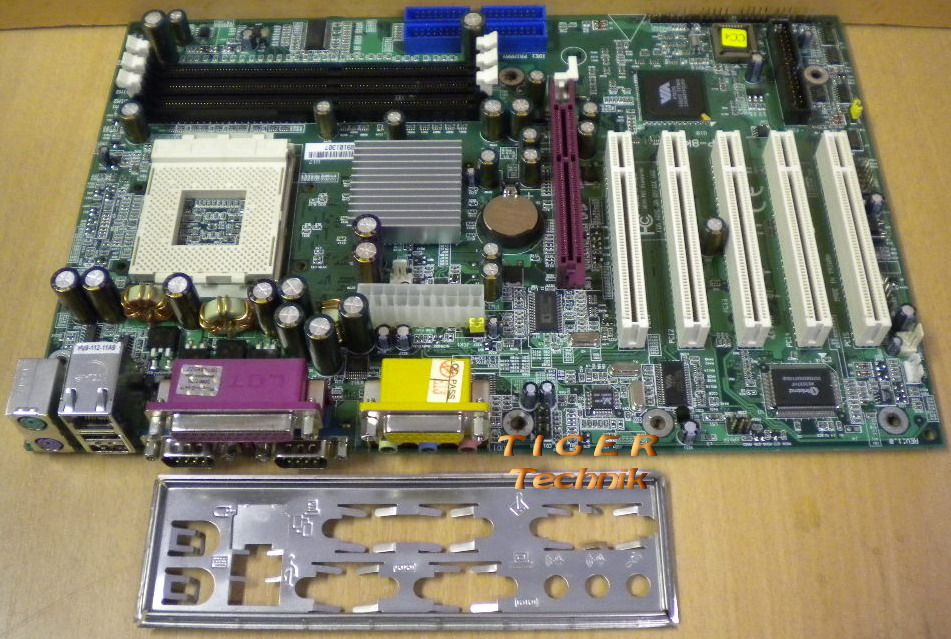

EPoX EP-8K9AI Mainboard Sockel 462 AGP PCI KT400 + Blende* m222

EPoX EP-8K9AI Mainboard Sockel 462

AGP PCI KT400 + Blende

Technische Daten:

Form Factor      integrated

Product Type      Motherboard - ATX

Chipset Type      VIA Apollo KT400, VIA Apollo KT400

Compatible Processors      Athlon, Duron, Athlon XP, Athlon, Duron, Athlon XP

Processor Socket      Socket A, Socket A

Max Bus Speed      333 MHz, 333 MHz

Max Processors Qty      1, 1

Manufacturer       Epox

Expansion Slot(s)        5 x PCI, 1 x AGP 8x ( 1.5 V ), 1 x CPU, 3 x DIMM 184-pin ( 2.5 V )

Interfaces:

1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x parallel, 2 x serial, 4 x USB 2.0, 1 x LAN, 1 x microphone - mini-jack, 1 x audio line-out/headphones - mini-jack, 1 x audio line-in - mini-jack, 1 x gameport / MIDI - generic - 15 pin D-Sub (DB-15)

Storage Interfaces:

ATA-133 - connector(s): 2 x 40pin IDC, ATA-133 - connector(s): 2 x 40pin IDC

Internal Interfaces:

1 x floppy, 1 x floppy

RAM:

Bus Clock 333 MHz, 266 MHz, 200 MHz, 333 MHz, 266 MHz, 200 MHz

Speed PC2700, PC2100, PC1600, PC2700, PC2100, PC1600

Technology DDR, DDR

Max Size 3 GB, 3 GB

MAINBOARD FEATURES:

BIOS Type      Award

BIOS Features      ACPI 1.0 support, APM support

Sleep / Wake Up      RTC (real-time clock) wake up, wake on ring (WOR), keyboard wake up, mouse wake up, suspend to RAM (STR), suspend to disk, wake on LAN (WOL), wake on PCI device, wake on USB port, wake on modem (WOM)

Manual Settings      AGP slot voltage, CPU frequency, FSB ratio (CPU:memory), memory voltage, processor core voltage

Hardware Monitoring      CPU core temperature, CPU core voltage, CPU fan tachometer, chassis fan tachometer, power supply fan tachometer, system voltage

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
