Gigabyte GA-78LMT-S2P Rev 3.1 Mainboard +Blende AMD 760G Sockel AM3+ DDR3* m1046
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Gigabyte GA-78LMT-S2P Rev 3.1 Mainboard +Blende AMD 760G Sockel AM3+ DDR3* m1046

Gigabyte GA-78LMT-S2P Rev 3.1 Mainboard +Blende AMD 760G Sockel AM3+ DDR3* m1046

Art.Nr: m1046
Lieferzeit: 3 Tage
GTIN/EAN: 4719331814182
Artikelzustand: gebraucht
HAN: GA-78LMT-S2P Rev 3.1
Hersteller: GIGABYTE

Dieser Artikel ist momentan nicht verfügbar
45,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten

Produktbeschreibung

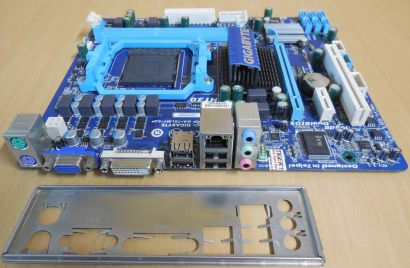

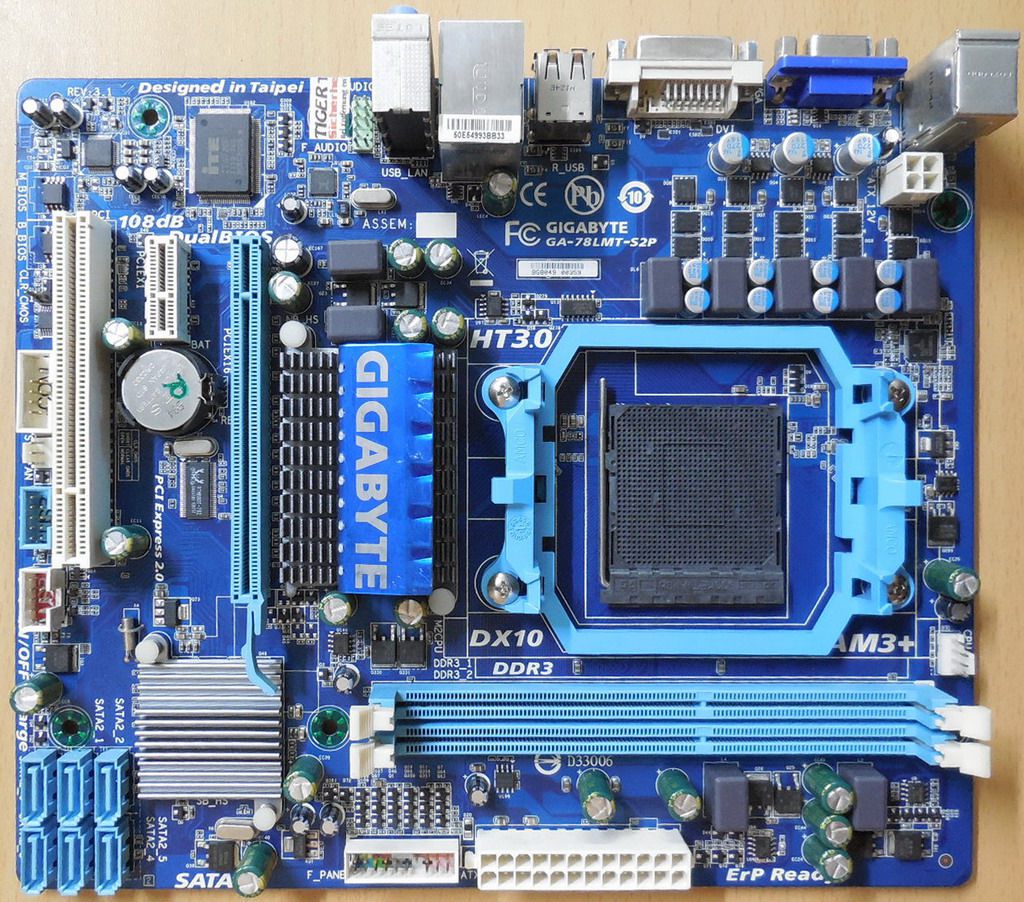

Gigabyte GA-78LMT-S2P Rev 3.1 Mainboard + Blende AMD 760G Sockel AM3+ DDR3

Technische Daten

CPU

Support for AMD Phenom™ II / AMD Athlon™ II AM3 processors

Support for AMD AM3+ processors

Hyper Transport Bus

HyperTransport™ 3.0

5200 MT/s

Chipset

AMD 760G North Bridge + AMD SB710 South Bridge

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 1333+(O.C.)/1066/800 MHz memory modules

Onboard Graphics

Integrated in the North Bridge

1 x D-Sub port

1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)

Audio

Realtek ALC889 High Definition Audio codec

2/4/5.1/7.1-channel (Note 3)

Gigabit LAN

Realtek 8111E chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard.)

1 x PCI Express x1 slots (conforms to PCI Express 2.0 standard.)

1 x PCI slot

Storage Interface

6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

USB

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

6 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 3-pin system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x serial port COM header

1 x clearing CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 2)

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

ITE IT8720 chip

H/W Monitoring

System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU overheating warning; CPU/System fan fail warning; CPU/System fan speed control (Note 4)

BIOS

2 x 16 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS; Q-Flash; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Note 5); Xpress BIOS Rescue; Smart Recovery; Auto Green; On/Off Charge; Q-share; Cloud OC

Operating System

Support for Microsoft® Windows® 7 / Vista / XP

Form Factor

Mirco ATX Form Factor; 24.4cm x 20.6 cm

Notes

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) The DVI-D port does not support D-Sub connection by adapter.

(Note 3) To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.

(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.

(Note 5) Available functions in EasyTune may differ by motherboard model.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
