MSI B450M PRO-VDH MAX MS-7A38 Ver8.1 Mainboard Sockel AM4 AMD B450 NEU OVP*m1157

MSI B450M PRO-VDH MAX MS-7A38 Ver 8.1 Mainboard Sockel AM4 AMD B450 NEU OVP

Technische Daten

CPU

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Please refer to the CPU Support List of the MSI Website for more information on compatible processors

CHIPSET

AMD® B450 Chipset

MEMORY

4 x DDR4 memory slots with support up to 64GB max.

3rd Gen AMD Ryzen™ Processors support DDR4 1866/2133/2400/2667 MHz by JEDEC and 2667/2800/2933/3000/3066/3200/3466/3733/3866 Mhz by A-XMP OC MODE

1st and 2nd Gen AMD Ryzen™ Processors support DDR4 1866/2133/2400/2667 Mhz by JEDEC and 2667/2800/2933/3000/3066/3200/3466 Mhz by A-XMP OC MODE

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Please refer to the MSI Website for more information on compatible memory

EXPANSION SLOTS

1 x PCIe 3.0 x16 slot

- 1st, 2nd and 3rd Gen AMD Ryzen™ support PCIe x16 mode

- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe x8 mode

- Athlon™ with Radeon™ Vega Graphics support PCIe x4 mode

2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K @60Hz

Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors

Maximum shared memory of 2048 MB

Graphics specifications may vary depending on the CPU installed.

STORAGE

4 x SATA 6Gb/s ports (Supports RAID 0, 1 and 10)

1 x M.2 slot (Key M)

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s

Supports 2242 / 2260 / 2280 storage devices

USB

by AMD® B450 Chipset

2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

by AMD® Processor

4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main Power connector

1 x 8-pin ATX 12V Power connector

1 x Parallel port connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x USB 3.1 Gen1 connectors (supports additional 2 USB 3.1 Gen1 ports)

1 x 4-pin CPU FAN connector

2 x 4-pin system fan connectors

1 x Front panel audio connector

1 x JFP1 System panel connector

1 x JFP2 System panel connector

1 x TPM module connector

1 x Clear CMOS jumper

1 x Chassis Intrusion connector

1 x 4-pin RGB LED strip connector

1 x JSPI1 header

1 x Serial port connector

4 x EZ Debug LEDs

BACK PANEL PORTS

1 x PS/2 Keyboard/Mouse Combo port

4 x USB 3.2 Gen1 Type-A ports

1 x LAN port

4 x USB 2.0 port

1 x HDMI™ port

1 x DVI-D port

1 x VGA port

3 x Klinke 3.5 HD Audio connectors

DIMENSIONS

ATX Form Factor; 9.6 in. x 9.6 in. (ca. 24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

Lieferumfang

Mainboard mit Zubehör laut Handbuch * ohne weiteres Zubehör * NEU & OVP *

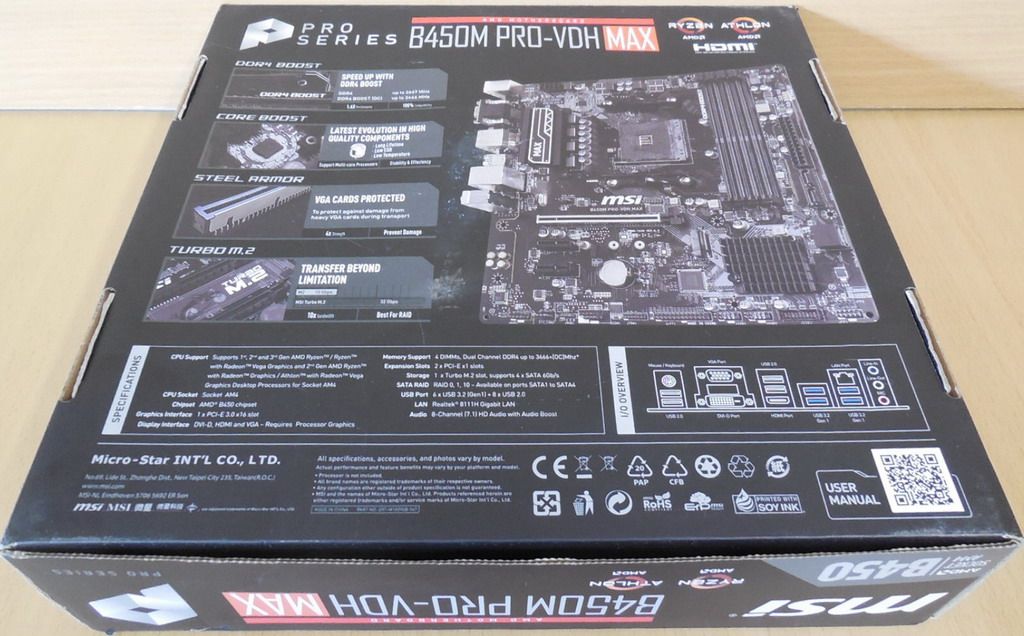

Originalbilder
