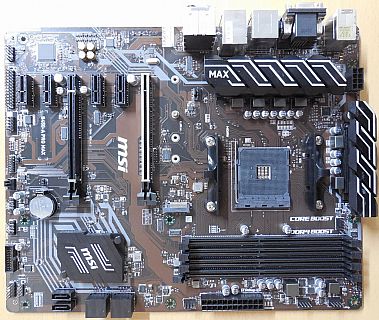

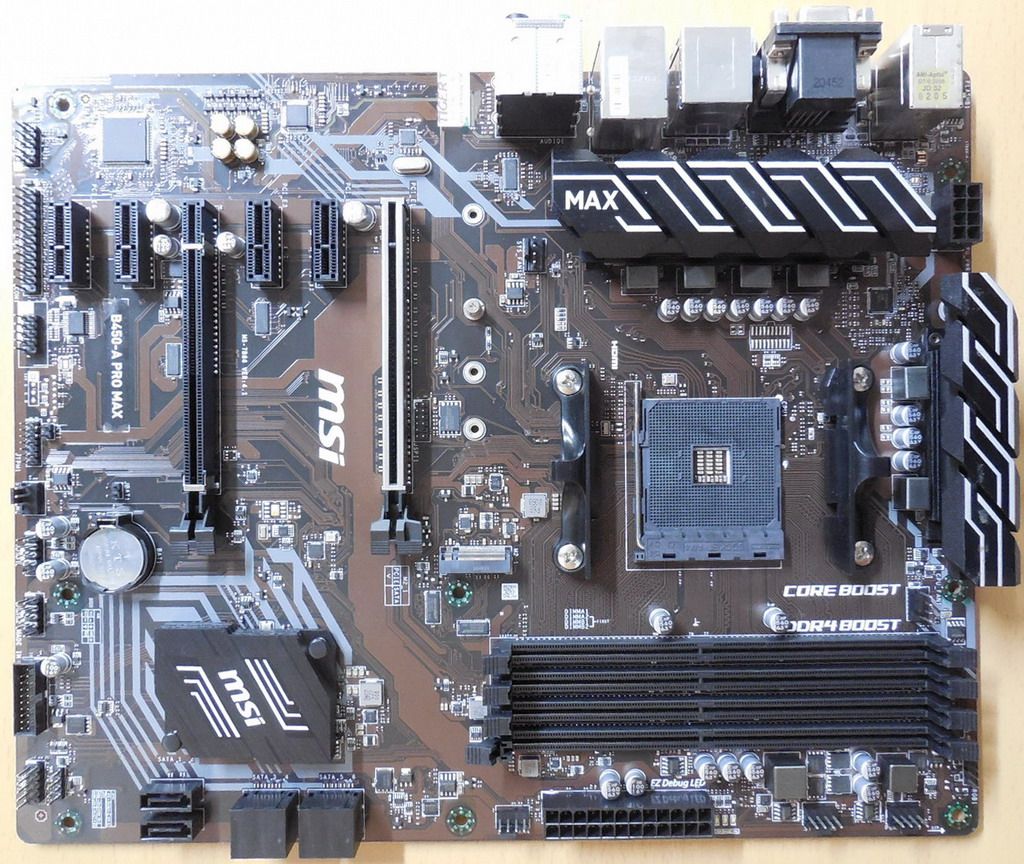

MSI B450-A PRO MAX MS-7B86 Ver 4.1 Mainboard +Blende AMD Sockel AM4 DDR4* m1160

MSI B450-A PRO MAX MS-7B86 Ver 4.1 Mainboard + Blende Sockel AM4 AMD B450 DDR4

Technische Daten

CPU

Supports 1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD® Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Die AMD® CPU Support-Liste finden Sie auf der MSI Webseite

Chipsatz

AMD® B450

Arbeitsspeicher

4 x DDR4 memory slots, support up to 64GB

Supports 1866 / 2133 / 2400 / 2667Mhz (by JEDEC)

Supports 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 4000 / 4133 MHz (by A-XMP OC MODE) for AMD® Ryzen™ Gen3 (R5/R7/R9)

Supports 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 MHz (by A-XMP OC MODE) for other AMD® CPU

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Die Liste qualifizierter Händler von Speichermodulen finden Sie auf der MSI Webseite

Erweiterungssteckplätze

1 x PCIe 3.0 x16 slot (PCI_E1):

- 1st, 2nd and 3rd Gen AMD® Ryzen™ support x16 mode

- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics support x8 mode

- Athlon™ with Radeon™ Vega Graphics support x4 mode

1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)

4 x PCIe 2.0 x1 slots

PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

Onboard Grafikanschlüsse

1 x VGA port, support a maximum resolution of 2048x1280@60Hz,1920x1200@60Hz

1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz

1 x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K@60Hz

Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics processors

Maximum shared memory of 2048 MB

Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Speicher

by AMD® CPU       2 x SATA 6Gb/s ports, 1 x M.2 slot (Key M)

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242 / 2260 / 2280 / 22110 storage device

by AMD® B450 Chipset       4 x SATA 6Gb/s ports

SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN

1 x Realtek® 8111H Gigabit LAN controller

Audio

Realtek® ALC897 7.1-Channel High Definition Audio Codec

USB

by AMD® B450 Chipset

2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

by AMD® CPU

2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Rückseite E/A-Anschlüsse

1 x Flash BIOS Taste

2 x USB 3.2 (Gen2) Anschlüsse

2 x USB 3.2 (Gen1) Anschlüsse

2 x USB 2.0 Anschlüsse

1 x LAN (RJ-45) Anschluss

1 x VGA Anschluss

1 x DVI-D Anschluss

1 x HDMI™ Anschluss

1 x PS/2 Maus/Tastatur Anschluss

6 x HD Audio-Buchsen

Interne Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 x USB 2.0 ports)

1 x USB 3.2 Gen1 connectors (support additional 2 x USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Serial port connector

1 x Parallel port connector

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

1 x 5050 RGB LED strip 12V connector

4 x EZ Debug LEDs

Betriebssystem

Windows® 10 64-bit

Formfaktor & Montage

ATX Formfaktor, 12 Zoll x 9,6 Zoll (30,5 cm x 24,4 cm), 9 x Befestigungslöcher

Lieferumfang

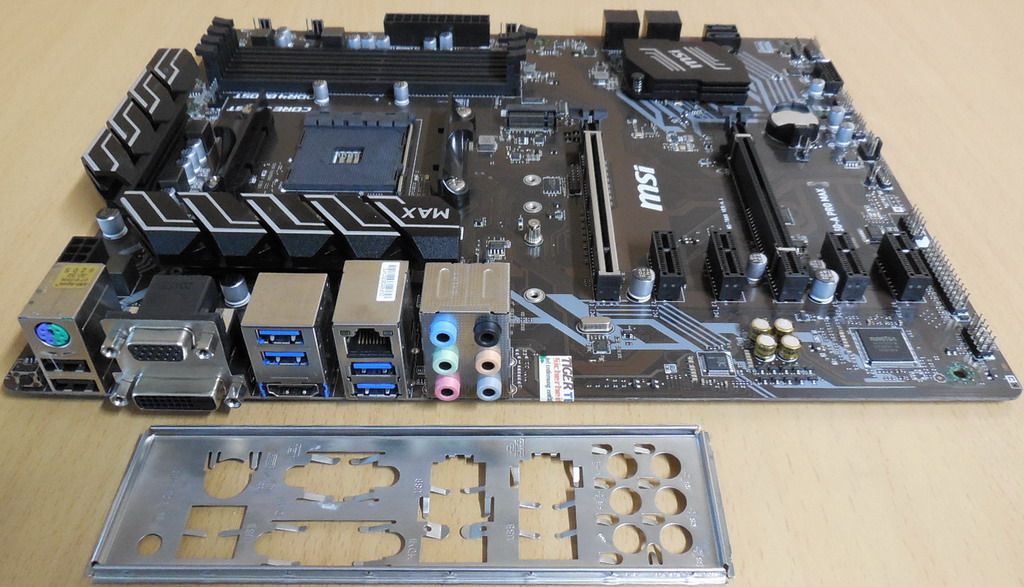

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
