Chaintech 6ATA2-E100A Mainboard +Blende Slot 1 Apollo133A 2x ISA AGP Audio*m709
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Chaintech 6ATA2-E100A Mainboard +Blende Slot 1 Apollo133A 2x ISA AGP Audio*m709

Chaintech 6ATA2-E100A Mainboard +Blende Slot 1 Apollo133A 2x ISA AGP Audio*m709

Art.Nr: m709
Lieferzeit: 3 Tage
Lagerbestand: 0
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
49,95 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten


Produktbeschreibung

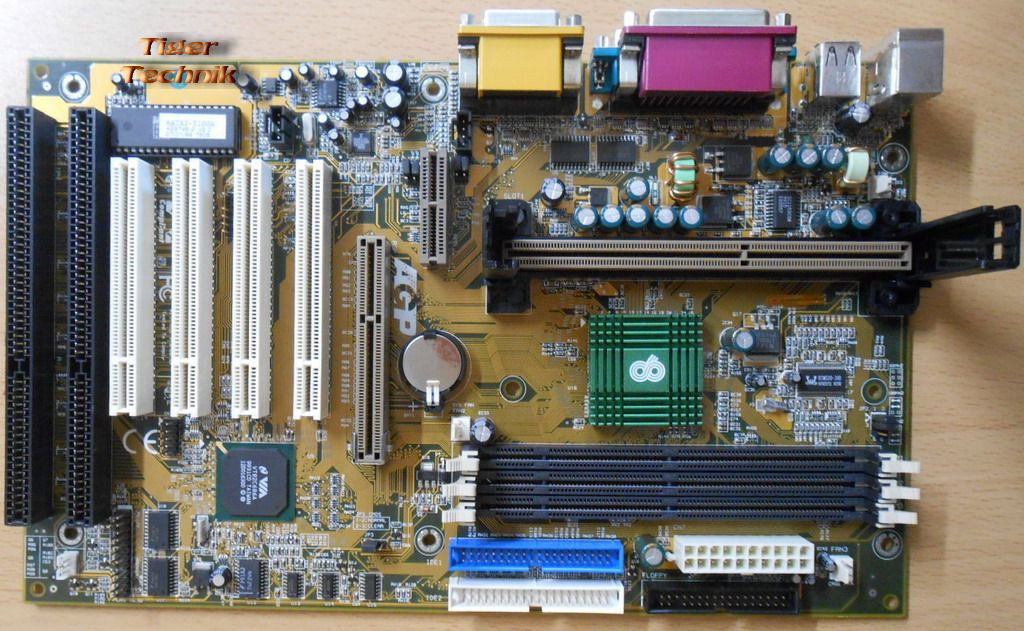

Chaintech 6ATA2-E100A Mainboard + Blende

Slot 1 VIA Apollo133A 2x ISA AGP PCI Audio

Technische Daten

KE8746-2 V2.0

Processor

Supports up to 600MHz Intel Pentium® II/Pentium® III processors and Celeron processors up to 500MHz

Slot 1 CPU socket with retention mechanism for SEPP, SECC and SECC2

High efficiency Switching Power Module (VRM v8.4 compliant)

Supports 66/100/133 MHz system clock speeds

Innovative SeePU technology (software CPU installation with no jumper settings)

Advanced over-clocking capability with Vcore(0.1V increment) and frequency(Down to 1MHz precision and up to 152MHz) subtle tuning technology.

Chipset

VIA Pro133 82C693A+82C686A two chip PCIset

DRAM Memory

Three 3.3V 168-pin DIMM sockets support up to 384MB

Provides Parity/single-bit ECC capability

Expansion Slots

One AMR slot (Rev 1.0 compliant) for cost effective soft modem riser

One 32-bit AGP slot (Rev 1.0 compliant)

Four 32-bit PCI slots (Rev 2.1 compliant)

Two 16-bit ISA slots (one PCI/ISA shared slot)

BIOS

Award System BIOS, supports PnP, APM, DMI,ACPI & Multi-device booting features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-ATAPI etc.

Includes Trend ChipAway Virus protection for virus-free boot and virus free operating system

The Trend ChipAway Virus is a rule-based anti-virus technology and does not require periodical updates of virus code

Embedded Ultra DMA-66 PCI IDE controller

Supports two IDE ports up to 4 ATAPI devices

Supports up to PIO Mode 4 up to 14MBps, Multi Mode 4 up to 66MBps with bus mastering

Bus Mastering software drivers for all well known multi-task operating systems

Embedded Super I/O Functions

Three UARTs support two serial ports and IR function for HPSIR and ASKIR

One parallel supports SPP/ECP/EPP

One floppy disk drive connector supports up to 2.88MB, Japanese 3- Mode and 1Mbps transfer rate

Double Stack Back-Panel I/O Connectors with PC99 Colored Codes

PS/2 Mini-DIN keyboard and mouse ports

Two Channel USB ports

Two D-Sub 9-pin male serial port

One D-Sub 25-pin female Printer port

One D-Sub 15-pin female Game/MIDI port

Audio Line-out, Line-in, Mic-in jacks

Integrated PCI Audio Subsystem

AC'97 v2.1 CODEC onboard

Full-duplex operation for simultaneous recording and playback

Direct mixed audio streams to USB speakers

Advanced wavetable Synthesizer using wavedata on the system memory

Legacy DOS games compatible via TDMA

Meets ACPI standard and PC98 WHQL audio requirements

Two Channel USB Ports

Board Dimensions

Standard ATX form factor, 305mm x190mm, 4 Layers

Six mounting holes

Advanced Management Features

Power-on events:

WOL(Wake-on-LAN), network card, Modem ring, RTC Alarm

Software power-off control for Win95

Over-ride power button, Enhanced Power-failure recovery

Embedded LDCM compliant System Monitor Hardware

Poly-fuse over-current protection with error warning for USB and keyboard circuitry

ACPI features ready when ACPI-enabled O/S is available

Hardware design meets Microsoft PC99 requirements

Complete Data Security

First industrial mainboard to combine Trend ChipAway Virus and PC-cillin for a 100% virus free system boot-up in one

Lieferumfang

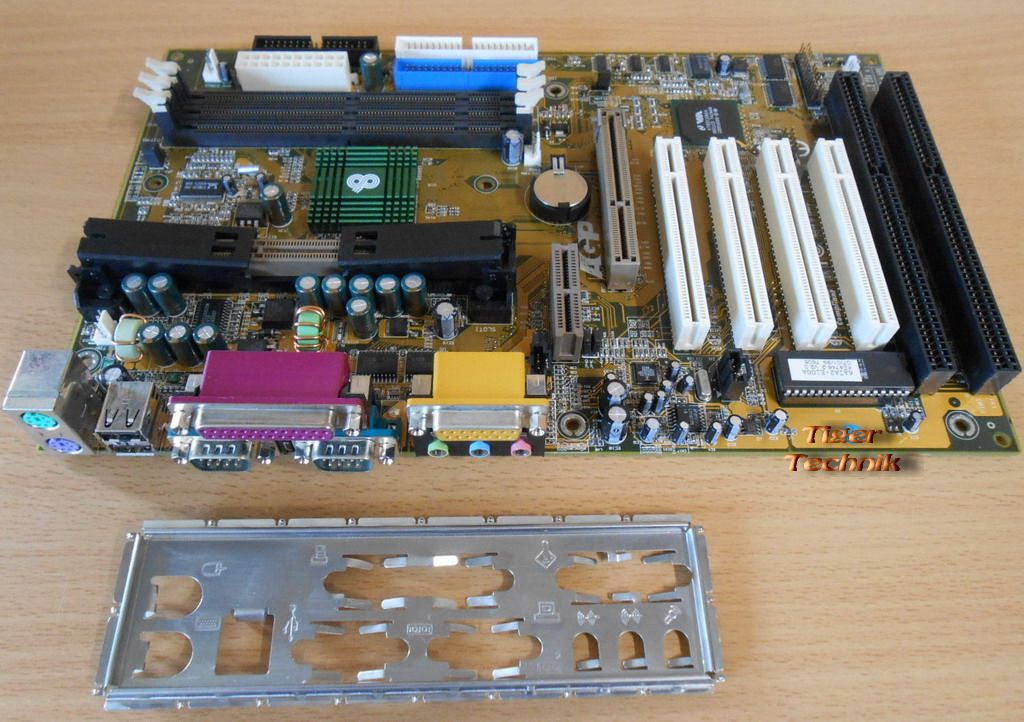

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
