Produktbeschreibung

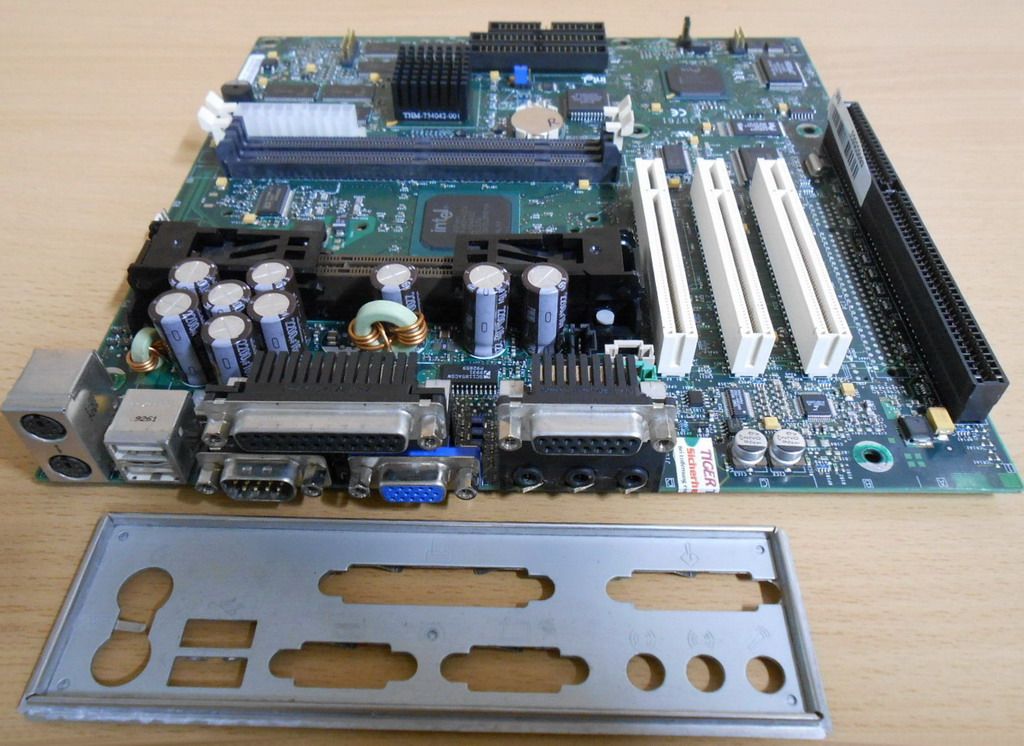

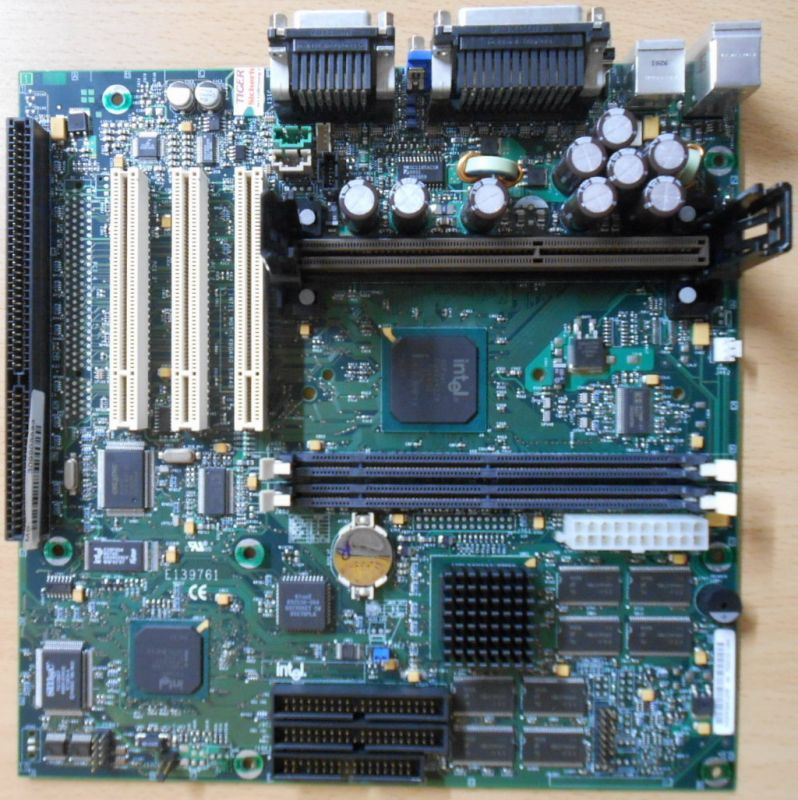

Intel AA 752215-104 SR440BX Mainboard + Blende
Slot 1 1x ISA PCI VGA Audio
Technische Daten
Form Factor
microATX (9.6 inches by 9.6 inches)
Support for the following processors:
Intel Pentium III processor with 100MHz host bus speed
Intel Pentium II processor with 66MHz or 100MHz host bus speed
Intel Celeron processor with 66MHz host bus speed
Main Memory
Two 168-pin dual inline memory module (DIMM) sockets
Supports up to 512 MB of 66 MHz or 100 MHz synchronous DRAM (SDRAM)
Supports Error Checking and Correcting (ECC) and non-ECC memory
Chipset
Intel® 82440BX, consisting of:
Intel® 82443BX PCI/AGP controller (PAC)
Intel® 82371EB PCI ISA IDE Xcelerator (PIIX4E)
VGA
nVidia Riva TNT Enhanced 128-bit 3D Processor
16MB SDRAM video memory
I/O Control
SMSC FDC37M807 I/O controller
Audio subsystem
Crystal Semiconductor CS4297 Audio Codec
Sound Blaster AudioPCI 64V digital audio controller
Peripheral Interfaces
Two serial ports (One via header onboard)
Two Universal Serial Bus (USB) ports
One parallel port
Two IDE interfaces with Ultra DMA support
One diskette drive interface
Expansion capabilities
(1x) One shared ISA/PCI slot
(3x) Three dedicated PCI slots
BIOS
Intel/AMI BIOS
Intel® E28F004B5 4 Mbit boot block flash memory
Support for Advanced Power Management (APM), Advanced Configuration and Power Management Interface (ACPI), Plug and Play, and SMBIOS
Others
Legacy-Style CD-ROM connector; ATAPI-Style CD-ROM connector; Auxiliary line in connector; Telephony connector; 1x 3-pin CPU FAN connector; CMOS Jumper; Internal Speaker; 1x Frontpanel connector; Wake On Ring connector
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
