Fujitsu Esprimo P510 D3171-A11 GS1 Mainboard +Blende Intel B75 Sockel 1155* m930
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Fujitsu Esprimo P510 D3171-A11 GS1 Mainboard +Blende Intel B75 Sockel 1155* m930

Fujitsu Esprimo P510 D3171-A11 GS1 Mainboard +Blende Intel B75 Sockel 1155* m930

Art.Nr: m930
Lieferzeit: 3 Tage
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
33,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten

Produktbeschreibung

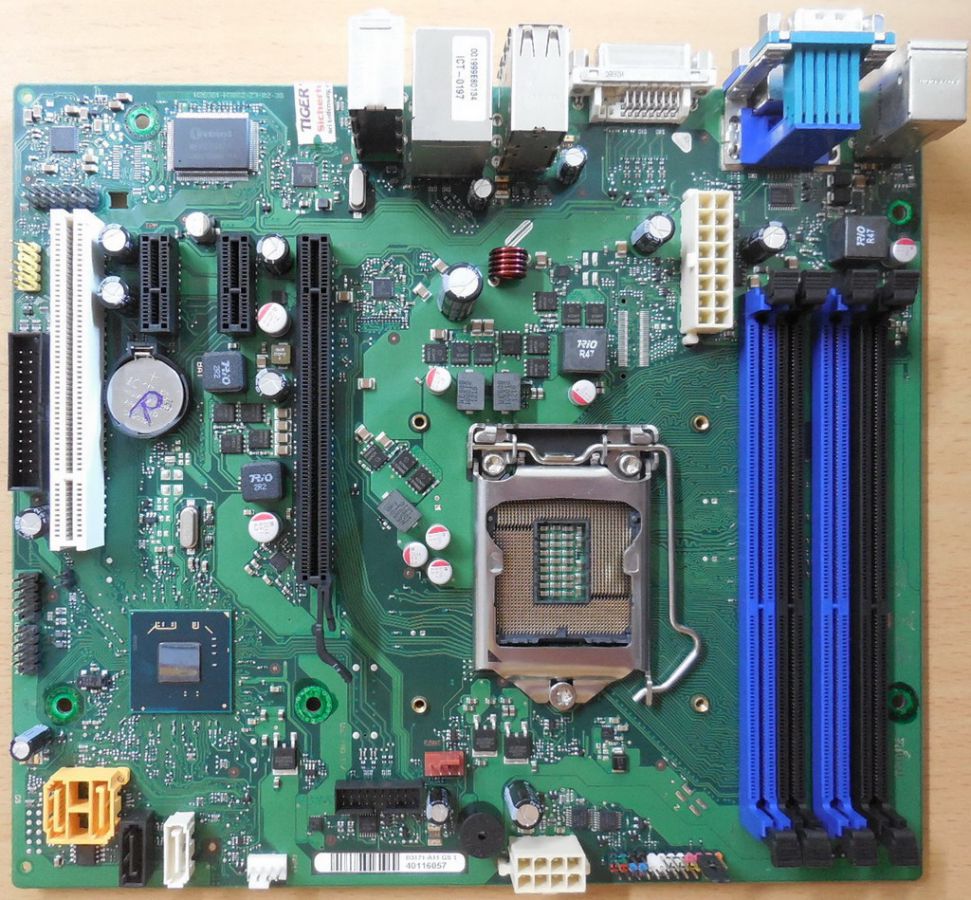

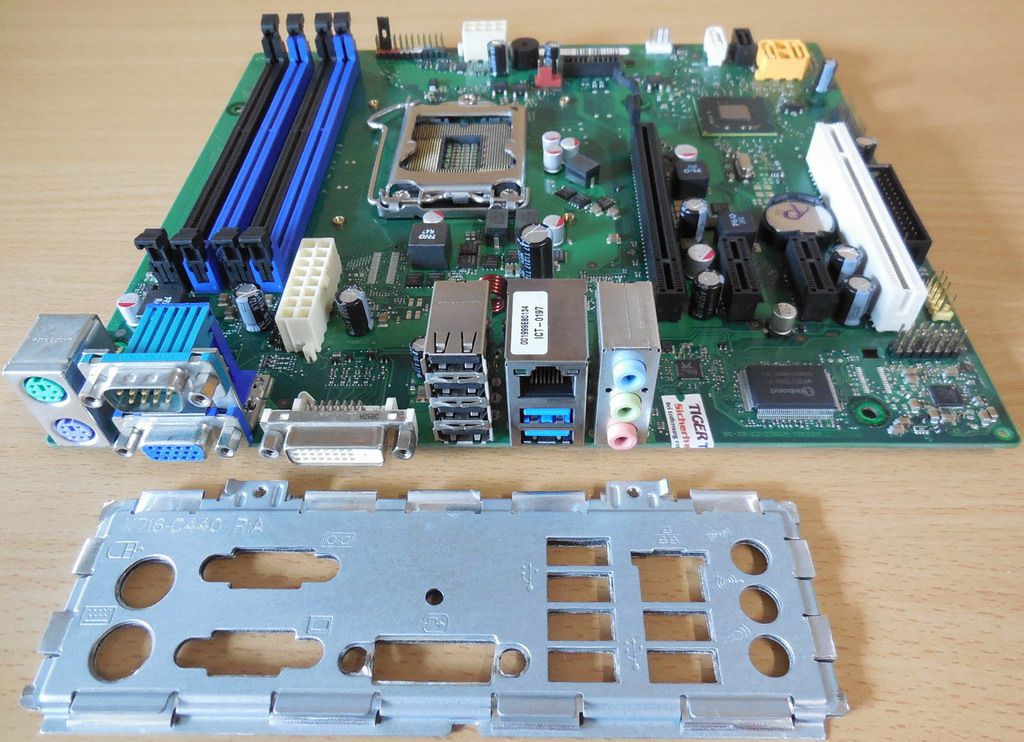

Fujitsu Esprimo P510 D3171-A11 GS1 Mainboard + Blende Intel B75 Sockel 1155

Technische Daten

Hersteller: Fujitsu

Model: D3171-A11 GS1

CPU-Unterstützung:

Intel® Core™ i7-3770 processor (4 Cores / 8 Threads, up to 3.90 GHz 3.40 GHz, 8 MB, Intel® HD Graphics 4000 with 3rd generation Core i processors)*

Intel® Core™ i5-3570 processor (4 Cores / 4 Threads, up to 3.80 GHz 3.40 GHz, 6 MB, Intel® HD Graphics 2500)*

Intel® Core™ i5-3470 processor (4 Cores / 4 Threads, up to 3.60 GHz 3.20 GHz, 6 MB, Intel® HD Graphics 2500)*

Intel® Core™ i5-2400 processor (4 Cores / 4 Threads, 3.10 GHz, 6 MB, Intel® HD Graphics 2000)

Intel® Core™ i3-2120 processor (2 Cores / 4 Threads, 3.30 GHz, 3 MB, Intel® HD Graphics 2000)

Intel® Pentium® processor G860, G850, G640, G630 (2 Cores / 2 Threads, 3 MB, Intel® HD Graphics)

Intel® Celeron® processor G540, G530 (2 Cores / 2 Threads, 2 MB, Intel® HD Graphics)

*with Intel® Turbo Boost Technology (clock speed and  will vary depending on workload and other variables)

(For details on supported processors please refer to the Fujitsu Website)

Sockel: Intel 1155

Chipsatz: Intel B75

Memory: 4 x DDR3 1.5V Steckplätze für ungepufferte non-ECC 1600MHz(PC3-12800) / 1333MHz(PC3-10600) DIMM Module

Single-Channel und Dual-Channel Support; max. 32 GB Hauptspeicher

Graphics: Intel® HD graphics (integrated in processor), DirectX 10.1 compliant, Dynamic Video Memory (DVM), upgradeable with PCI Express x16 graphics card

LAN: Realtek RTL8111E Gigabit Ethernet Controller with 10/100/1000 MBit/s; Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE support

Audio: Conexant CX20642 5.1-channel High Definition Audio

Erweiterungssteckplätze: 1 x PCIe 3.0 x16, 2 x PCIe x1, 1 x PCI

USB: 4 x USB3.0 (2 x Rear Panel; 2 x via Header); 8 x USB2.0 (4 x Rear Panel; 4 x via Header)

Intern: Echtzeituhr/Kalender mit Batteriepufferung

1 x SATA3 Ports (bis zu 6GBit/s)

3 x SATA2 Ports (bis zu 3GBit/s)

1 x FAN1 Connector (4-pin)

1 x FAN2 Connector (4-pin)

2 x USB2.0 Connector für insgesamt 4 weitere USB Ports z.B. via Blende

1 x USB3.0 Connector für insgesamt 2 weitere USB Ports z.B. via Blende

1 x Parallel Connector (EPP/ECP)

1 x Fujitsu ATX Power 16-pin

1 x Fujitsu SATA Power 8-pin

1 x Front Panel Connector

1 x Audio Front Panel Connector (AFP)

1 x TPM Connector

1 x Buzzer

Externe Anschlüsse: 1x VGA Sub-D; 1x DVI-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Seriell COM, 1x LAN, 4x USB2.0, 2x USB3.0, 1x Line-In, 1x Line-Out, 1x Mic

Hardware Monitoring

FAN monitored and controlled CPU (FAN1) / System (FAN2); TEMP monitored CPU / Onboard1 / Onboard2

BIOS

AMI Aptio 4.6

BIOS Flash EPROM update by software

Recovery BIOS

Unified Extensible Firmware Interface (UEFI)

Special Features

Silent Fan LT                  Independent temperature related processor fan and system fan control

System Guard                View Silent Fan LT features

Silent Drives                    Noise reduction for optical and hard disk drives

Recovery BIOS              Restores a corrupted BIOS

Desk Update                  Simple driver update with Driver&Utilities DVD

Multi Boot                      Comfortable boot from any boot device

HDD Password              Access protection for disk drives

Logo Boot Option

Formfaktor: Ultra small μATX 244 x 213 mm (z.B. Esprimo P510 E85+)

Lieferumfang

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
