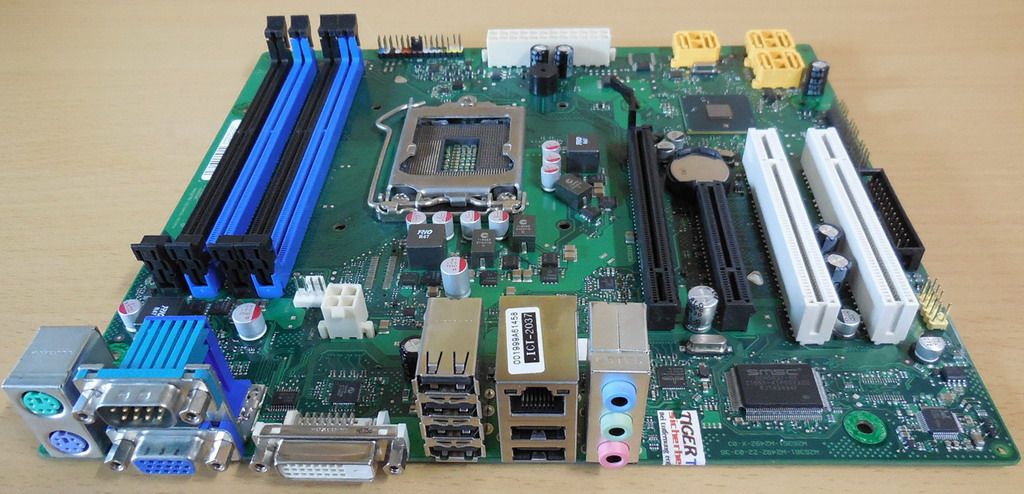

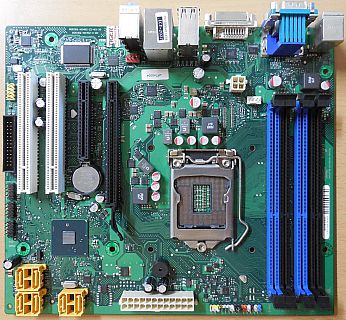

Fujitsu D2942-B12 GS1 Mainboard Intel H55 Sockel 1156 DDR3 VGA DVI Audio* m1029

Fujitsu D2942-B12 GS1 Mainboard Intel H55 Sockel 1156 DDR3 VGA DVI Audio

Technische Daten

Hersteller       Fujitsu

Model       D2942-B12 GS 1

CPU-Unterstützung

Intel® Core™ i7 – 8xx; Intel® Core™ i5– 7xx; Intel® Core™ i5– 6xx; Intel® Core™ i3– 5xx; Intel® Pentium G

(For details on supported processors please refer to the Fujitsu website)

Sockel       Intel 1156

Chipsatz       Intel H55 Express

RAM       4 x DIMM-Steckplätze (1.5V); max. 16 GB Hauptspeicher

Single Channel or Dual Channel DDR3 1333/1066 SDRAM, unbuffered, no ECC

(For details on recommended RAM, please refer to the Fujitsu website)

VGA       Depending on CPU; VGA Ports      1 x Sub-D; 1 x DVI-D

LAN       Broadcom Gigabit Ethernet Controller with 10/100/1000 MBit/s via PCI Express, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display

Audio       Realtek ALC 663, 6-channel, High Definition Audio

Erweiterungssteckplätze       1x PCI-E x16; 1x PCI-E x4(mech. x8); 2x PCI

Intern       Echtzeituhr/Kalender mit Batteriepufferung

6 x SATA2 Ports (bis zu 3GBit/s; NCQ) für bis zu sechs SATA Geräte

1 x 4-pin FAN1 Connector

1 x 4-pin FAN2 Connector

1 x Audio Front Panel Connector (AFP)

3 x USB2.0-Anschluss Connector für insgesamt 6 weitere USB2.0 Ports z.B. via Blende

1 x Parallel (EPP/ECP) Connector

1 x 24-pin Power Connector

1 x 4-pin 12V Processor Supply

1 x Buzzer

1 x Front Panel connector

Externe Anschlüsse       1 x VGA Sub-D; 1 x DVI-D; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Seriell, 1 x (RJ-45) LAN, 6 x USB2.0, 1 x Line-In, 1 x Line-Out, 1 x Mic

BIOS

Phoenix Secure Core BIOS Version 6.00

modified and adapted by Fujitsu Siemens Computers; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5

Formfaktor       μATX 243.8 x 213.3 mm

Lieferumfang

Nur das Mainboard - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
