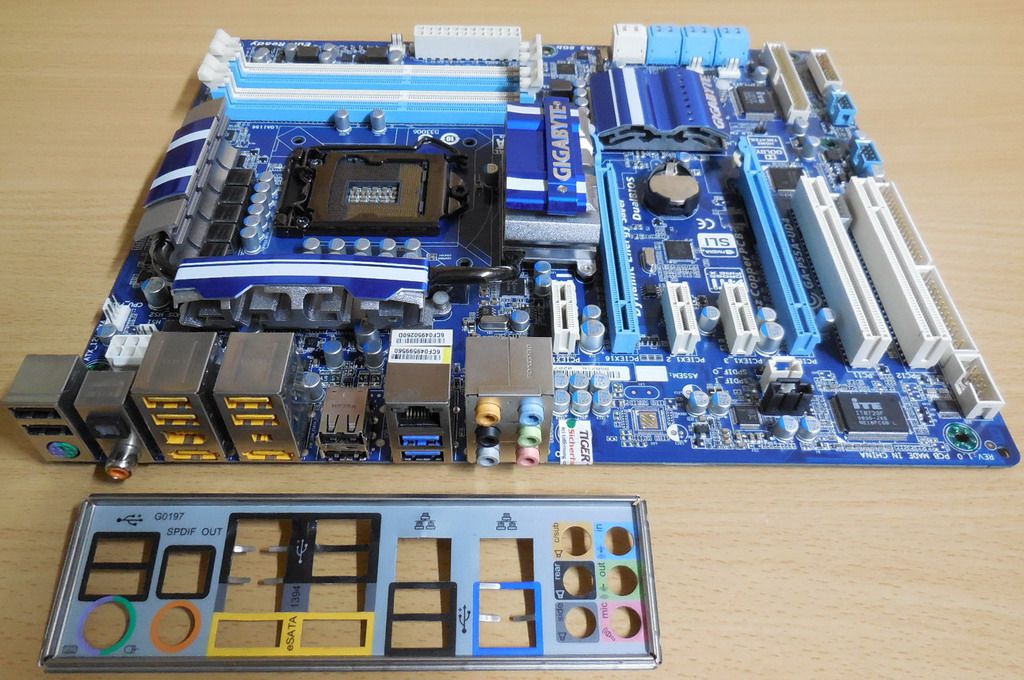

Gigabyte GA-P55A-UD4 Rev1.0 Mainboard +Blende Sockel 1156 8xSATA DDR3 PCIe* m917
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Gigabyte GA-P55A-UD4 Rev1.0 Mainboard +Blende Sockel 1156 8xSATA DDR3 PCIe* m917

Gigabyte GA-P55A-UD4 Rev1.0 Mainboard +Blende Sockel 1156 8xSATA DDR3 PCIe* m917

Art.Nr: m917
Lieferzeit: 3 Tage
Lagerbestand: 0
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
91,95 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten


Produktbeschreibung

Gigabyte GA-P55A-UD4 Rev 1.0 Mainboard + Blende Sockel 1156 8xSATA DDR3 PCIe

Technische Daten

CPU

Support for an Intel® Core™ i7 series processor / Intel® Core™ i5 series processor / Intel® Core™ i3 series processor in the LGA1156 package

L3 cache varies with CPU

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

Intel® P55 Express Chipset

Memory

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 2200/1600/1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Support for Extreme Memory Profile (XMP) memory modules

Go to GIGABYTE's website for the latest memory support list.

Audio

Realtek ALC889 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby® Home Theater

Support for S/PDIF In/Out

Support for CD In

LAN

1 x RTL8111D chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16; PCI-E 2.0)

1 x PCI Express x16 slot, running at x8 (PCIEX8; PCI-E 2.0)

3 x PCI Express x1 slots

2 x PCI slots

Multi-Graphics Technology

Support for ATI CrossFireX™ / nVidia SLI technology

Storage Interface

by Chipset:

6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

by Marvell 9128 chip:

2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices

Support for SATA RAID 0 and RAID 1

SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration. SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

JMB362 SATA2 chip:

2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8213 chip:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

by Chipset:

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

by NEC chip:

Up to 2 USB 3.0/2.0 ports on the back panel

USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.

IEEE 1394 Firewire

by T.I. TSB43AB23 chip:

Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

2 x SATA 6Gb/s connectors

1 x CPU fan header (4-pin)

2 x system fan headers (1x 4-pin; 1x 3-pin)

1 x power fan header (3-pin)

1 x PCH chip fan header (3-pin)

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x serial port header

1 x parallel port header

1 x clearing CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard or PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

2 x IEEE 1394a ports

8 x USB 2.0/1.1 ports

2 x USB 3.0 ports

2 x eSATA 3Gb/s ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

iTE IT8720 chip

H/W Monitoring

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control

BIOS

2 x 16 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install;  Xpress Recovery2; EasyTune; Dynamic Energy Saver™ 2; Smart 6™; Auto Green; eXtreme Hard Drive; Q-Share

Operating System

Support for Microsoft® Windows 7 / Vista / XP

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Note

When dual graphics cards are used in 1st and 2nd PCIex16 slots, SATA3 / USB 3.0 (Marvell 9128 /NEC USB 3.0 Controllers) will work at normal mode.

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
