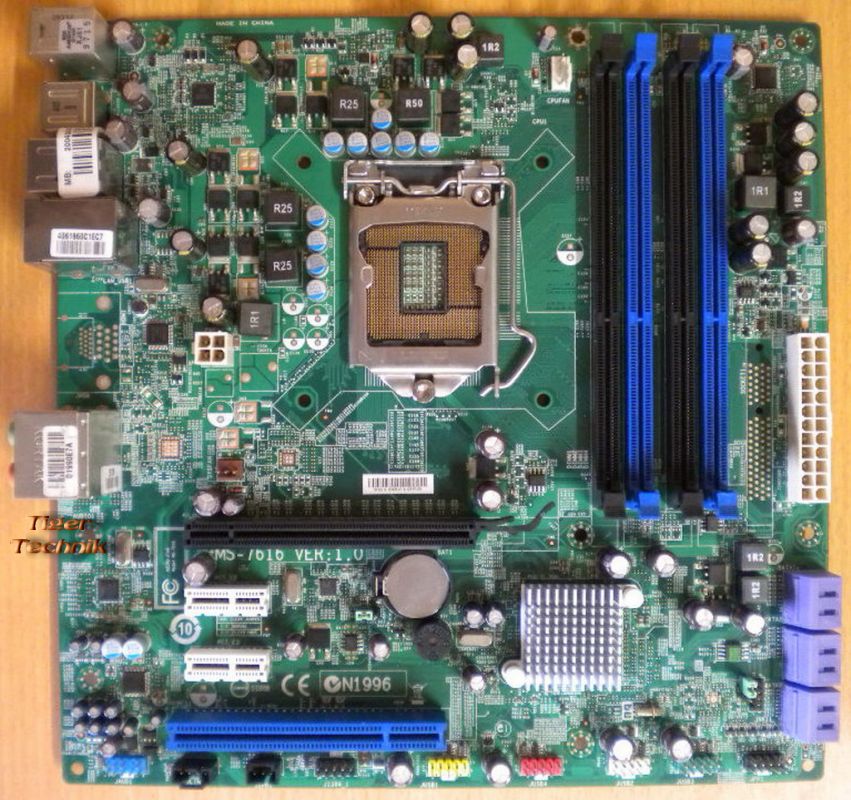

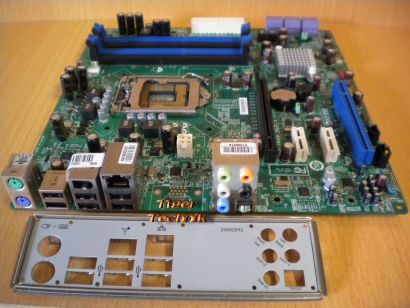

MSI MS-7616 Ver 1.0 Mainboard + Blende
Org. Medion MD 8338 Sockel 1156 PCIe SATA DDR3
Technische Daten
CPU
Intel Processor Support
(Lynnfield) Core i7, i5
(Clarkdale) Core i5, i3
Chipset
Intel P55
Main Memory
4 * 240-pin DDR3 DIMM slots
Supports Dual Channel DDR3 1333/1066 MHz non-ECC, un-buffered memory (Max. 16GB - 4GB per slot)
Slots
1 x PCI Express x16 (2.0)
2 x PCI Express x1
1 x PCI
On-Board SATA
• Serial ATA/ATA II controller integrated
- Up to 1.5Gb/sec transfer rate.
- Up to 3Gb/sec transfer rate.
- Can connect up to 6 Serial ATA drives.
Audio
Realtek ALC888S – High Definition
LAN
VIA Gigabit – 10/100/1000Mb/s
USB
max. 10 x USB2.0 ports
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System fan connectors
- Clear CMOS jumper
- 2 x USB 2.0 connector support additional 4 ports
- 4 x headers to support USB media reader
- Front panel audio connector
- Front panel connectors
- 6 x Serial ATA device connectors
Back Panel I/O Ports
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 1 x Audio I/O
- 6 x USB 2.0
- 1 x RJ45 LAN jack
- 1 x IEEE1394 FireWire
- 1 x S/PDIF
Formfaktor
microATX
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
