Produktbeschreibung

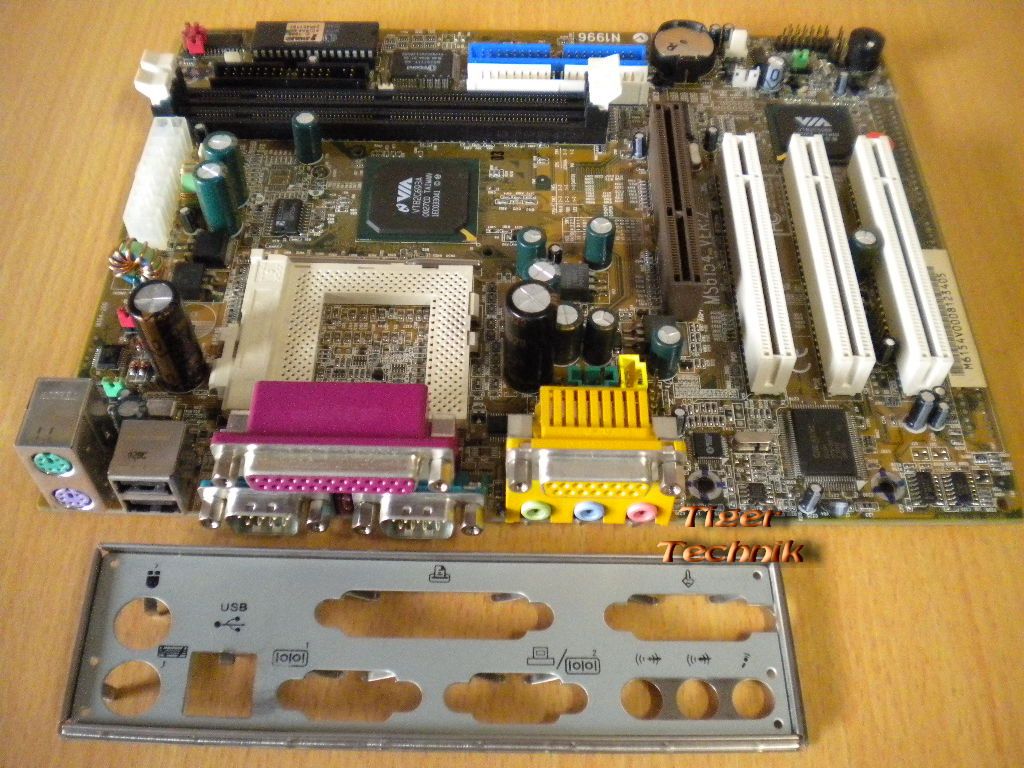

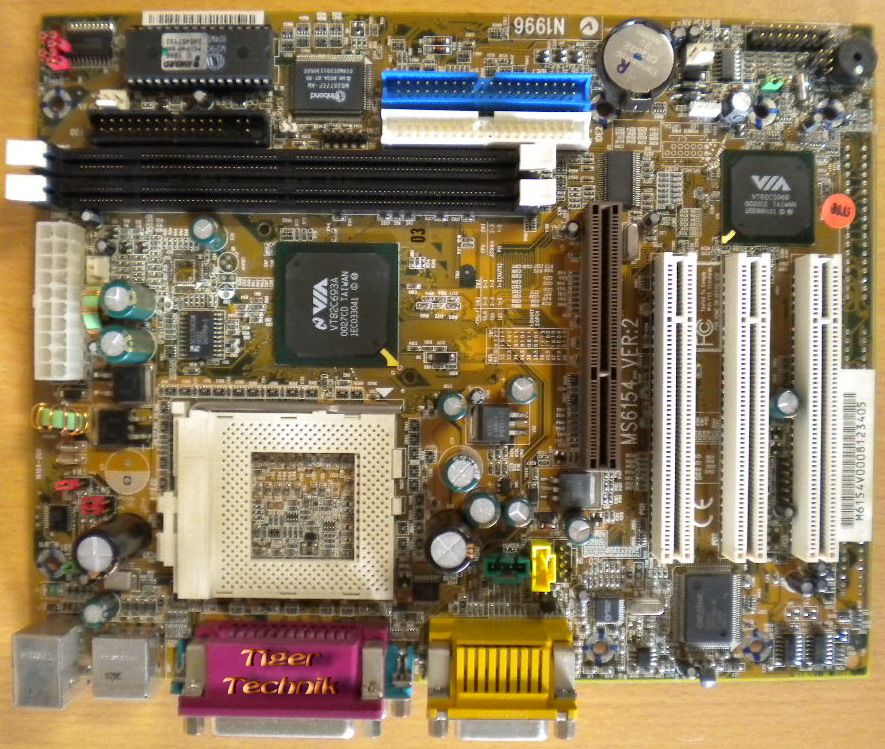

MSI MS-6154 Ver 2 Mainboard + Blende
Sockel 370 AGP PCI 2x Seriell USB SD-RAM
Technische Daten
CPU
Socket 370 for Intel® CeleronTM and Pentium® III processor.
Supports 333MHz, 366MHz, 400MHz, 466MHz, 500MHz, 566MHz, 600MHz, 667MHz, 700MHz, 733MHz, 800MHz.
Chipset
VIA® VT82C693A + VT82C596B chipsets.
Clock Generator
66/100/133MHz clocks are supported.
Main Memory
Supports four memory banks using two 168-pin unbuffered DIMM.
Supports a maximum memory size of 1GB.
Supports 3.3v SDRAM DIMM.
Supports ECC (1-bit Error Code Correct) Function.
Slots
1 x AGP slot (AGP 66/133MHz 3.3v device support)
3 x 32-bit Master PCI Bus slots (Supports 3.3v/5v PCI bus Interface; Supports PCI 2.2.)
On-Board IDE
An IDE controller on the VT82C596B Chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA/66 operation modes. Can connect up to four IDE devices.
On-Board Peripherals include
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.
Sound
Creative® ES1373
- Running on PCI BUS.
- 64 Voice and AC3 Capable
- Support Direct Sound and Direct Sound 3D
- AC97’ Compliant
I/O Chip
Winbond® multi super I/O W83977EF-AM
- 2M bps fast tape drive, IRQ sharing
- Device Power Management
- Real time clock (256 bytes RAM)
- 8042-based keyboard controller (support PS/2 mouse)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
ACPI(Advanced Configuration and Power Interface) feature.
Dimension
MICRO ATX Form Factor : 24.4cm(L) x 19.2cm(W) x 4 layers PCB
Mounting
6 mounting holes.
System Hardware Monitor (optional)
CPU/Power Supply/Chassis Fan Revolution Detect
CPU Fan Control (the fan will automatically stop when the system enters suspend mode)
System Voltage Detect
CPU Overheat Warning.
Display Actual Current Voltage
Other Features
Keyboard Password Wake-Up
LAN Wake-Up
Internal/External Modem Wake-Up
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
