Produktbeschreibung

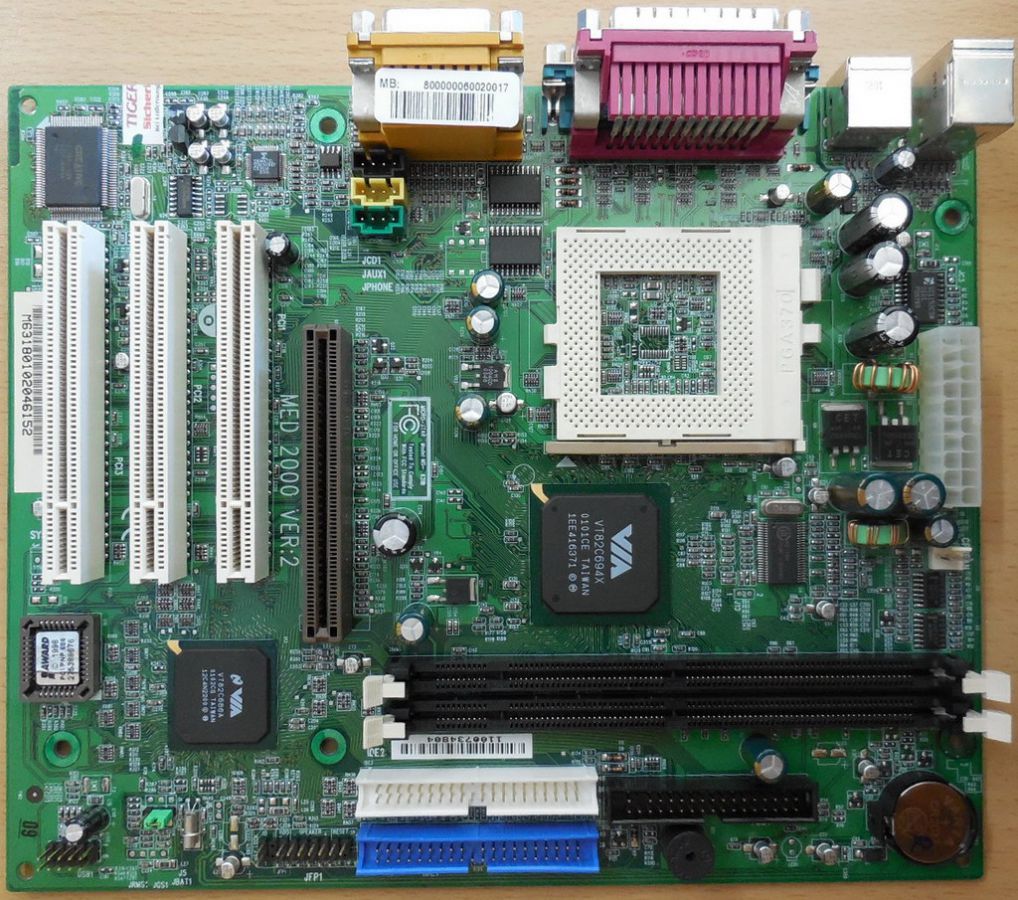

MSI MS-6318 Medion 2000 Ver 2 Mainboard + Blende Sockel 370 AGP PCI Audio
Technische Daten
CPU
Socket 370 for Intel® CeleronTM/CoppermineTM processor.
Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz, 500MHZ, 533MHz, 550MHz, 667MHz or faster processor.
Chipset
VIA® 694X chipset. (510 BGA)
- FSB @133MHz
- AGP 4x and PCI plus Advanced ECC Memory Controller
- Support PC100/133 SDRAM technology
VIA® VT82C686A chipset. (352 BGA)
- Advanced Power Management Features
- Integrated Super I/O (FDC, LPT, and COM 1/2)
- Dual bus Master IDE Ultra DMA33/66
- ACPI
Clock Generator
66.6MHz to 133Mhz clocks are supported.
Main Memory
Support two memory banks using two 168-pin unbuffered DIMM.
Support a maximum memory size of 512MB (32M x 8).
Support ECC(1-bit Error Code Correct) function.
Support 3.3v SDRAM DIMM.
Slots
One AGP(Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP 66/133MHz 3.3v device support
Three 32-bit Master PCI Bus slots.
Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the VIA® VT82C686A Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes. Can connect up to four IDE devices.
Audio
Creative CT5880
- 64 Voice WaveTable Synthesizer
- Sound Library of over 4000 different sounds
- Support Microsoft Direct Sound, Direct Sound 3D, Direct Music and A3DAPI.
On-Board Peripherals
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M , 1.44M and 2.88Mbytes.
- 2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports (reserved 2 USB Front Pin Header)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
Micro-ATX Form Factor: 24.4cm (L) x 20cm (W)
Mounting
6 mounting holes.
Lieferumfang

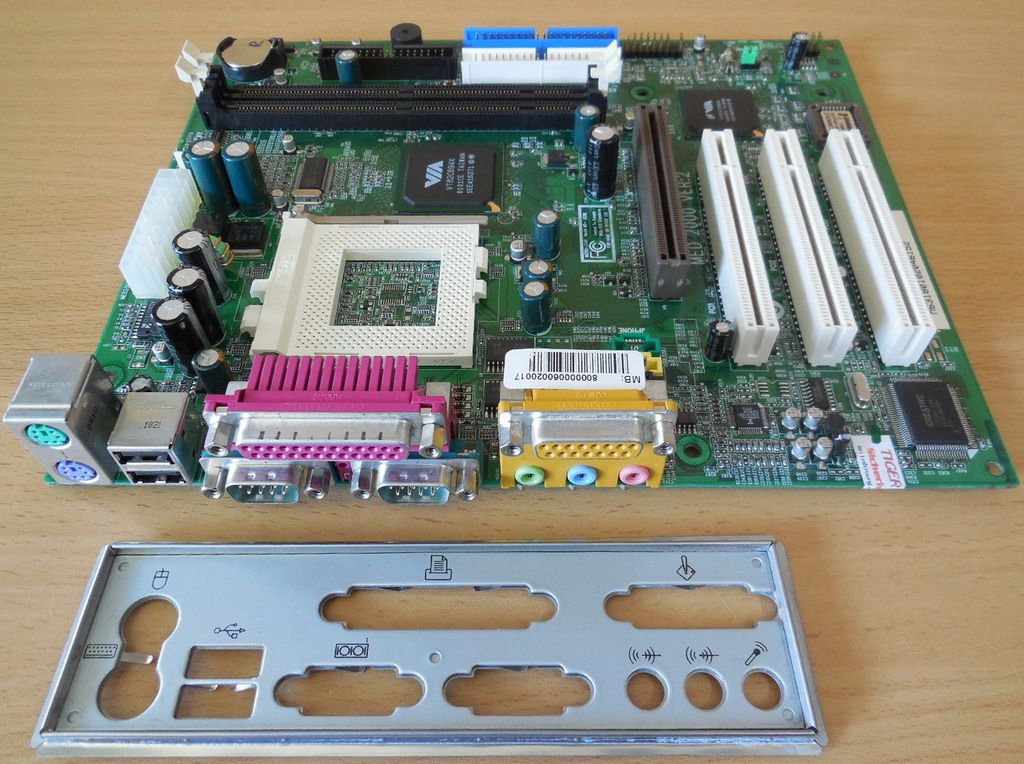

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
