Asus P4T-M Rev 1.05 Mainboard +Blende Sockel 423 4x RIMM AGP PCI USB Audio* m398

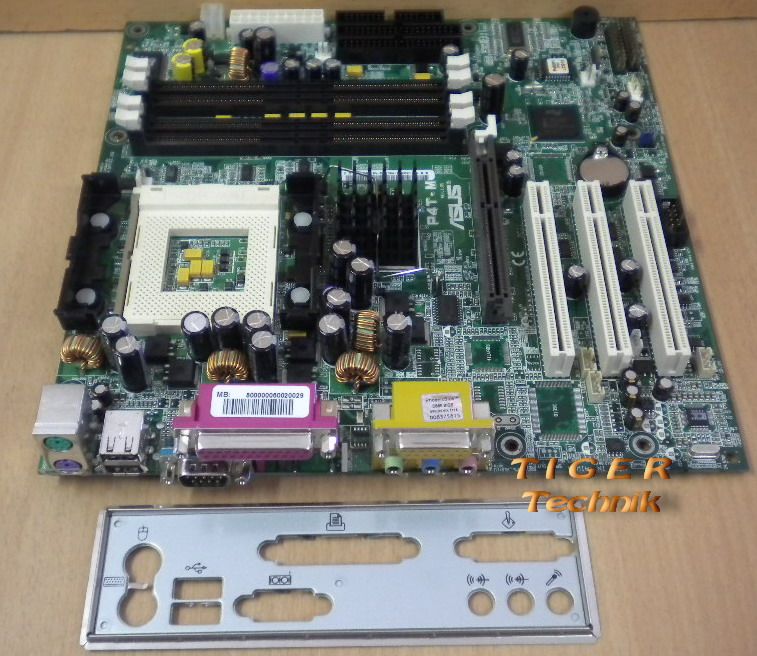

Asus P4T-M Rev 1.05 Mainboard + Blende

Sockel 423 4x RIMM AGP PCI USB Audio

Technische Daten

Processor Support

Intel Socket 423 Pentium® 4 processors

Chipsets

Features the Intel® 850 chipset (Memory Controller Hub, I/O Controller Hub, and 4Mbit Firmware Hub) with support for AGP 4X mode; 400MHz Front Side Bus (FSB); and dual channel RDRAM.

Intel I/O Controller Hub 2 (ICH2) features support for UltraDMA/100, which allows burst mode data transfer rates of up to 100MB/sec; and two USB controllers for a total of 4 USB ports.

AD1881A Audio Chipset

Main Memory

Maximum 2GB support; 4 RIMM Sockets; Dual Channel PC800/PC600 RDRAM support

Expansion Slots

3 x PCI Slots

1 x Accelerated Graphics Port (AGP 4X) Slot

System I/O

2 x IDE Connectors (UltraDMA33/66/100 support)

1 x Floppy Disk Drive Connector

1 x USB Header (supports 2 USB ports)

1 x Parallel Port Connector

1 x Serial COM1 Port Connector

1 x Serial COM2 Header

2 x USB Port Connectors

1 x PS/2 Mouse Connector

1 x PS/2 Keyboard Connector

1 x Game/MIDI Connector

1 x Line Out Connector

1 x Line In Connector

1 x Line Microphone Connector

Wake-On-LAN Connector

Hardware Monitoring

Low Pin Count (LPC) Winbond Multi-I/O Chipset

Power

ATX Power Supply Connector

ATX 12V Power Supply Connector

Special Feature

1 x iPanel AFPANEL Header

Form Factor

MicroATX

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
