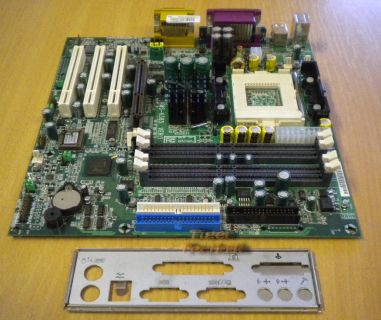

MSI MS-6385 Ver:1 Mainboard + Blende * Intel Sockel 423 * AGP PCI Slots * m17

MSI MS-6385 Ver:1 Mainboard + Blende

Technische Daten:

CPU

• Support Socket 423 for Intel® Pentium®4 Processor • Supports 1.4 ~ 2.0GHz

- Up to 2GB Maximum memory (Rambus)

- AGP Pro Interface with 4x SBA/Data Transfer

• Intel® ICH2 Chipset

- AC'97 Controller Integrated

- 2 full IDE channels, up to ATA100

- Low pin count interface for SIO

- 4 USB Ports

- Support one CNR slot

• Supports 400MHz FSB

Main Memory

• Supports four 184-pin Gold-lead RIMM sockets.

• Supports a maximum memory size of 2GB.

Slots

• One CNR (Communication Network Riser) slot.

• One AGP (Accelerated Graphics Port) slot.

- Support up to 4x mode

• Three 32-bit/33MHz Master PCI Bus slots.

- Supports 3.3v/5v PCI bus Interface.

On-Board IDE

CD-ROM with PIO, Bus Master and Ultra DMA 100 operation modes.

• Can connect up to four IDE devices.

Audio

• ICH2 chip integrated

- AC'97 Compliant

• On-Board Peripherals include:

- 1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 2 Serial ports (COM A + COM B)

- 1 Parallel port supports SPP/EPP/ECP mode

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and   expansion cards of the board automatically.

• IDE drive auto configure, Advanced Power Management (APM) 1.2, ACPI 1.0, DMI 2.3,   ECC/Parity support.

• 24.4 cm(L) x 24.4 cm(W) MicroATX Form Factor

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
