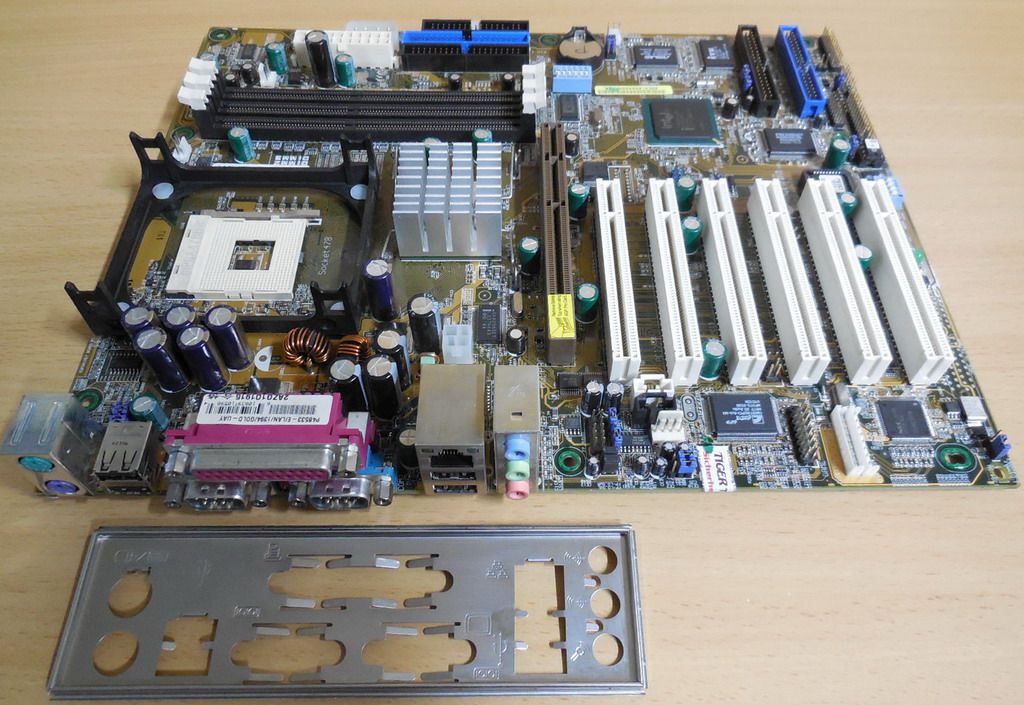

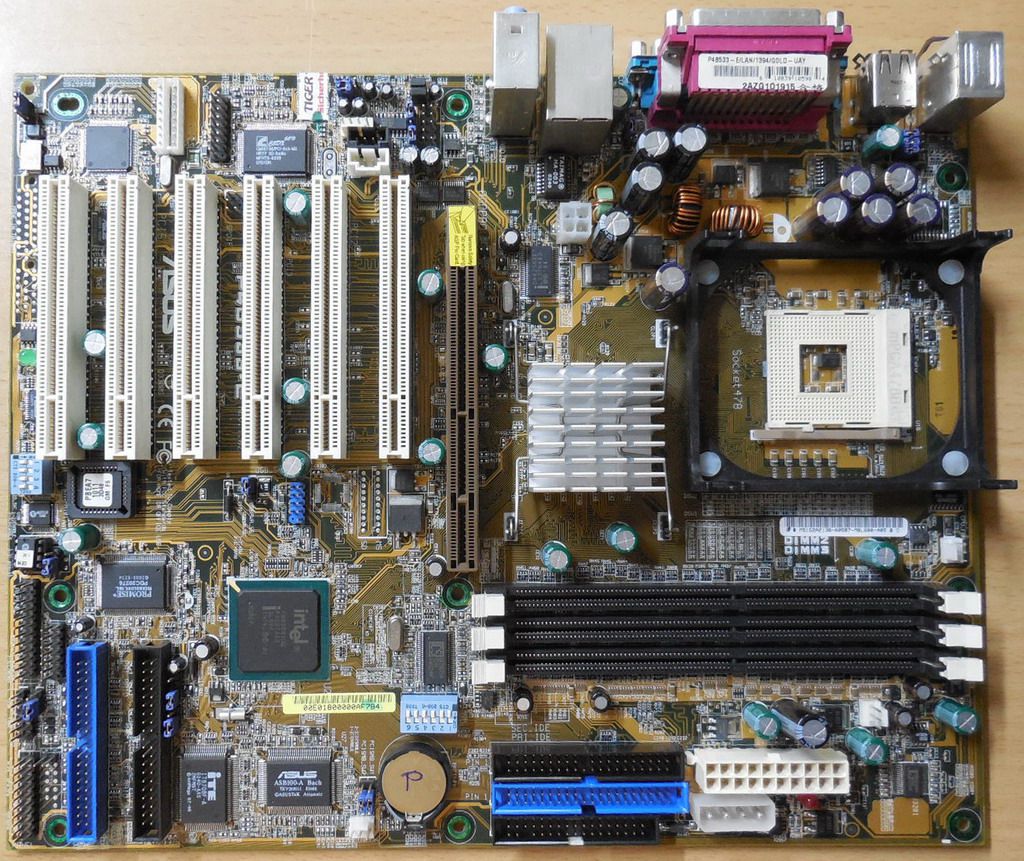

ASUS P4B533-E Rev 1.02 Mainboard +Blende Intel Sockel 478 LAN Audio IDE RAID*m45

ASUS P4B533-E Rev 1.02 Mainboard + Blende Intel Sockel 478 LAN Audio IDE RAID

Technische Daten

CPU

Socket 478 for Intel® Pentium® 4

On-die 512KB / 256KB L2 cache

Chipset

Intel 82845E MCH + Intel 82801 DB ICH4

Front Side Bus (FSB)

533/400 MHz

Memory

3 x 184-pin DDR DIMM sockets for up to 2GB memory

Supports PC2100/PC1600 unbuffered ECC/non-ECC DDR DIMMs

Expansion slots

1 x AGP Pro (1.5V only)

6 x PCI

IDE

2 x UltraDMA 100/66/33

2 x ATA133 for RAID 0/1

Audio

C-Media 8738-MX 6-channel PCI audio controller

LAN

Intel 82562ET PHY

NEC 1394 controller

2 x 1394 ports via internal connector

Special features

ASUS JumperFree™ mode; ASUS POST Reporter™; ASUS EZ Plug™; ASUS MyLogo2; ASUS Q-Fan; ASUS EZ Flash; Power Loss Restart; STR (Suspend-to-RAM); SFS (Stepless Frequency Selection); Adjustable CPU VCORE, and memory and AGP voltages; Multi-language BIOS; AGP warning LED

Rear panel I/O

1 x Parallel port

2 x Serial ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0/USB 1.1 ports

1 x LAN RJ-45 port

Line In/Line Out/Microphone ports

Internal I/O

1 x USB 2.0/1.1 connector for 2 additional USB ports

2 x 1394 connectors

1 x 3-Pin CPU fan connector

1 x 3-Pin Power fan connector

1 x 3-Pin Chassis fan connector

1 x 20-pin ATX Power connector

1 x 4-pin CPU Power connector

1 x 4-pin EZ_Plug connector

4 x IDE connectors

1 x FDD Floppy connector

1 x IDE LED connector

1 x Chassis intrusion connector

1 x SMBus connector

1 x SIR connector

1 x Smartcon connector

1 x AFPanel connector

1 x S/PDIF In/Out connector

1 x ASUS iPanel connector

1 x Gameport/Midi connector

1 x CD / 1 x AUX / 1 x Modem audio connectors

1 x Front System Panel connector

1 x Front Audio Panel connector

1 x DSW1 Switch

1 x DSW2 Switch

1 x Over_Volt Jumper

1 x KBPWR Jumper

1 x USBPWR_12 Jumper

1 x USBPWR_34 Jumper

1 x USBPWR_56 Jumper

1 x PCISMB_SW1 Jumper

1 x PCISMB_SW2 Jumper

1 x RAID_SW Jumper

1 x JEN Jumper

1 x 1394_SW Jumper

1 x BCS1 Jumper

1 x BCS2 Jumper

BIOS features

4Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, ASUS MyLogo2

Industry standard

PCI 2.2, USB 2.0, USB 1.1

Manageability

DMI 2.0, WOL/WOR by PME, chassis intrusion, SMBus

Form Factor

ATX form factor; 12 in x 9.6 in (30.5 cm x 24.5 cm)

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
